47

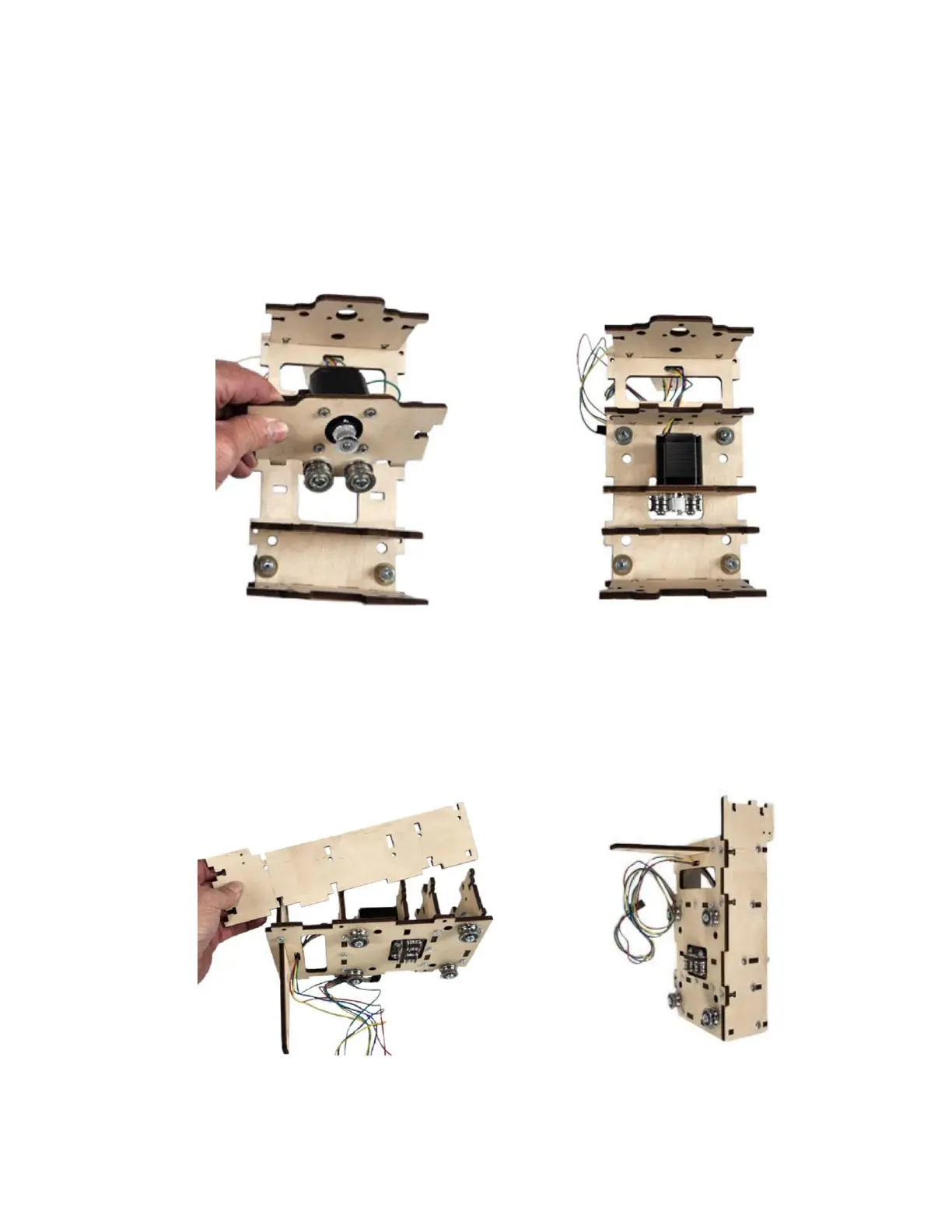

Step 2f With most of the wire threaded through the Y
Carriage Assembly, align the tabs of the Z
Stepper Motor Assembly with the
corresponding slots in the Carriage Frame
Assembly.
Step 2g Align the tabs and slots of the Carriage Side
Support (QY5) with the Y Carriage Frame
Assembly and secure eight M4 x 16 Machine
Screws and Nuts.
Repeat to attach the other Carriage Side Support.
