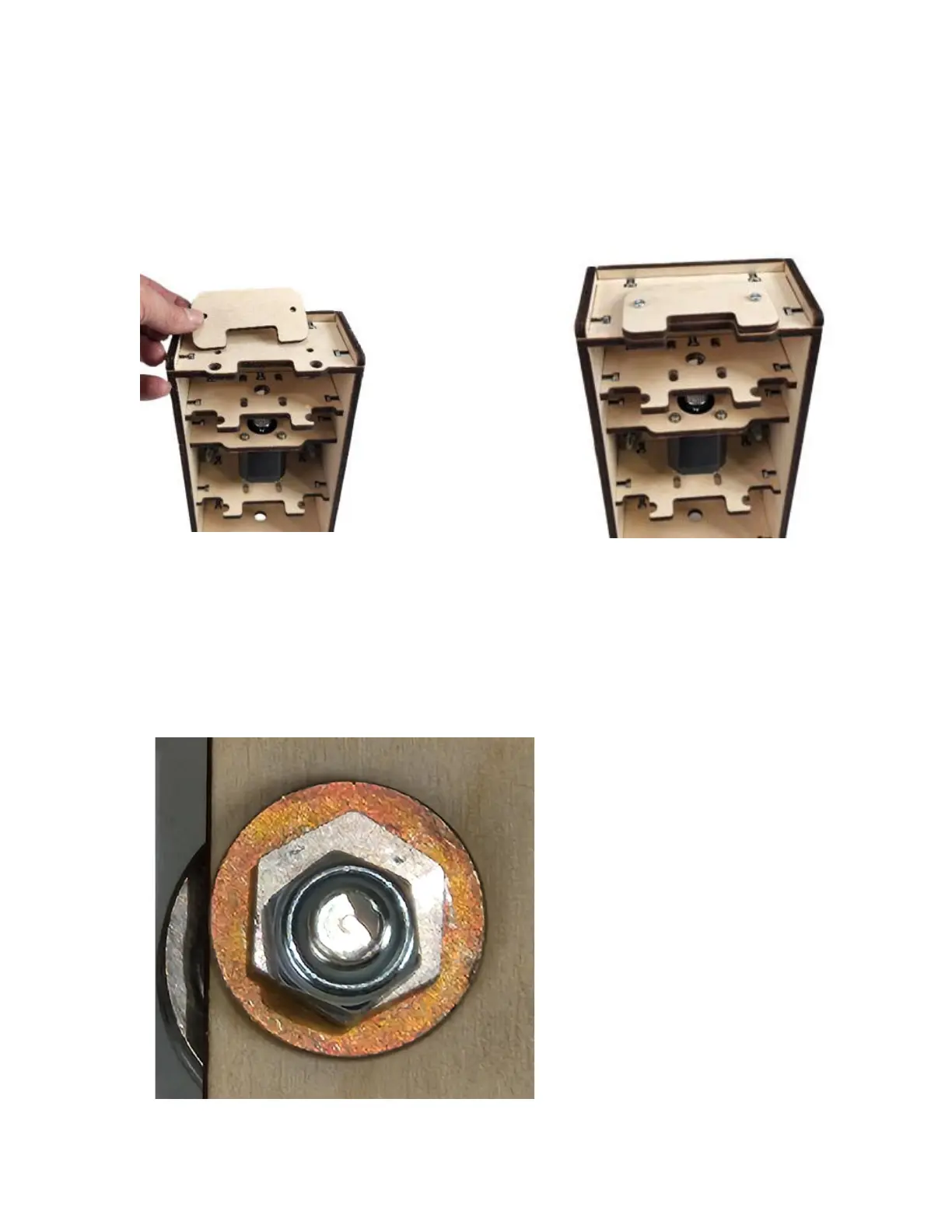

Step 2h Attach the Z Rail Stop (QY6) to the

bottom of the Y Carriage Frame Assembly and

secure with two M4 x 20 Machine Screws (H98) and

Lock Nuts (H47).

Step 3 Attaching the Z Carriage to the Y Carriage Frame

Assembly

This closeup view shows the

Locknut tightened against the

Eccentic Spacer. Note the

space between the faces of the

locknut and those of the

Eccentric Spacer. This will

indicate the position of the

SG20U Bearing and the Rail.
