BobsCNC QUANTUM MINI User Manual

49

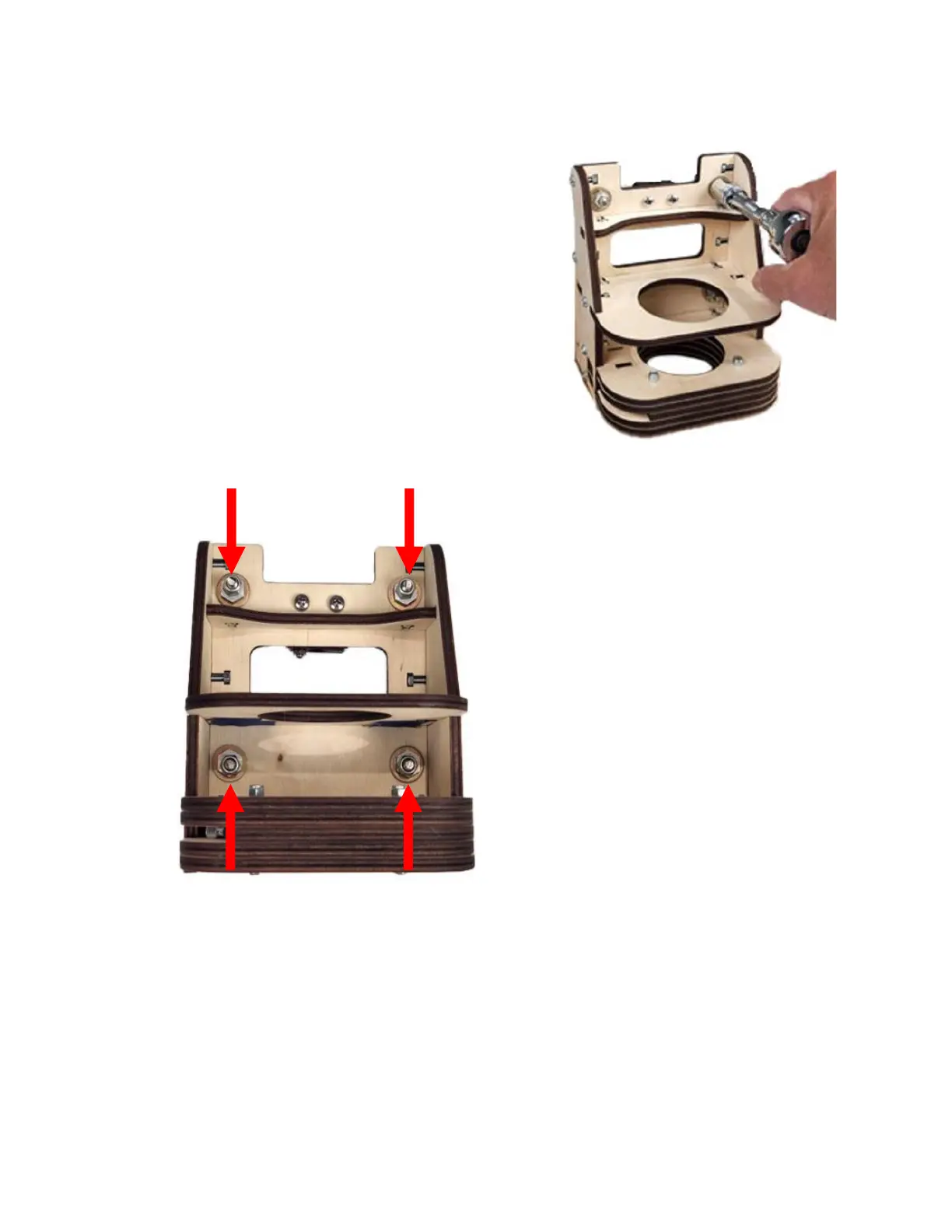

Step 3a With the Locknut
firmly snugged
against the face of
the Eccentric Spacer
use a 13mm socket
to turn just the
Eccentric Spacer as
shown below.
IMPORTANT
Make sure the points on
the wide edge of the
Eccentric Spacers of the
upper Bearings are
pointing down and the
wide point of the lower
Eccentric Spacers are
pointing up as shown.
