53

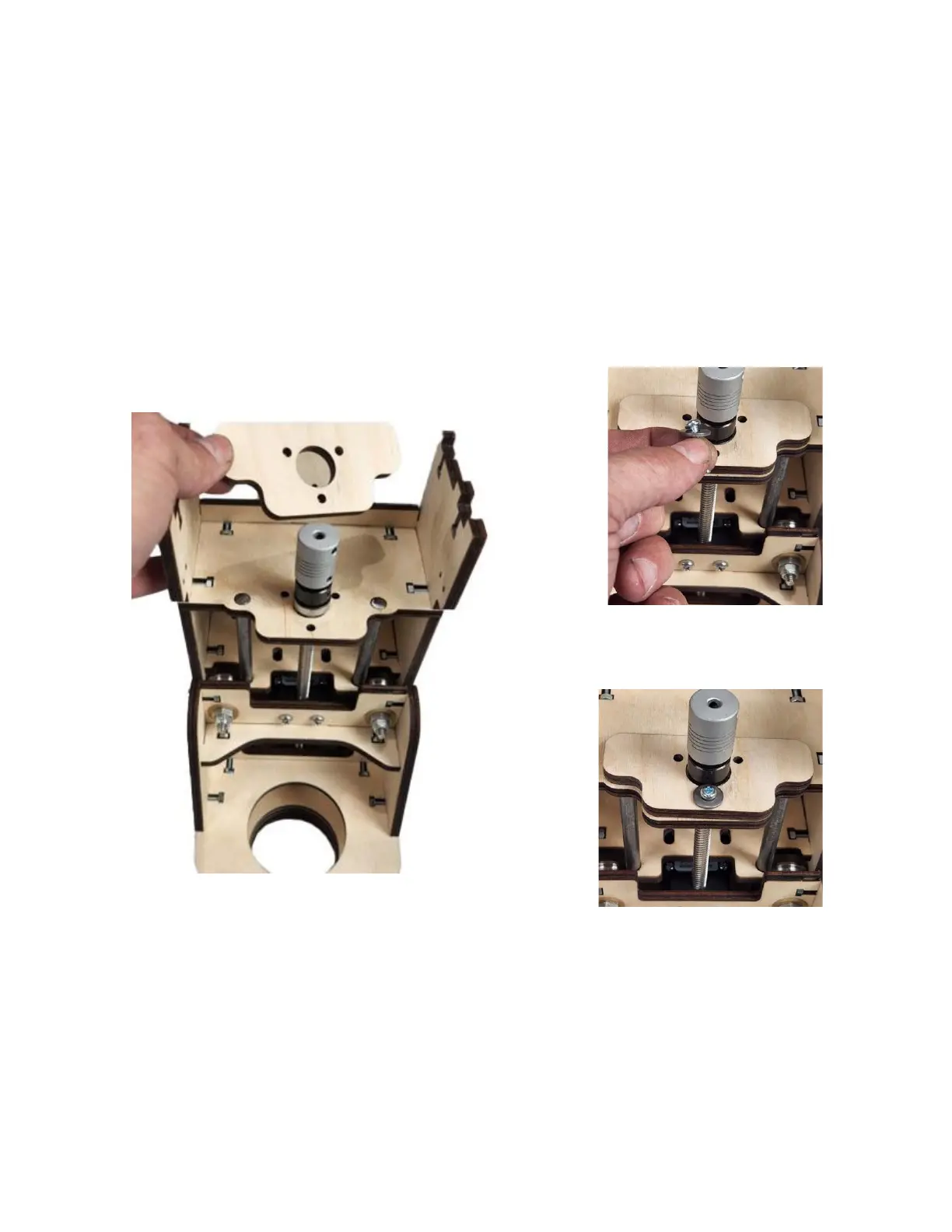

Step 4b Place the Bearing Retainer Plate (QY3)
over the ACME Screw Assembly and
secure with three M4 x 20 (H98)
Machine Screws and Bearing Retainer
Washers (H57), and M4 Locknuts (H47).
