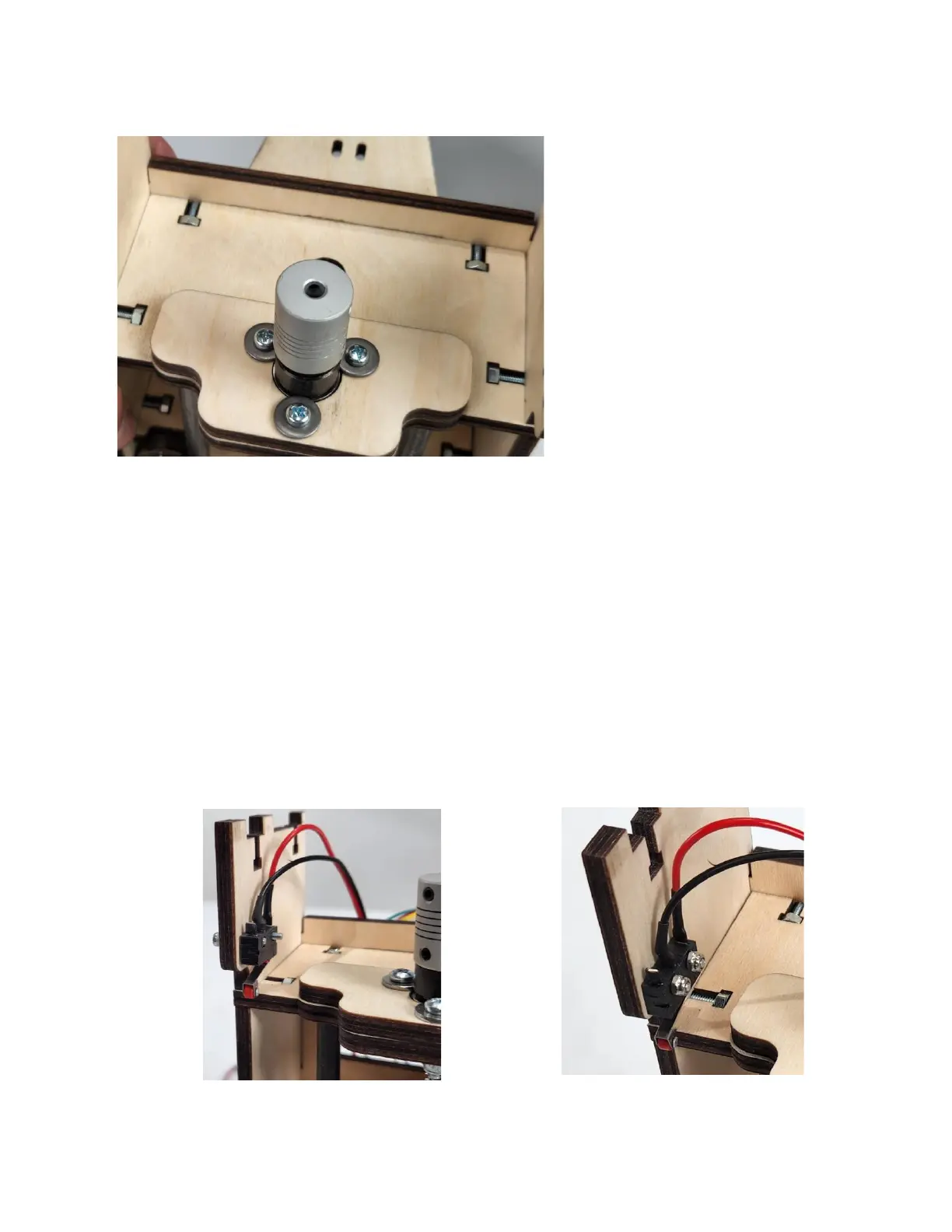

Step 5 Installing the Z Home Switch.

Step 5a Align Home Switch Arm down as shown.

Secure Home Switch with two M2.5 X 16

Machine Screws (H27) and Locking Nuts

(H43). Install the Screws so that the heads are

outside the Carriage Side Support with Lock

Nuts against the switch housing. Do not over

tighten.

The Bearing Retainer

Plate (QY3) is

designed so that the

Bearing Retainer

Washers cover the

Bearing race to hold it

in place.
