55
Step 5b Route the Home Switch wire down
through the access hole and through
the elongated hole in the Carriage
Frame as shown.

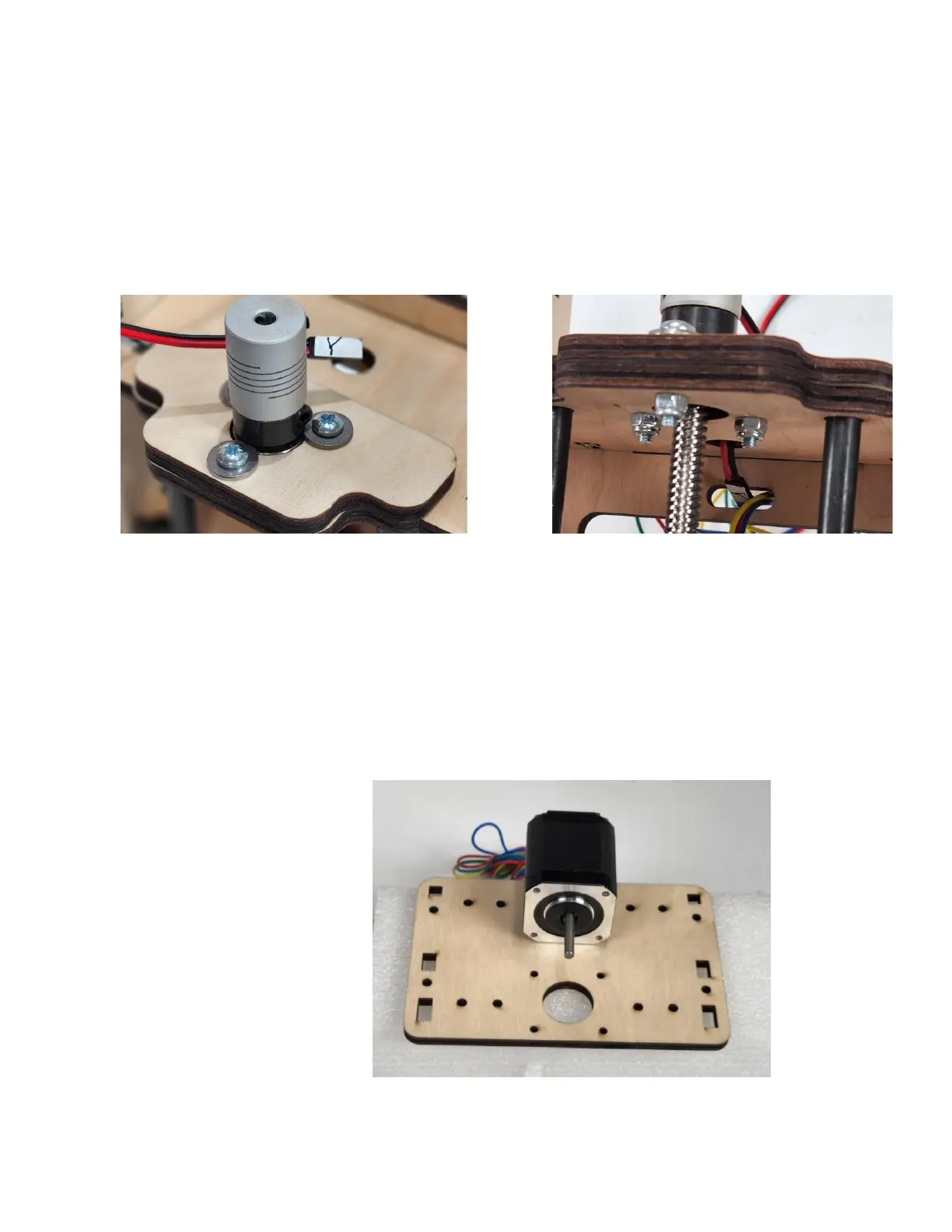

Step 6 Installing the Z Stepper Motor.
Step 6a Mount the Z Stepper Motor through the
large hole in the (QY1) Z Stepper Motor
Mount. Secure four M3 x 10 Machine
Screws (H37) with M3 Washers (H88).
