64

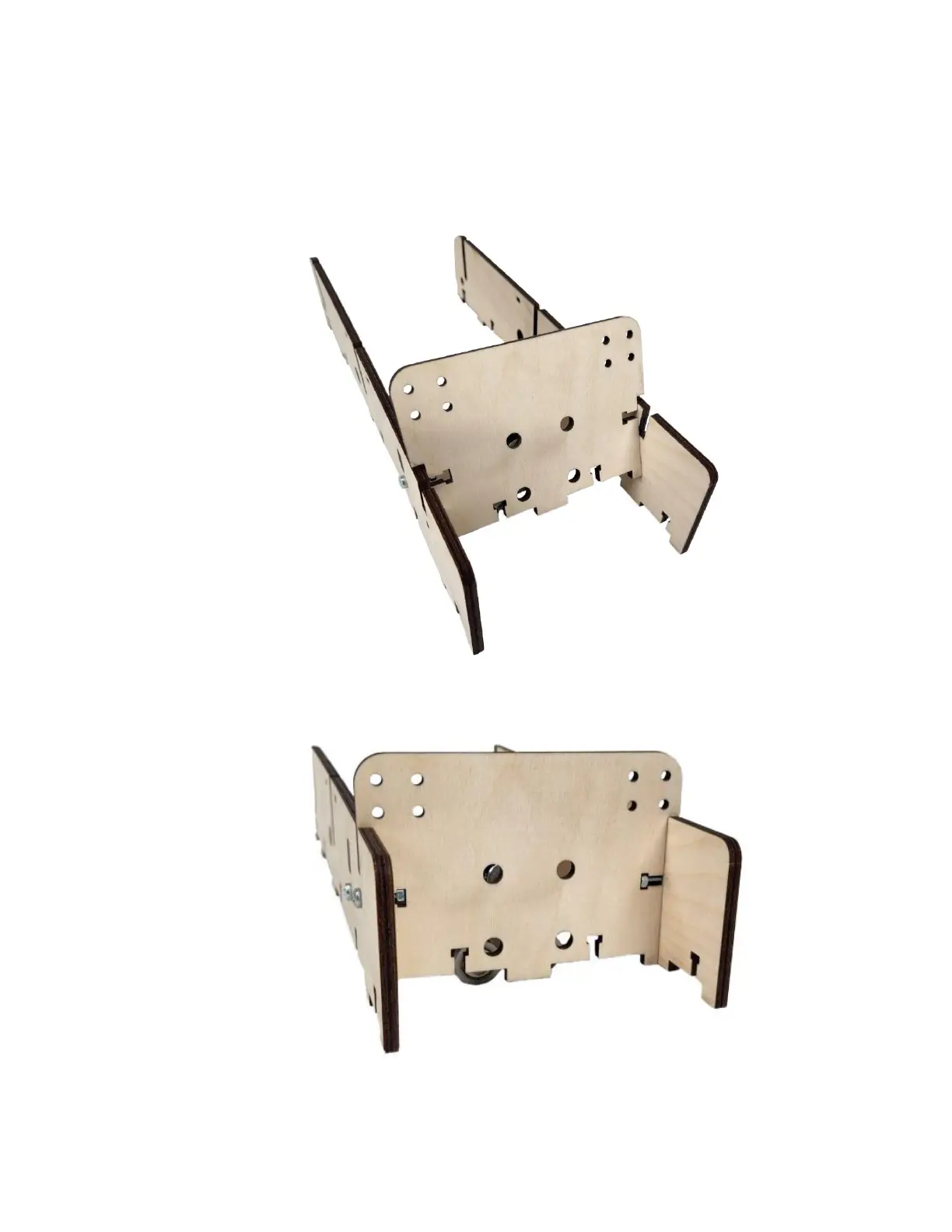

Step 1c Align the tabs of the Gantry Lower Side Brace
(QG10) and slide it into the slots in the
Assembly as shown.
