63

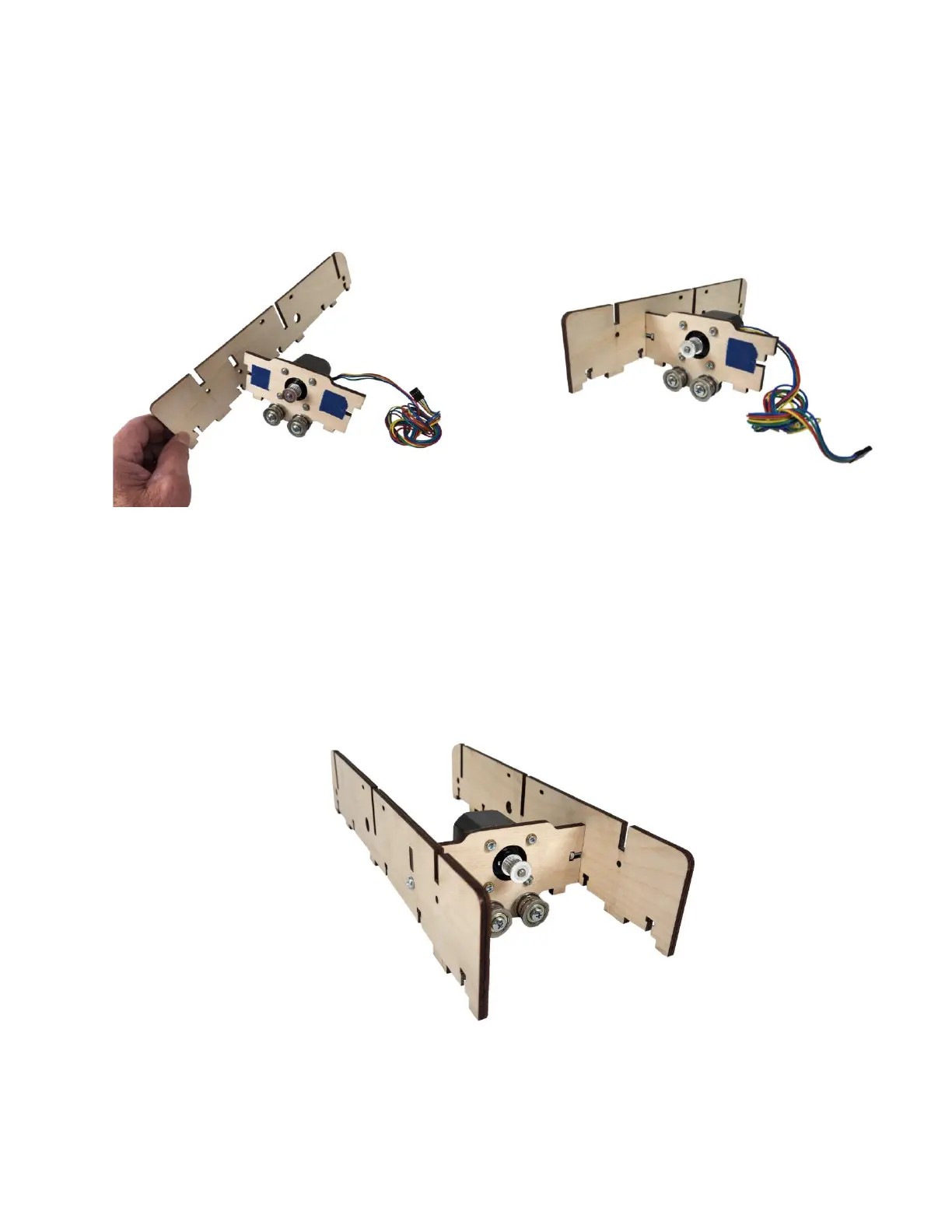

Step 1b Align the tabs of the Stepper Motor Mount
Assembly with the slots in the Gantry Side
Support (QG2) and secure with one M4 x 16
Machine Screw.
Repeat to install the other Gantry Side
Support. Remove the tape after tightening.
