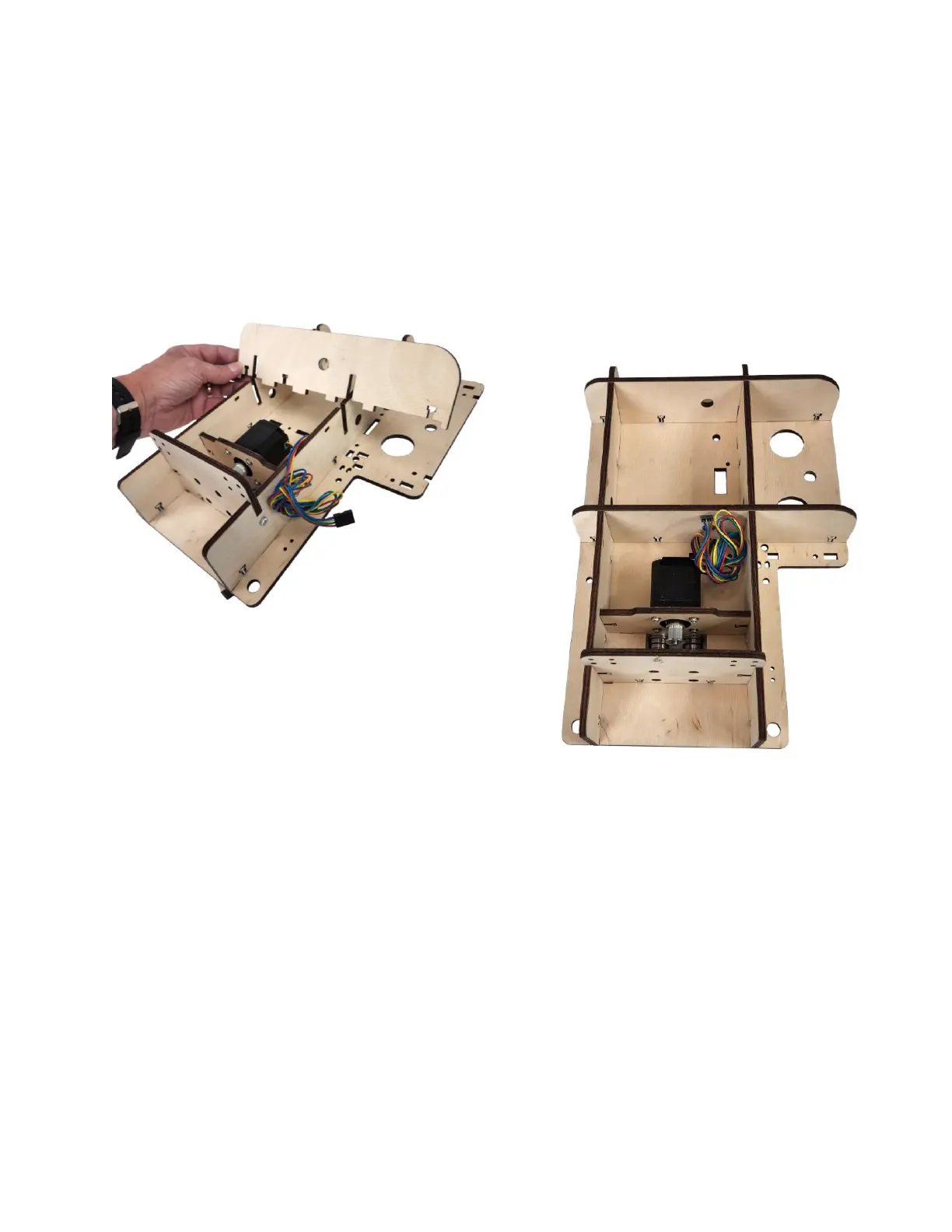

Step 1e Align the slots of the two Gantry Cross Braces
(QG3) with the slots in the Assembly.
Carefully insert the tabs in the corresponding
slots and secure each with three M4 x 16
Machine Screws and Nuts.
Repeat these steps to complete the other Gantry
Side Support Assembly.
