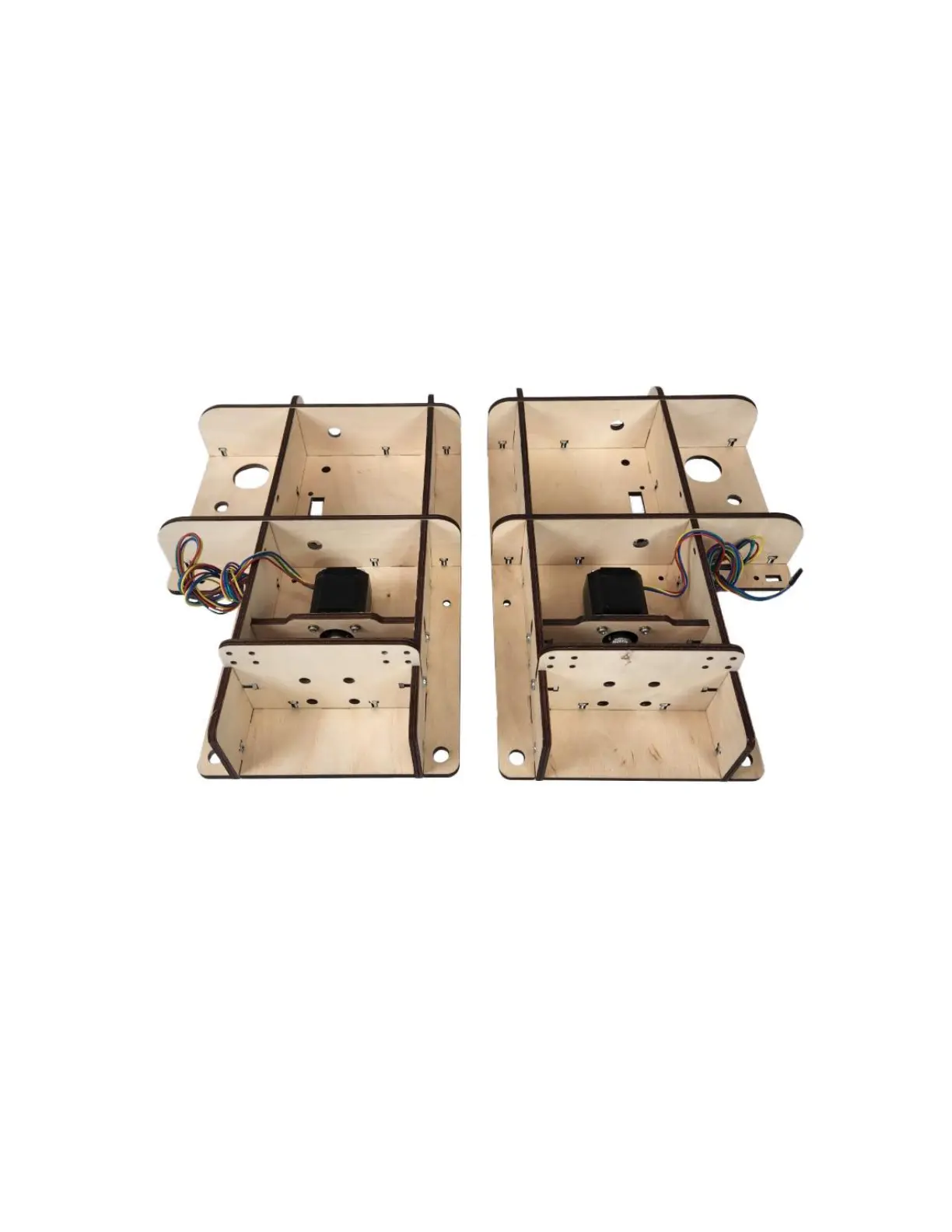

Finished Gantry Side Assemblies
Each completed Assembly is a mirrored copy of the other. It is
essential that the Stepper Motor wires are oriented as shown.
