BobsCNC QUANTUM MINI - Page 72

71

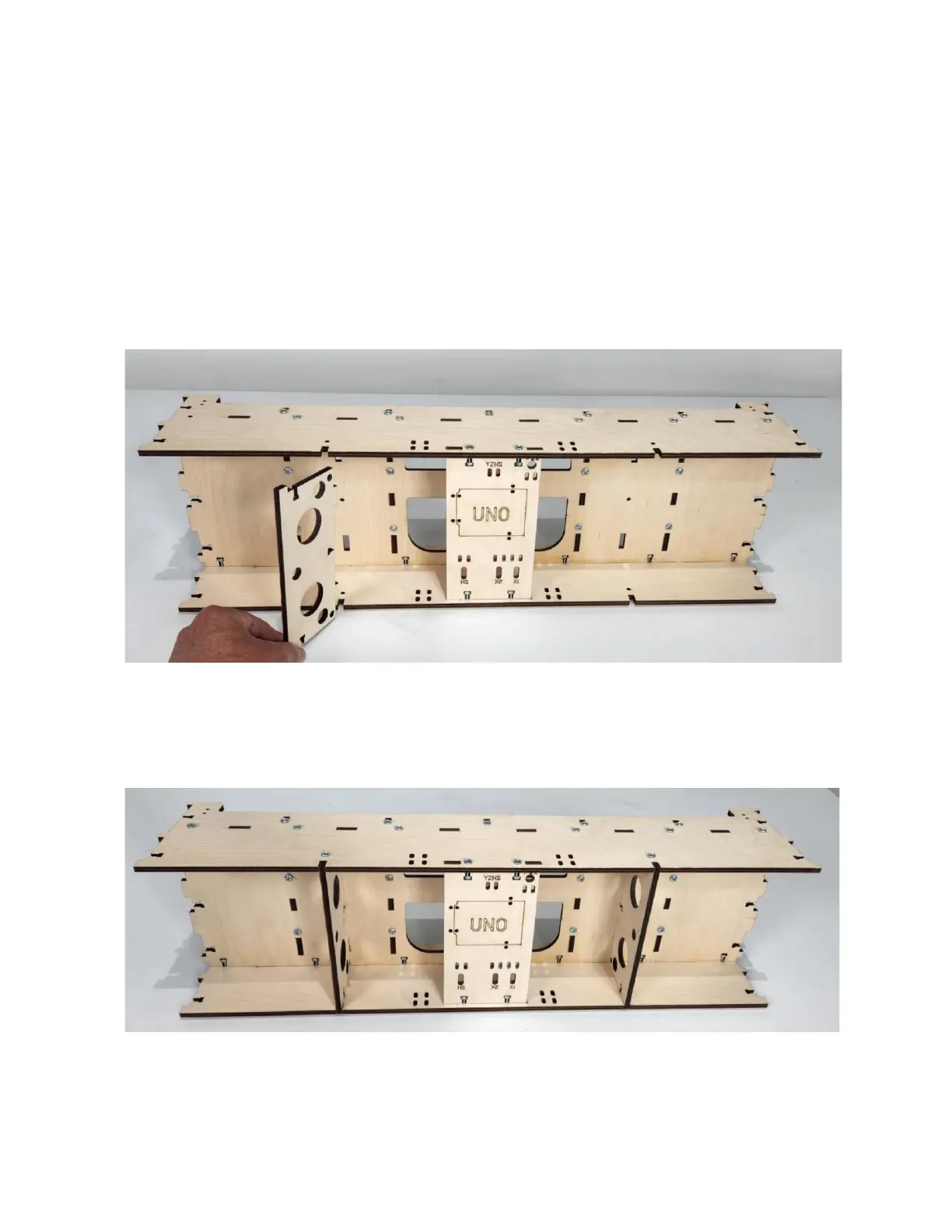

Step 2e Align and insert the tabs of the two Gantry
Back Braces (QG6) into the slots of the Gantry
Frame Assembly and secure each with three
M4 x 16 Machine Screws and Nuts as shown.
Repeat to install both braces.
