72

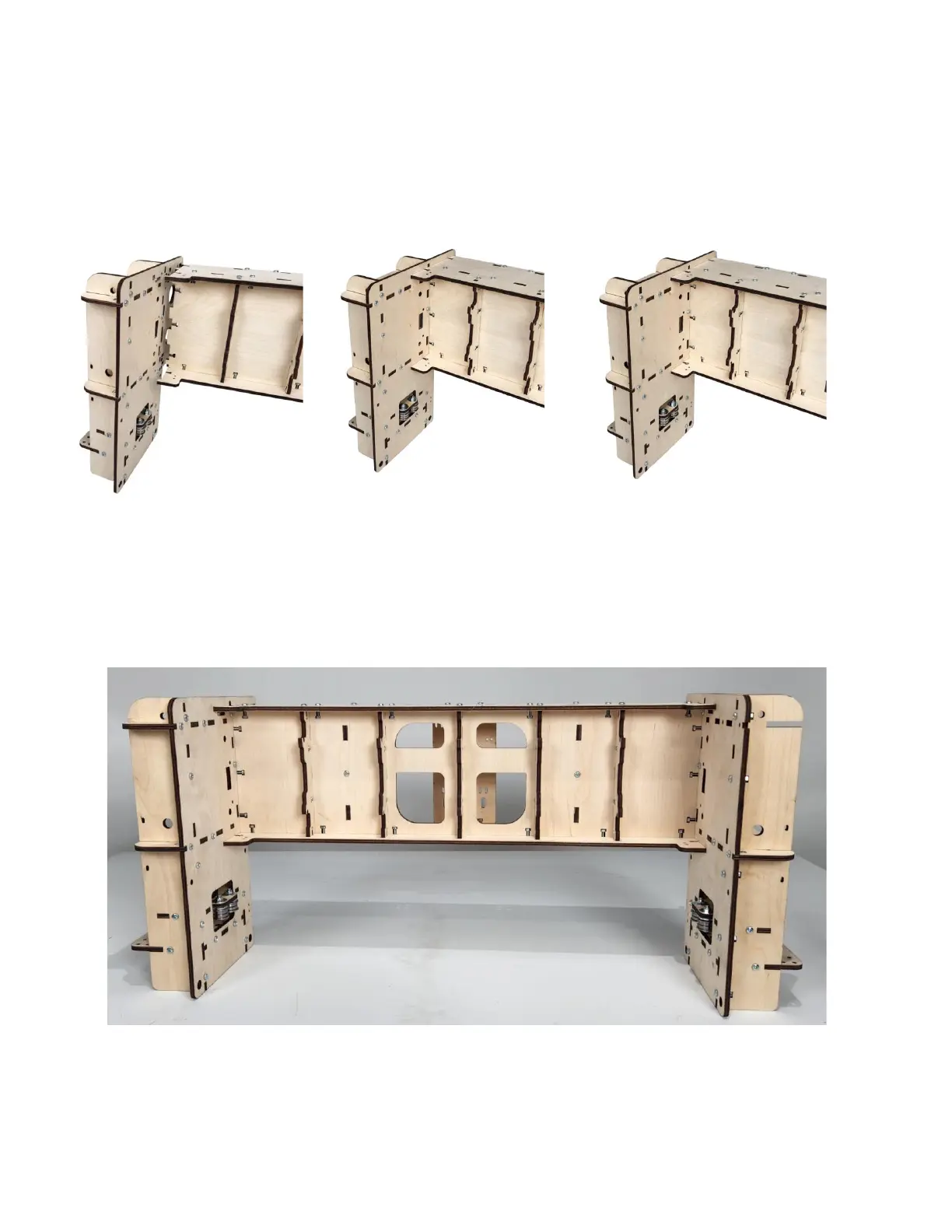

Step 2f Align and fit the tabs of the Gantry Assembly into the
slots of the left Gantry Side Assembly and secure with
seven M4 x 16 Machine Screws and Nuts.
Repeat for the right side
Completed Assembly.
