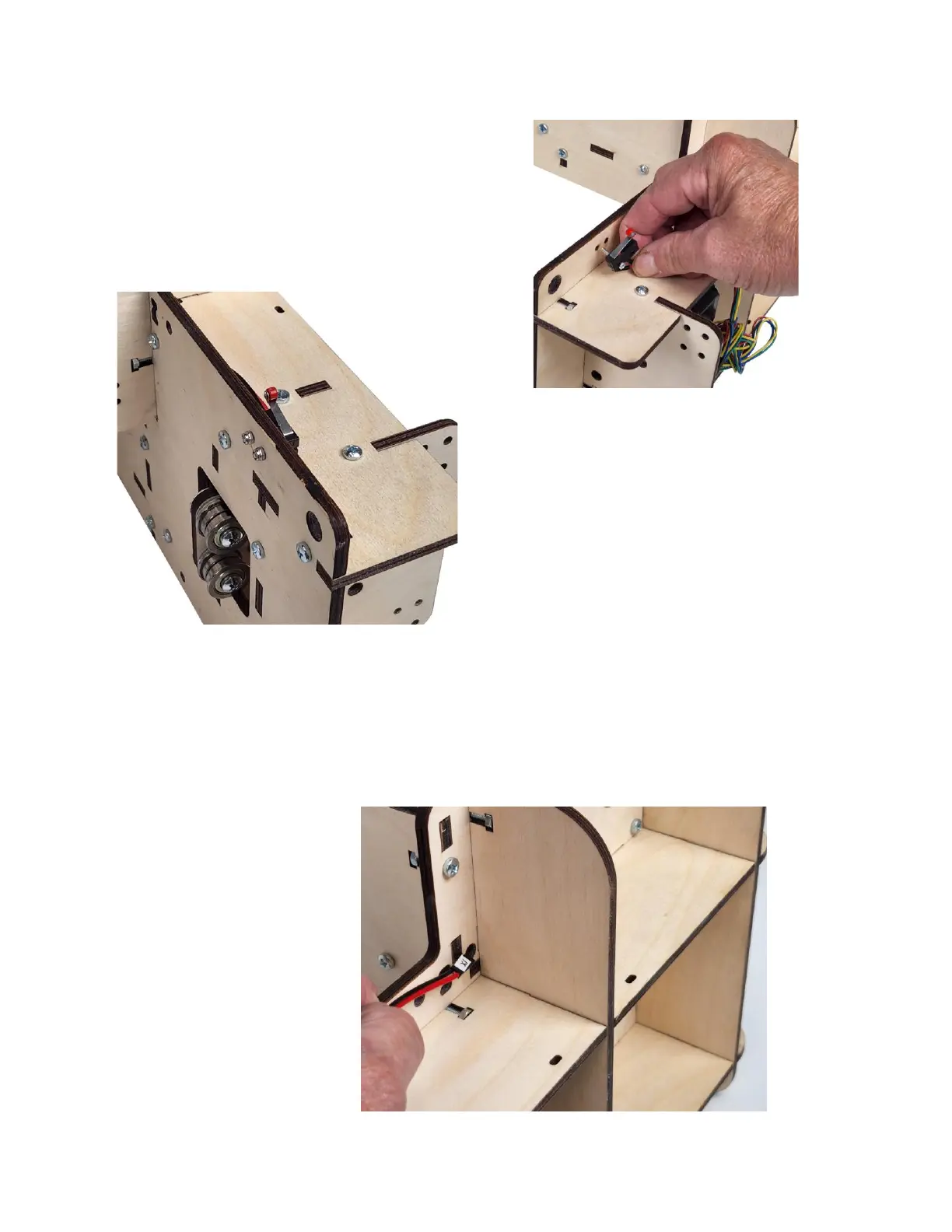

Attach each Home Switch with two
M 2.5 X 16 Machine Screws (H27)
and M2.5 Lock Nuts (H43). Orient
the Screw Head so that it tightens
against the Switch housing.
Route the X1 Home Switch wire from the
Mount up and through the hole in the Side
Assembly, across the Gantry and through the
Controller Mount as shown
To Next Page
