75

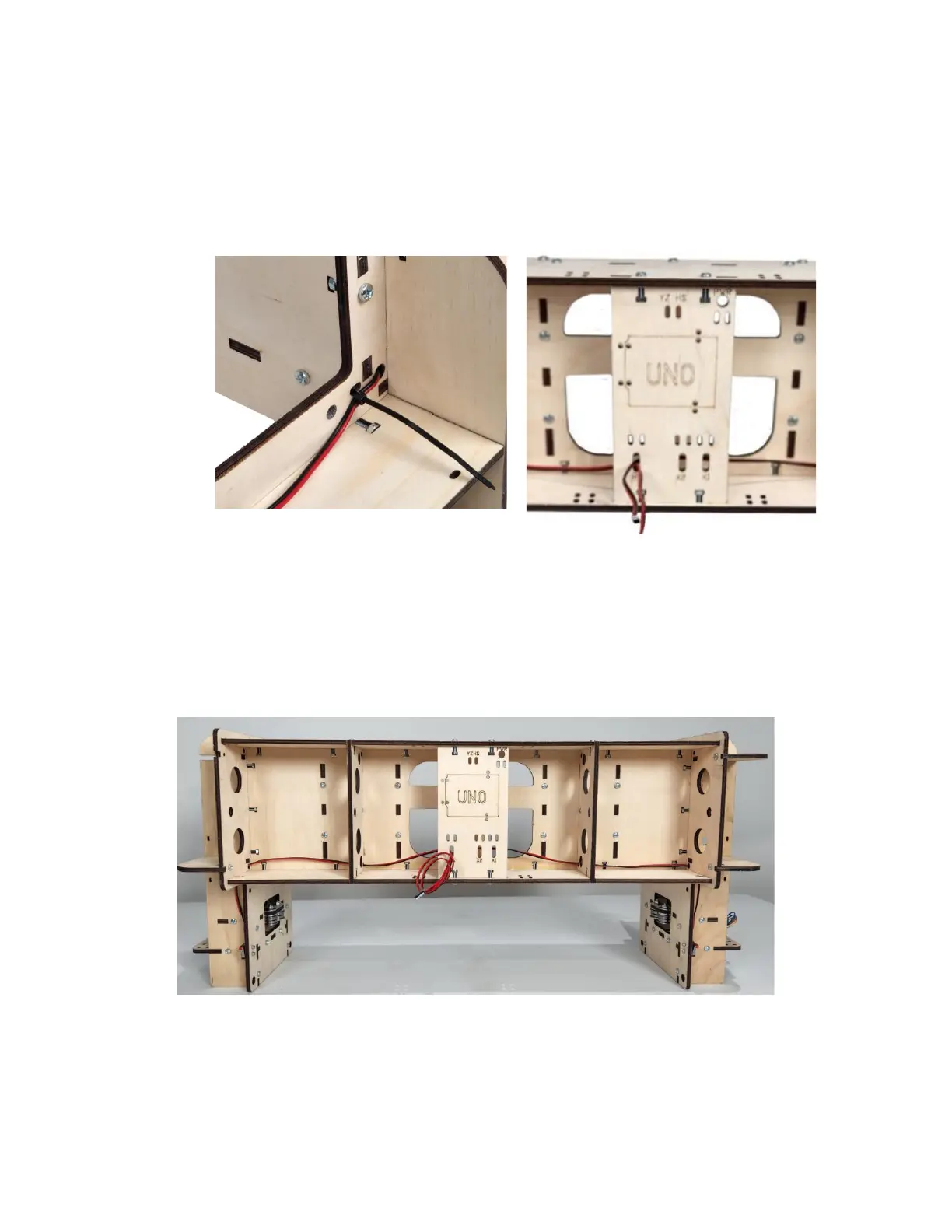

Secure wires with a Zip Tie. Trim excess
material after securing. Route the Home
Switch wire across the Gantry and through the
Controller Mount as shown.
Follow the same procedure to install X2 Home Switch.
