76

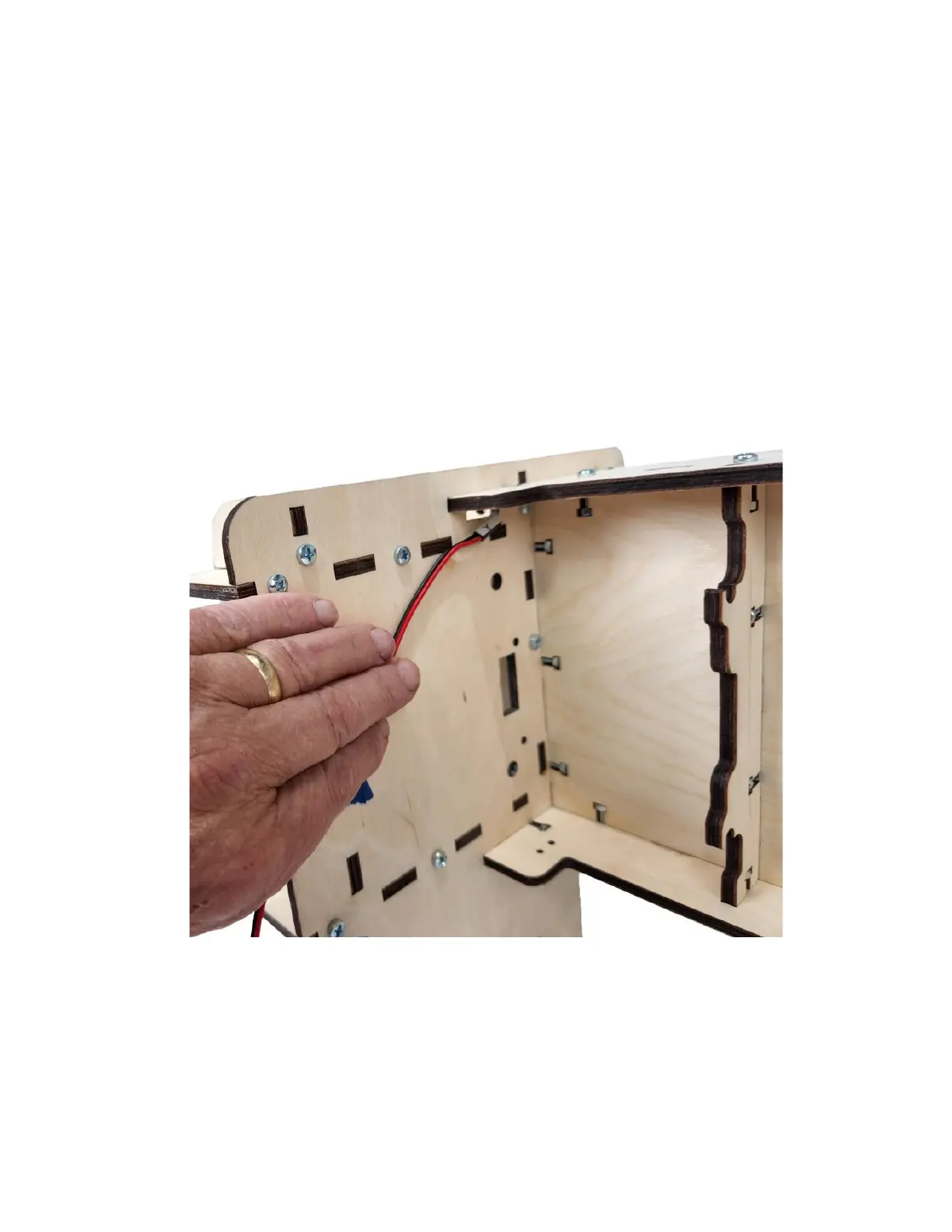

Step 3b Before installing the “Y” Home Switch route
the Home Switch wire through the rectangular
opening in the upper front left corner as
shown.
Run the wire through the small hole in the top
of the Side Assembly and through the Gantry
Side Support.
