BobsCNC QUANTUM MINI - Page 92

91

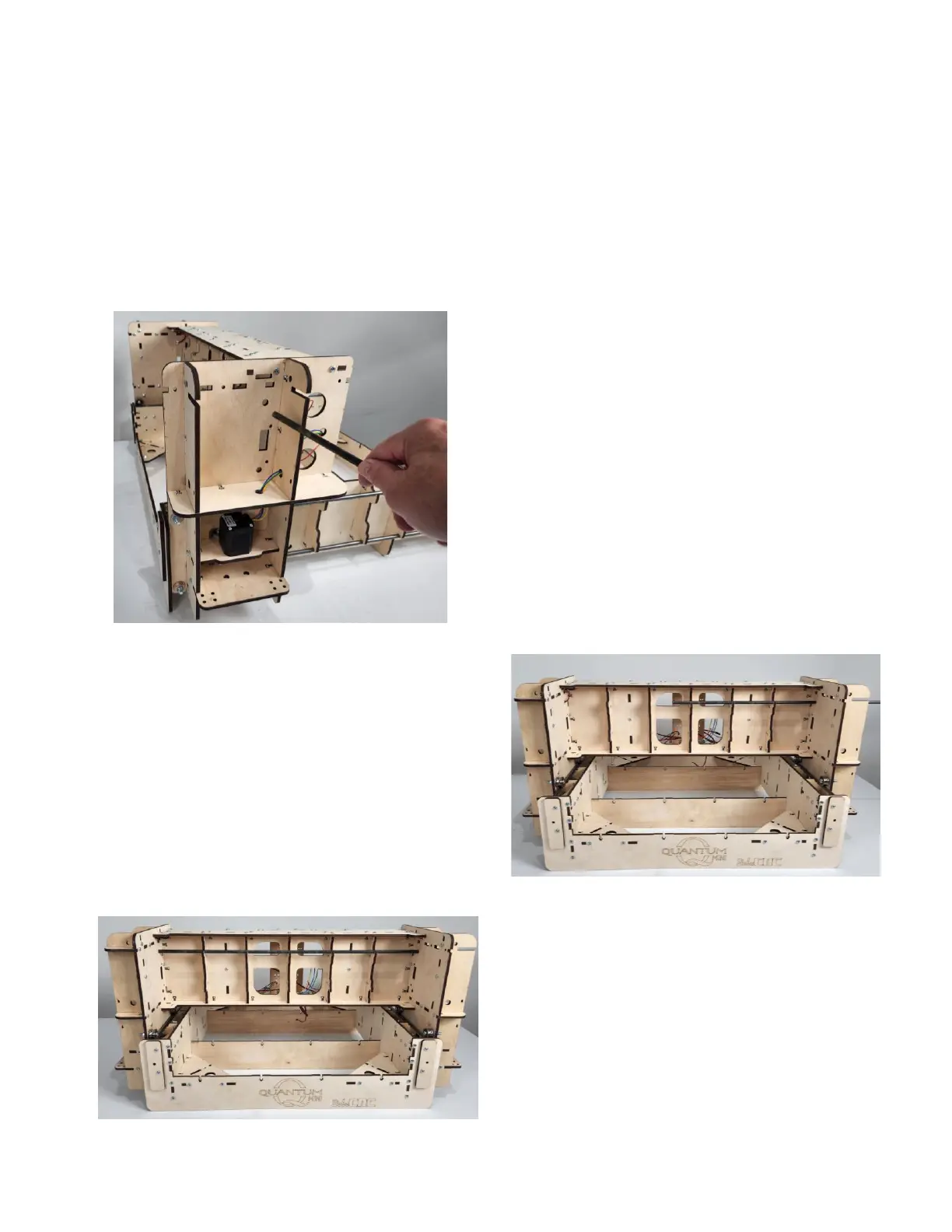

Step 2 Attaching the Y Carriage to the Gantry Assembly.
Step 2a Insert the upper Rail (H53) through the Gantry
Side. Rotate the Rail as it passes through
Gantry Rail Supports and is fully seated in the
opposite Gantry Side
