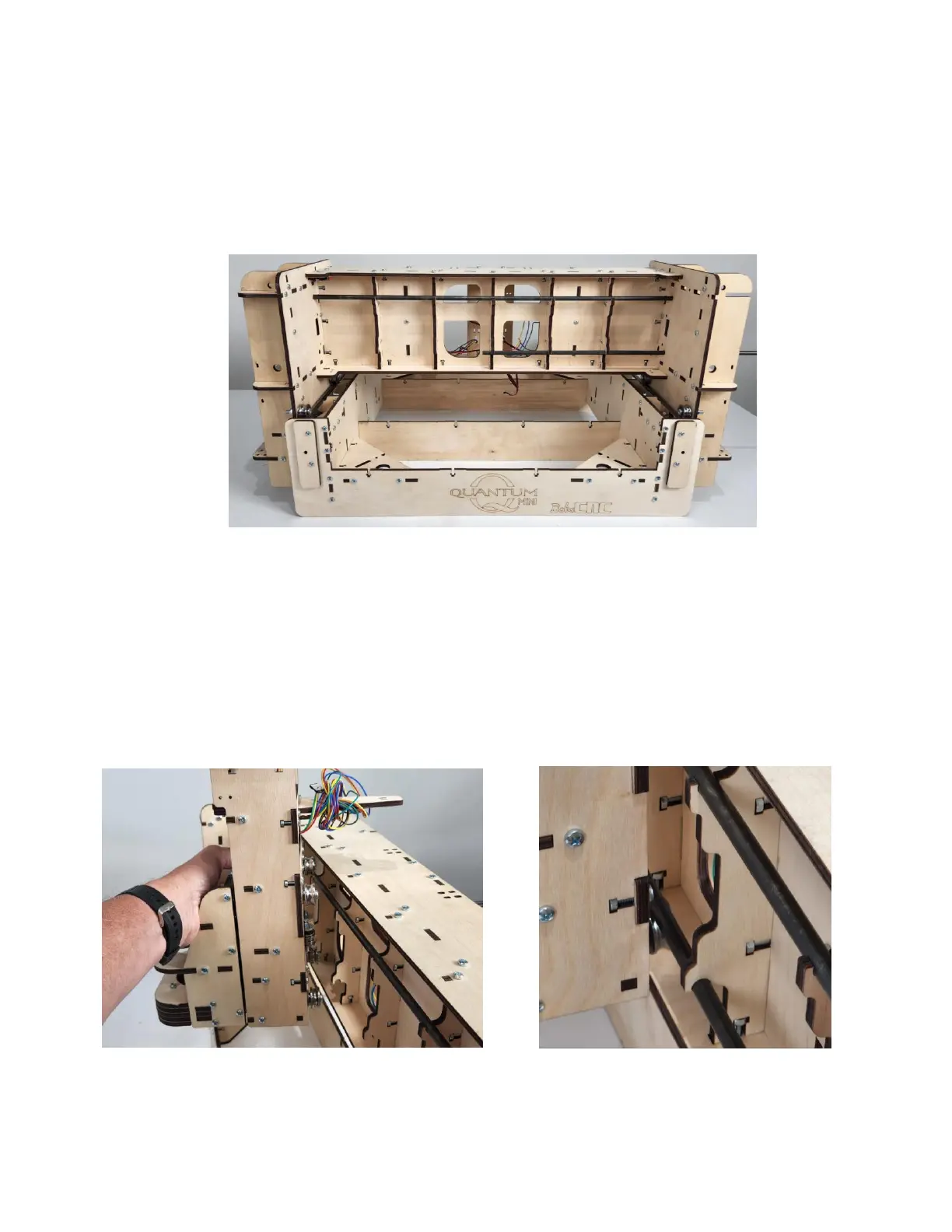

Step 2b Insert the lower Rail through the Gantry side,
across the Rail Supports but only partially
across the Gantry.
Step 2c Hang the upper Bearings of the Y Carriage on
the Upper Rail. Then finish threading the
lower Rail across both Lower Bearings, until it
is fully seated in the opposite Gantry side.
