There are four XY Belt retainers (QR3) used for each of the
three sets of the GT2 9mm Belt Assemblies
Step 3 Attaching the GT2 9mm Drive Belts.
Step 3a Cut three lengths of the GT2 9mm Belt 27
inches long.

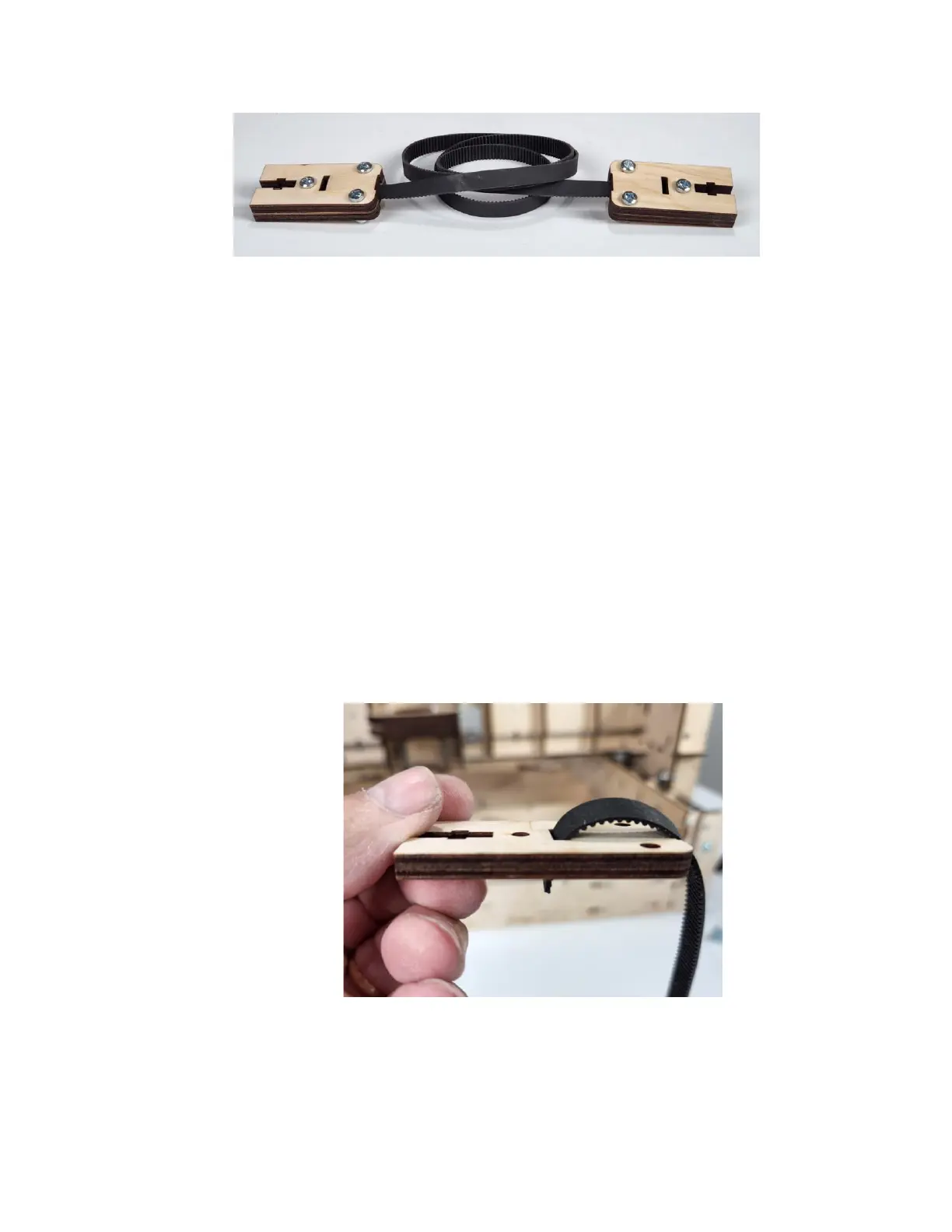

Step 3b With the teeth of the Belt facing down, thread
one end of the 9mm Belt through the
rectangular slot in a XY Belt Retainer (QR3).
