BobsCNC QUANTUM MINI - Page 96

95

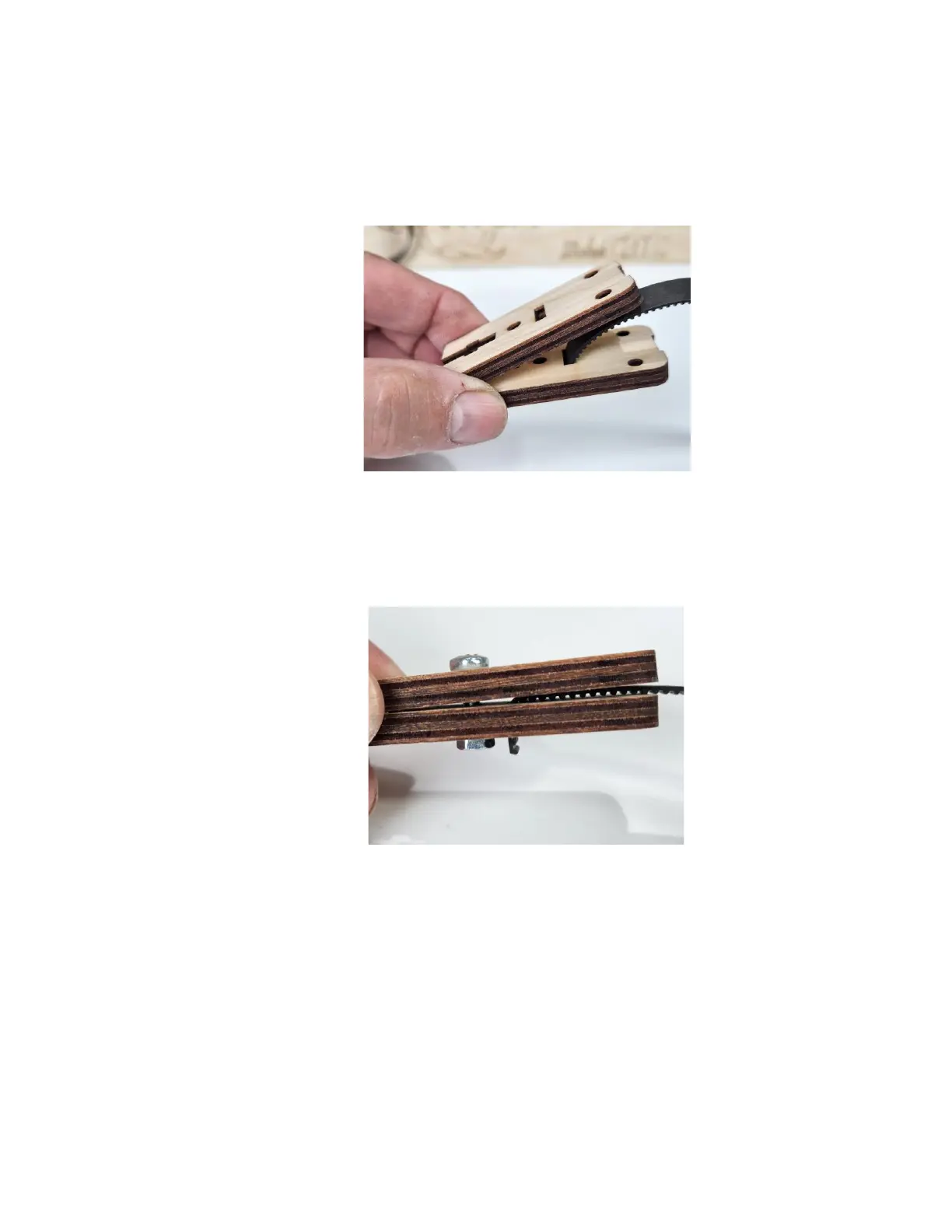

Step 3c Cover the Belt with the teeth still facing down
with the second Belt Retainer, as shown.
Step 3d Sandwich the Belt between the two Belt
Retainers and bolt them together with three
M4 x 16 Machine Screws and Nuts.
