Bodet Profil 930 - Installation; Single Face indoor clock; Single Face outdoor clock

4
DHF 230V HM = the clock is radio-synchronised by a DHF transmitter ; it is supplied
in 240 VAC.
Nota : all these versions are not available for all Prol or TGV 930/940 models. Contact your
Bodet authorised dealer.
1.2 Cleaning
Use an antistatic product of similar type to the one shipped in the original packaging. Never use
alcohol, acetone or any other solvent liable to damage the casing and lter on your clock.
II - INSTALLATION
Select the location where your clock is to be installed, ensuring for the model with radio
synchronisation that radio reception is correct. The radio receiver clock should be installed in a
place that is free from electrical interference (cathode tube, transformers, etc.). Avoid xing the
clock directly to a metal or reinforced concrete partition or wall.
The best reception conditions are outside buildings or near by a windows.
The orientation clock (dial perpendicular to the emitter direction) towards the emitter enhances
the reception.
2.1 Single Face indoor clock
Most of the indoor clocks are simply hanged on a screw head.
- Place the screw (Ø 4) at the desired height leaving the head 3 mm outside.
- If necessary, carry out the various connections (external supply see page 5 and connection
to a time distribution network : see page 7).
- Hang the clock.
See page 12 for the dimensions.

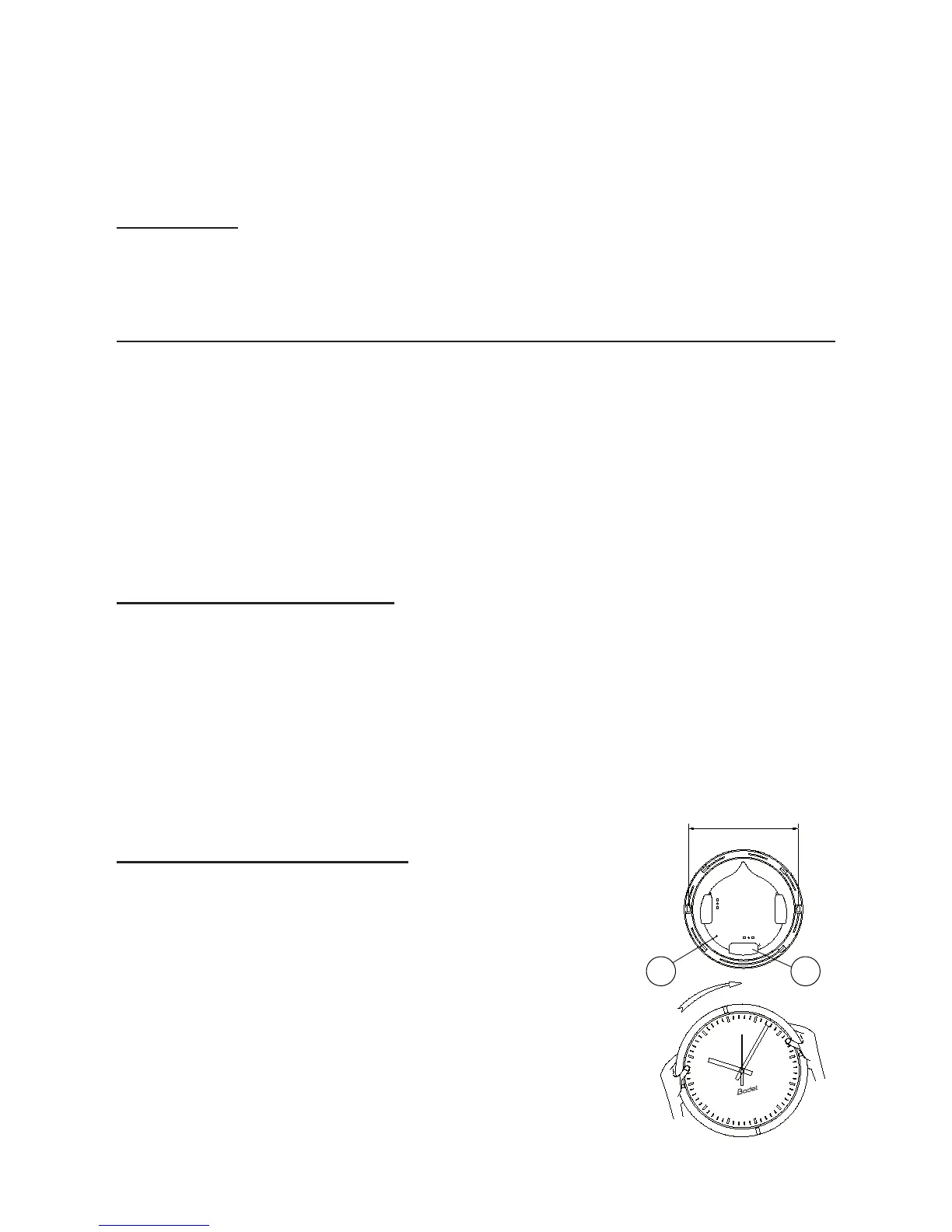

2.2 Single Face outdoor clock
- Remove the wall bracket (1) of the clock, by giving a quarter turn in
the anticlockwise.
- Run the cables through the hole (2) and t the wall bracket (1)
using 2 screws Ø6.
- - If necessary, carry out the various connections (external supply
see page and connection to a time distribution network : see page ).
- Present the clock on the wall bracket (1), then turns it a quarter turn
in the clockwise so that the clock is in the correct position.
208
1 2
Top
Low
12
11
8
9
10
7
6
1
5
4
3
2
