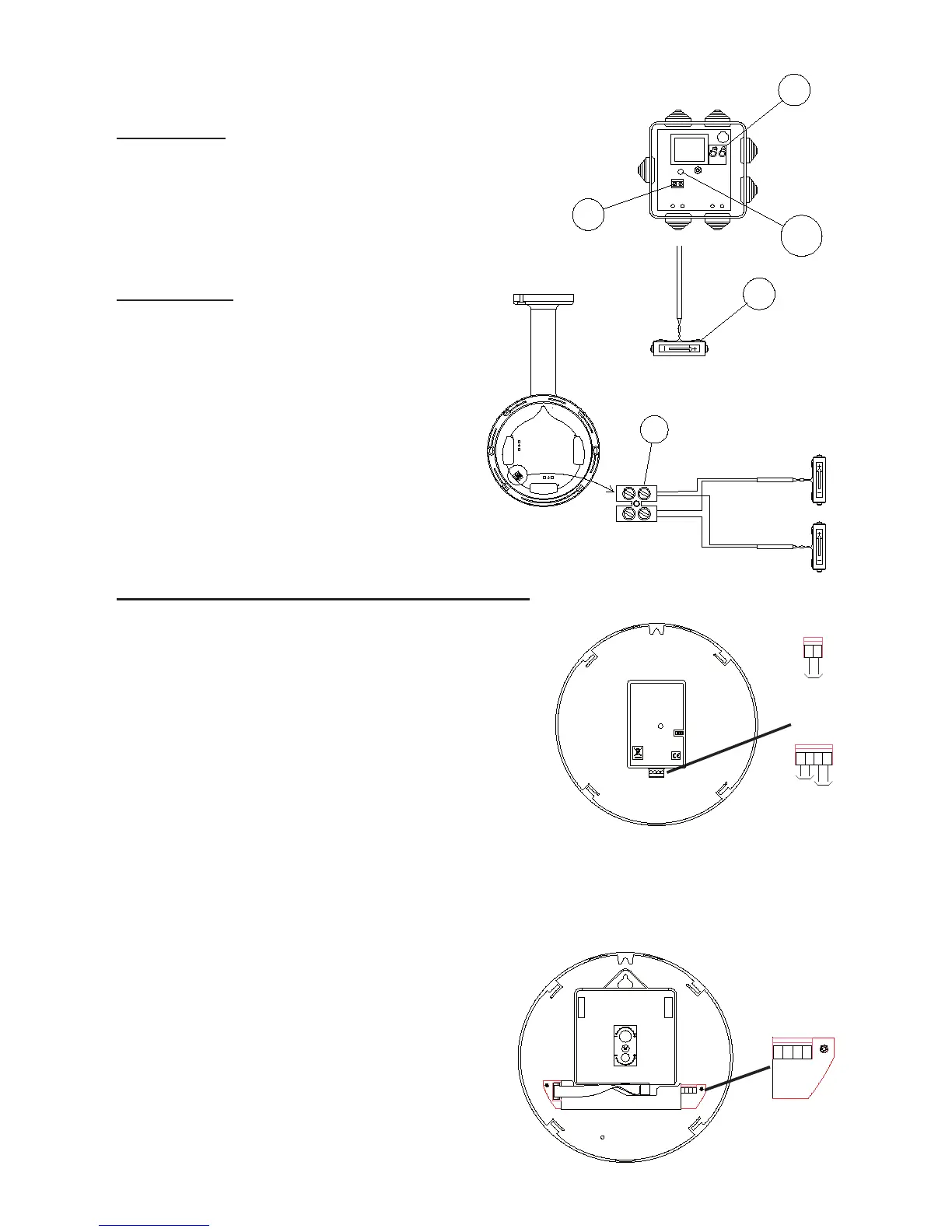

Independent Quartz clock on mains :
Single Face.
• Connect mains supply to the terminal (11) of the power
supply unit.
• Connect the telephone cable of the fake battery (13) on
terminal (12) of the power supply unit.
• Set the fake battery (13) in its location with care for polarities.
Double Face.
• Connect mains supply to the terminal (11) of the
power supply unit.
• Cut each telephone cable at 30cm from the
battery imitation on each clock, connect them on
terminal (10) of the double side bracket.
• Connect a telephone cable between
terminal (10) of the double sided bracket and
terminal (12) of the power supply unit.
• Install each battery imitation (13) in each clock
movement with care for polarities.
3.3 AFNOR Clocks with TBT power supply
3.3.1 Indoor
Connect the low voltage (TBT) power supply (6 to 24V DC)
to the connectors 1 and 2: maximum 1,5 mm
2
wire section
(5mm bare).
No polarity to respect.
Without power supply, the clock operates during more than
1 hour. If the clock has got a second hand, the latter stops
at 12h. When the clock has no more running reserve, it
stops. When the power and the AFNOR signal are back
then the clock is set to the correct time. When the power is back but not the AFNOR signal, the
hands are driven to 4h or 12h.
The indoor AFNOR clock synchronizes on the AFNOR signal except between 2:55 p.m. to
4:16 p.m. to avoid disturbance on the control of its hands’ position.
3.3.2 Oudoor
Connect the low voltage (TBT) power supply
(6 to 24V AC/DC) to the connectors 1 and 2:
maximum 1,5 mm
2
wire section (5mm bare).
No polarity to respect.
Nota : for the «abattoir» clocks which are pre-wired,
connect the power supply to the terminal block, white
wire (-) and brown wire (+).
In case of power cut the time is memorised.
