Bodet Profil 930 - ½ Minute and Minute Serial Receiver (Automatically Radio Synchronized by the BT Radio); Seconde 24 V;; Receiver

8
½ minute and minute serial receiver (Automatically radio synchronized
by the BT radio).

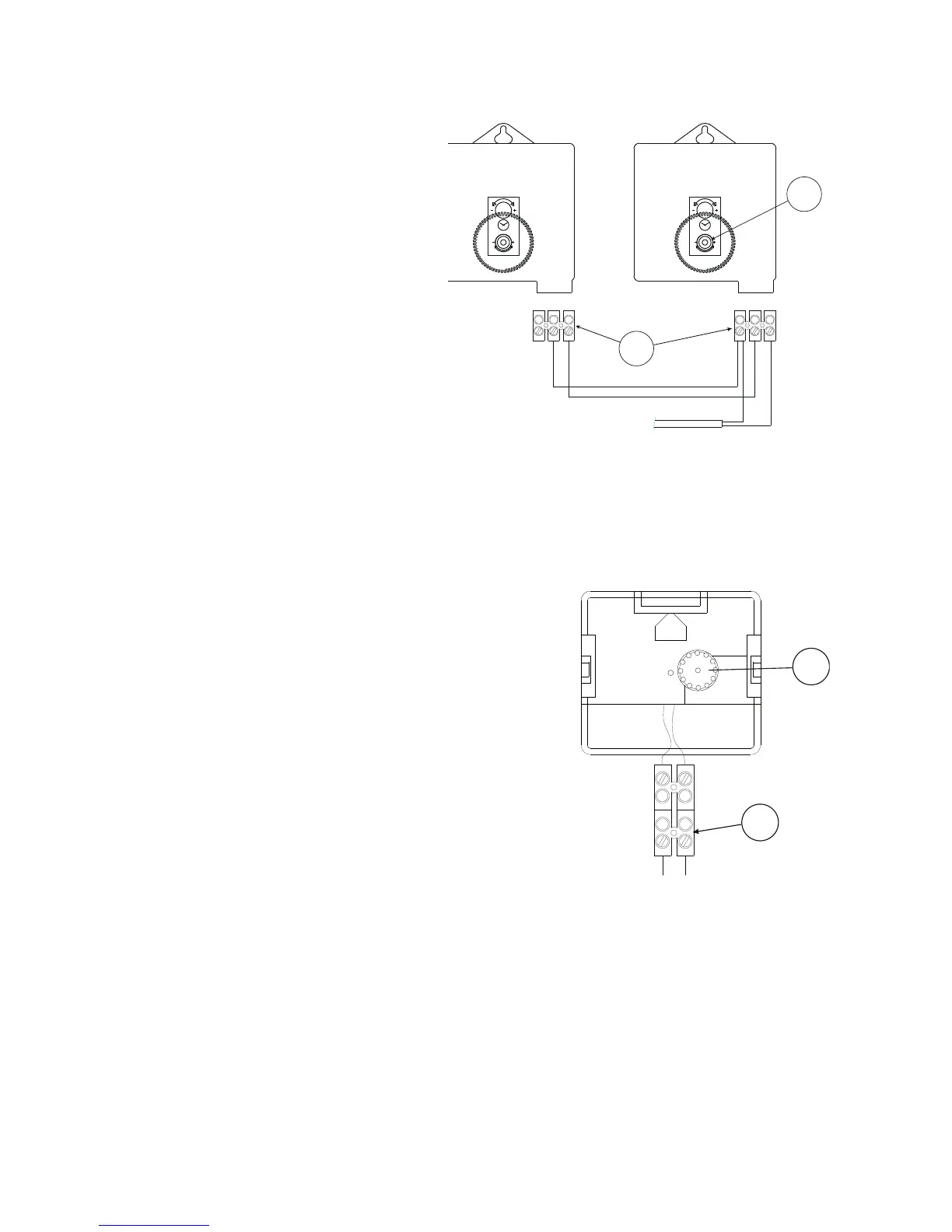

- Connect the time distribution network to
terminals 1 and 2 on the terminal strip (3).
- The terminal 3 of the terminal strip (3) is
available. You can use it to connect a double
side clock following the diagram opposite.
To insure the continuation of the serial
distribution network, (to avoid to cut the
serial line when a slave clock is disconnect)
connect the 100 Ohms 1/2 Watt resistor
delivered (for 65mA).
Leave works 2 minutes.
- If the clock, or one of the clocks in case of
a double side mounting, is ½ minute (or one
minute according to the movement type)
late : stop the emitter, reverse the connection on terminal (3) and put the clock forward 1 minute
(or 2 minutes), then restart the emitter.
In fact, the same impulse is either positive or negative according to the way to connect and the
initial position of the movement, it will take or not the rst impulse.
Seconde 24V // receiver
- Connect the time distribution network to terminals 1
and 2 (4).
A time distribution network “Second” emit only impulses, so
that it is necessary to set the clock at the time of this network
with the wheel (5).
3
2 1
3
2
1
8
3
2 1
4
5
