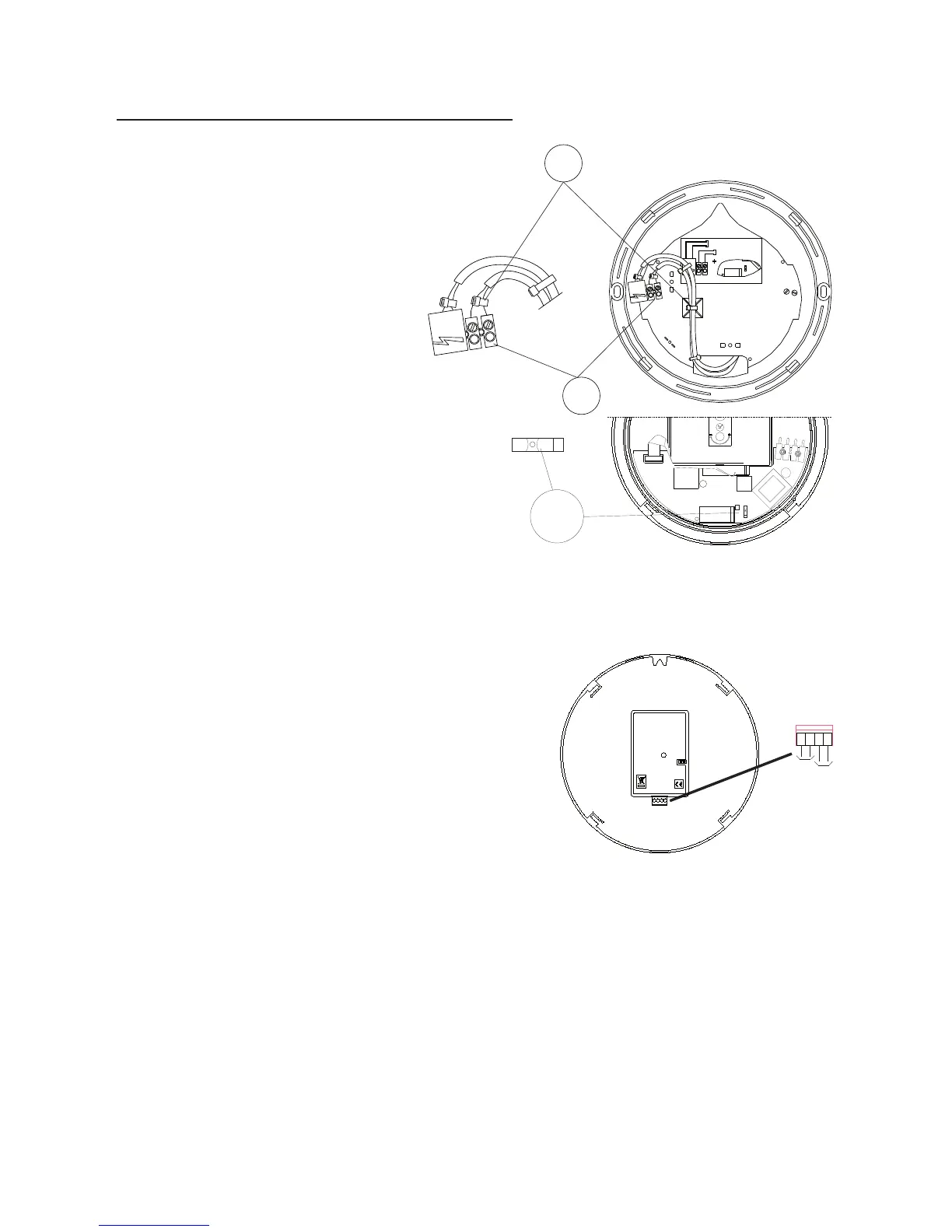

4.2. AFNOR/IRIG-B time signal reception
4.2.1 230V Slave clock
- Connect the time signal network to
terminals 1 and 2 (2).
Before xing the clock on its wall
support, check that, on the PCB, the
dip switch (D) is in the “Start” position.
Lock the wires with collars (S).
Caution : the locking must be well
done to get the electrical contact.
- When switching on power supply,
hands are set at 12.00 until the correct reception
of the time signal is achieved. After 3 successive
coherent AFNOR time signals are received, the
clock starts and automatically get on time with fast
impulses.
4.2.2 Indoor TBT 6-24V slave clock
- Connect the time signal network to terminals 3 and 4.
No polarity to respect.
Nota : for the «abattoir» clocks which are pre-wired,
connect the AFNOR to the terminal block, green and
yellow wires.
- When switching on power supply, hands are set at 4h00
or 12h00 until the correct reception of the time signal is
achieved. After 3 successive coherent time signals are
received, the clock starts and automatically gets on time
with fast impulses.
