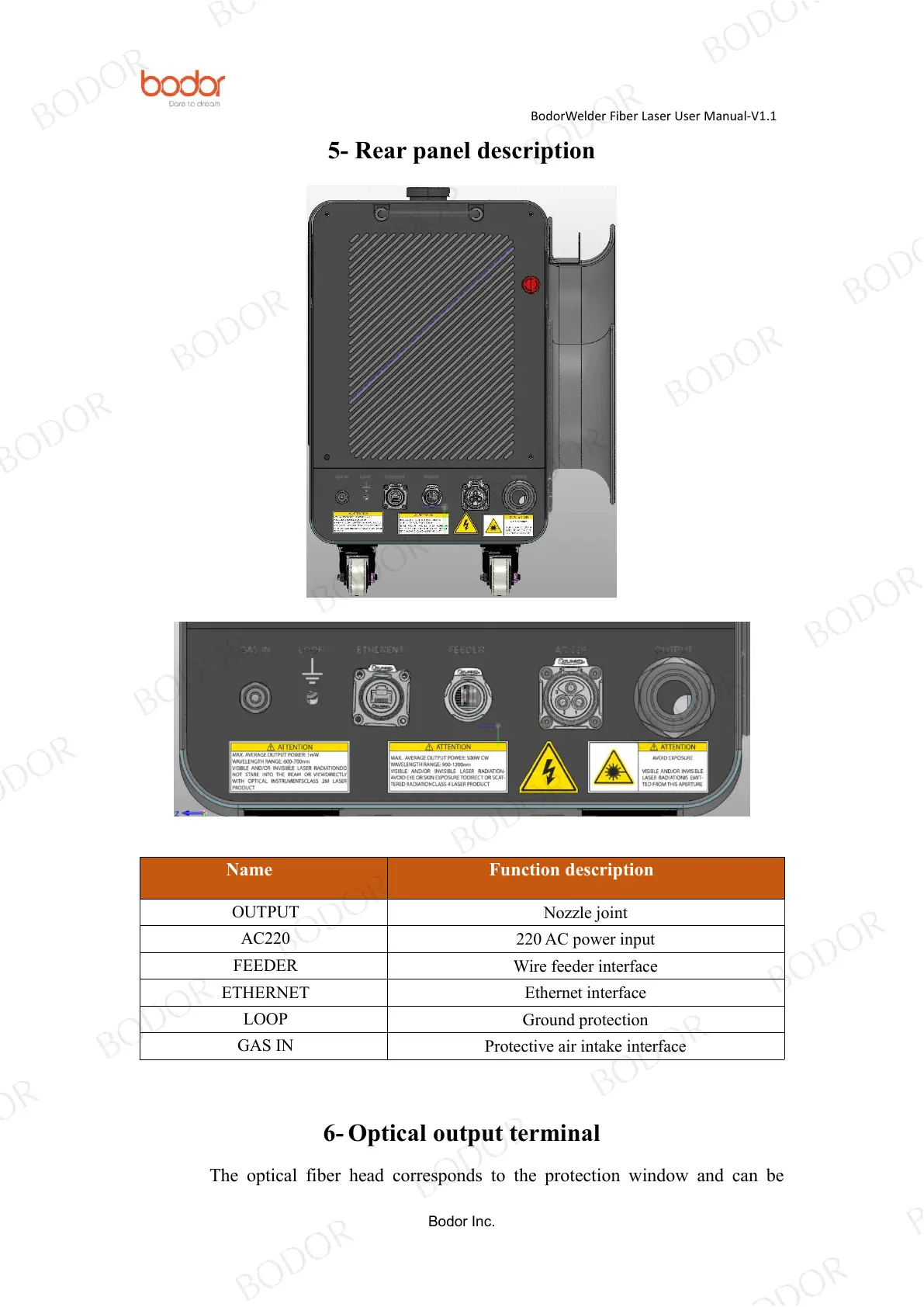

5- Rear panel description
6- Optical output terminal
The optical fiber head corresponds to the protection window and can be
Name
Function description
OUTPUT
Nozzle joint
AC220
220 AC power input
FEEDER
Wire feeder interface
ETHERNET
Ethernet interface
LOOP
Ground protection
GAS IN
Protective air intake interface
