BodorWelder Fiber Laser User Manual-V1.1
Bodor Inc.

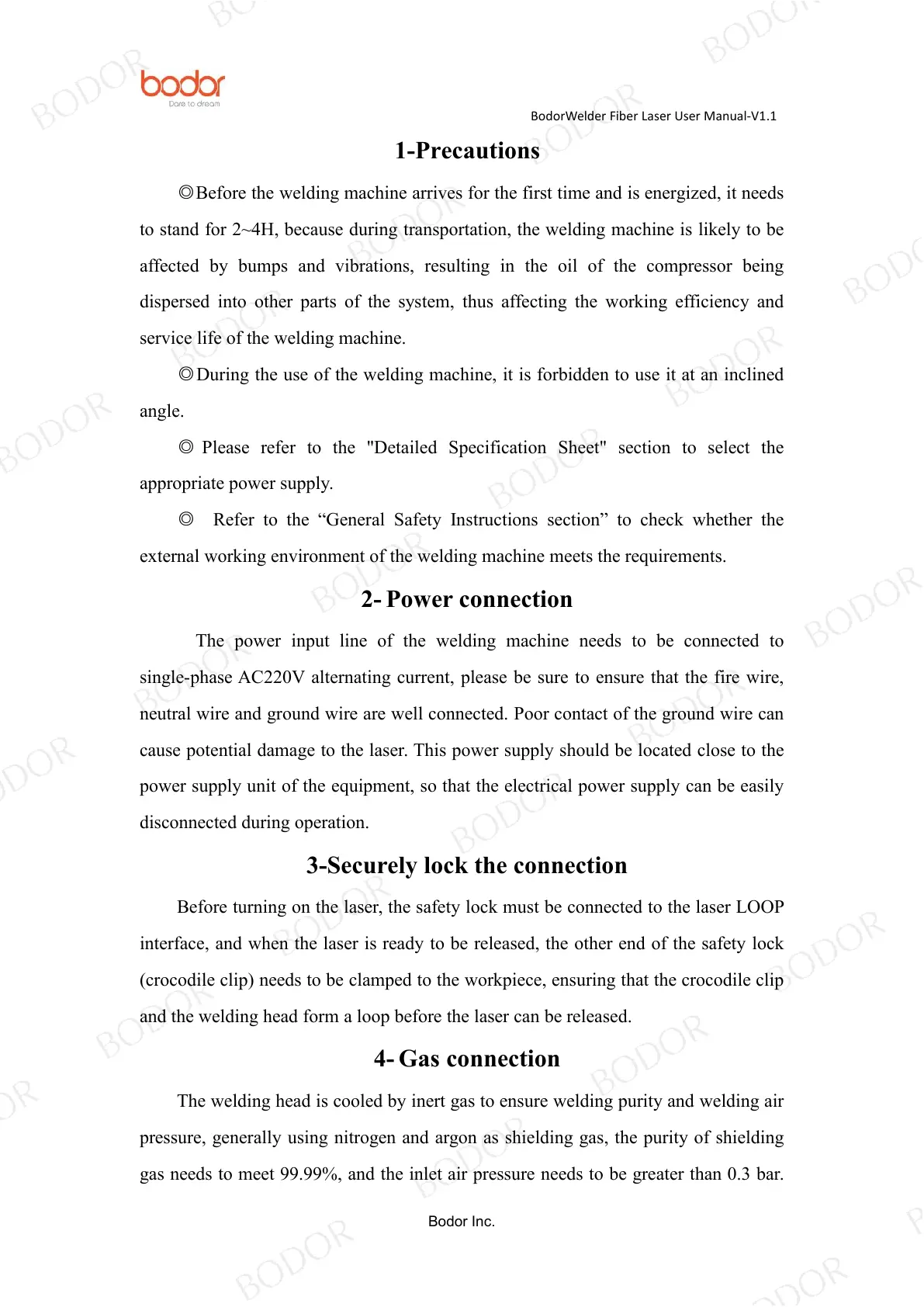

1-Precautions
◎
Before the welding machine arrives for the first time and is energized, it needs
to stand for 2~4H, because during transportation, the welding machine is likely to be
affected by bumps and vibrations, resulting in the oil of the compressor being
dispersed into other parts of the system, thus affecting the working efficiency and
service life of the welding machine.
◎
During the use of the welding machine, it is forbidden to use it at an inclined
angle.
◎
Please refer to the "Detailed Specification Sheet" section to select the
appropriate power supply.
◎
Refer to the “General Safety Instructions section” to check whether the
external working environment of the welding machine meets the requirements.
2- Power connection
The power input line of the welding machine needs to be connected to
single-phase AC220V alternating current, please be sure to ensure that the fire wire,
neutral wire and ground wire are well connected. Poor contact of the ground wire can
cause potential damage to the laser. This power supply should be located close to the
power supply unit of the equipment, so that the electrical power supply can be easily
disconnected during operation.
3-Securely lock the connection
Before turning on the laser, the safety lock must be connected to the laser LOOP
interface, and when the laser is ready to be released, the other end of the safety lock
(crocodile clip) needs to be clamped to the workpiece, ensuring that the crocodile clip
and the welding head form a loop before the laser can be released.
4- Gas connection
The welding head is cooled by inert gas to ensure welding purity and welding air
pressure, generally using nitrogen and argon as shielding gas, the purity of shielding
gas needs to meet 99.99%, and the inlet air pressure needs to be greater than 0.3 bar.
