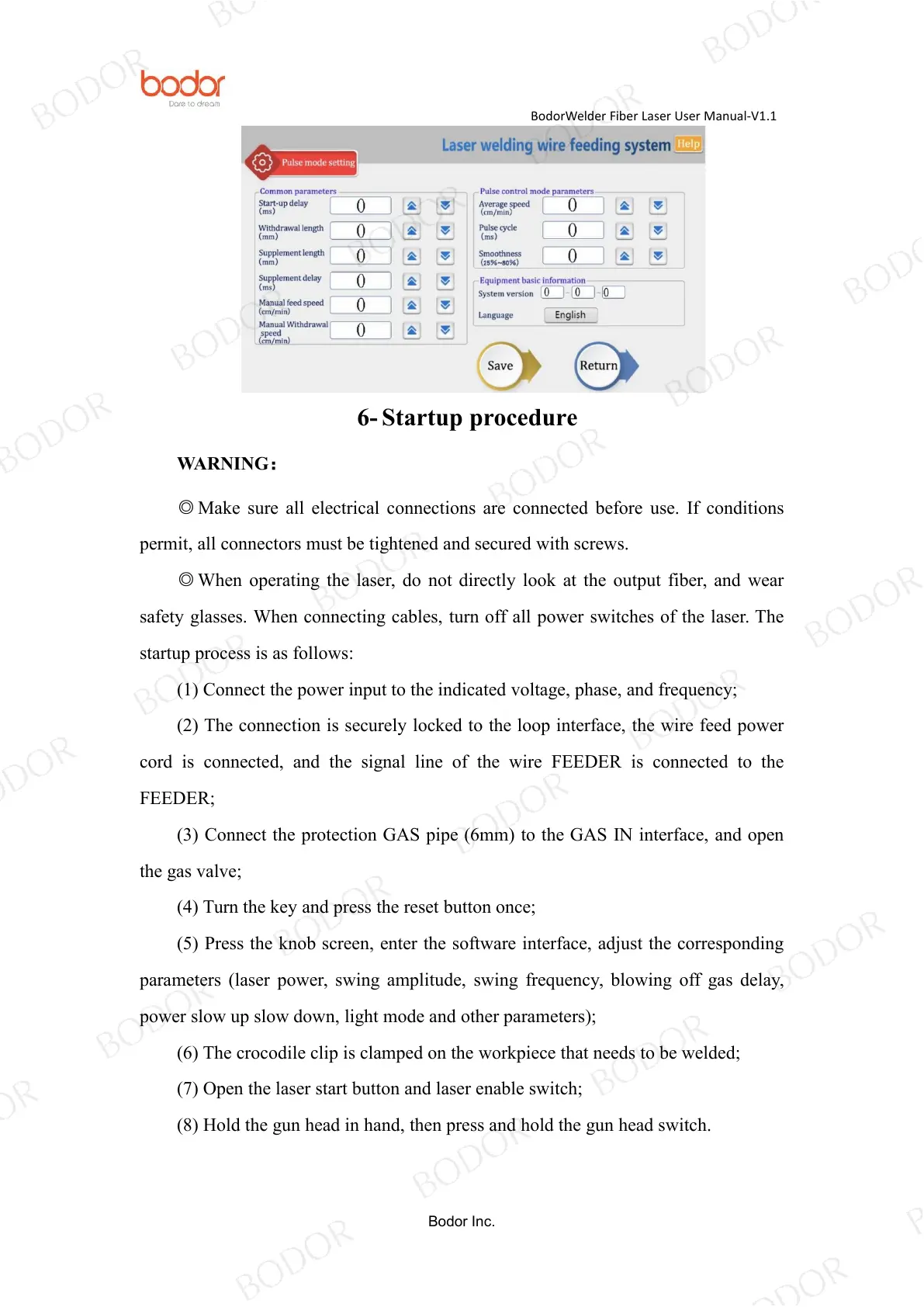

6- Startup procedure
WARNING：
◎
Make sure all electrical connections are connected before use. If conditions
permit, all connectors must be tightened and secured with screws.
◎
When operating the laser, do not directly look at the output fiber, and wear
safety glasses. When connecting cables, turn off all power switches of the laser. The
startup process is as follows:
(1) Connect the power input to the indicated voltage, phase, and frequency;
(2) The connection is securely locked to the loop interface, the wire feed power
cord is connected, and the signal line of the wire FEEDER is connected to the
FEEDER;
(3) Connect the protection GAS pipe (6mm) to the GAS IN interface, and open
the gas valve;
(4) Turn the key and press the reset button once;
(5) Press the knob screen, enter the software interface, adjust the corresponding
parameters (laser power, swing amplitude, swing frequency, blowing off gas delay,
power slow up slow down, light mode and other parameters);
(6) The crocodile clip is clamped on the workpiece that needs to be welded;
(7) Open the laser start button and laser enable switch;
(8) Hold the gun head in hand, then press and hold the gun head switch.
