Bodor Welder 1500 Pro - 5- Wire Feeder Connection

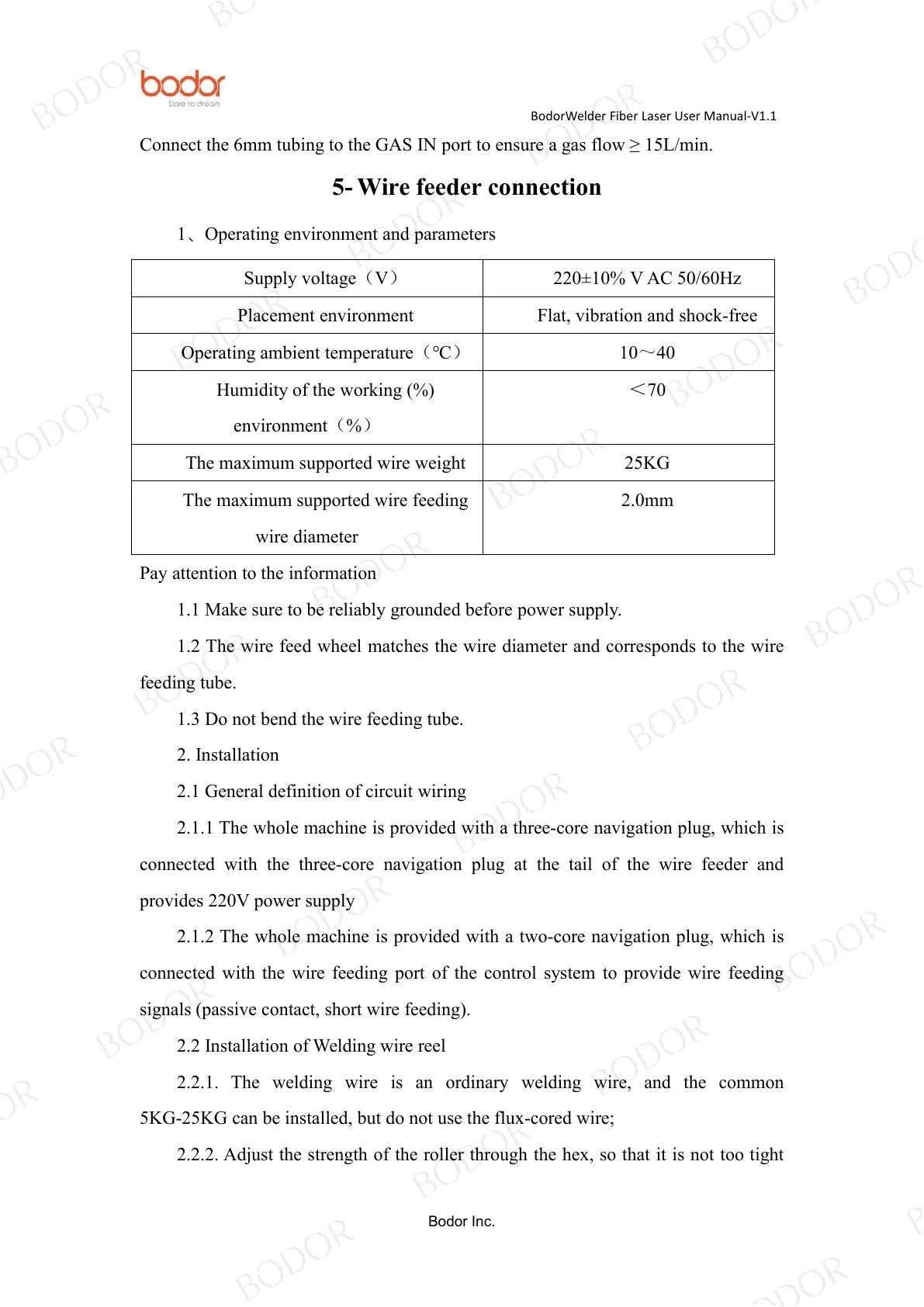

BodorWelder Fiber Laser User Manual-V1.1
Bodor Inc.
Connect the 6mm tubing to the GAS IN port to ensure a gas flow ≥ 15L/min.
5- Wire feeder connection
1、Operating environment and parameters
Supply voltage
（
V
）
220±10% V AC 50/60Hz
Placement environment
Flat, vibration and shock-free
Operating ambient temperature（℃）
10～40
Humidity of the working (%)
environment（%）
＜70
The maximum supported wire weight
25KG
The maximum supported wire feeding
wire diameter
2.0mm
Pay attention to the information
1.1 Make sure to be reliably grounded before power supply.
1.2 The wire feed wheel matches the wire diameter and corresponds to the wire
feeding tube.
1.3 Do not bend the wire feeding tube.
2. Installation
2.1 General definition of circuit wiring
2.1.1 The whole machine is provided with a three-core navigation plug, which is
connected with the three-core navigation plug at the tail of the wire feeder and
provides 220V power supply
2.1.2 The whole machine is provided with a two-core navigation plug, which is
connected with the wire feeding port of the control system to provide wire feeding
signals (passive contact, short wire feeding).
2.2 Installation of Welding wire reel
2.2.1. The welding wire is an ordinary welding wire, and the common
5KG-25KG can be installed, but do not use the flux-cored wire;
2.2.2. Adjust the strength of the roller through the hex, so that it is not too tight
