General 1.3 Components / Range of application
Page 4 BOGE Operating instructions trinity
1.3 Components / Range of application
Hardware
The module is mounted to the carrier rail inside the switch cabinet of the com-
pressor or in a separate housing.
Mains breakdown safe EEPROM – memory for all parameters, switch times
and cycle rest time when the mains fail.
Time-operation – capacitor for > 10h.
Operating and control
panel
Single-line 16 digit background luminous alphanumeric LC display.
3 keys: arrow keys: / and (’Return’ / ’Enter’).
The display unit comprises a graphic display and 3 indicator lamps (LEDs) for
an additional illustration of the operating modes.

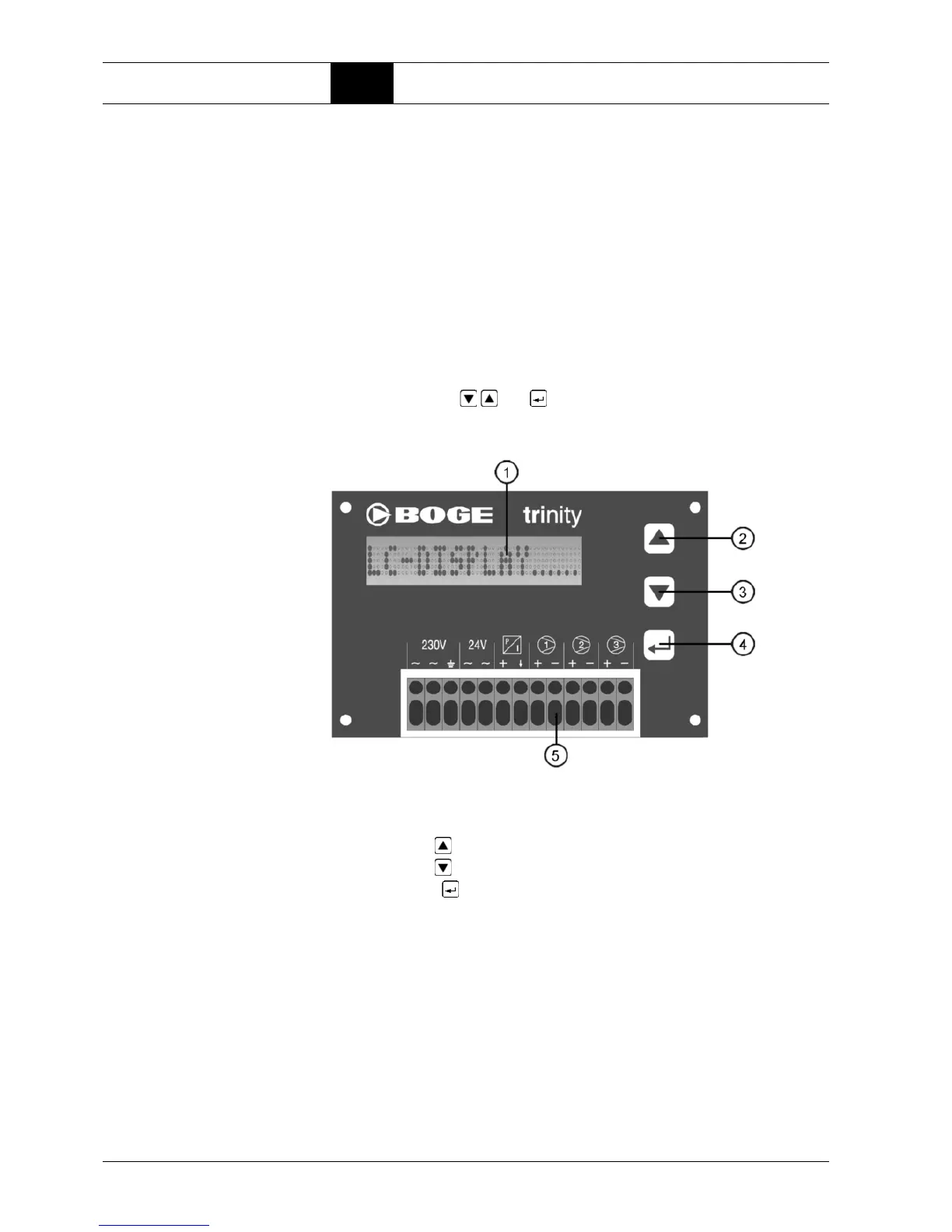

Fig. 1.1: Operating and control panel trinity
1 LC-Display (alphanumeric, 16 digit)
2 Arrow key (next information)
3 Arrow key (previous information)
4 ENTER key (selection/acknowledgement)
5 Connections
