Maintenance every year
BOMAG 49 BPH 80/65

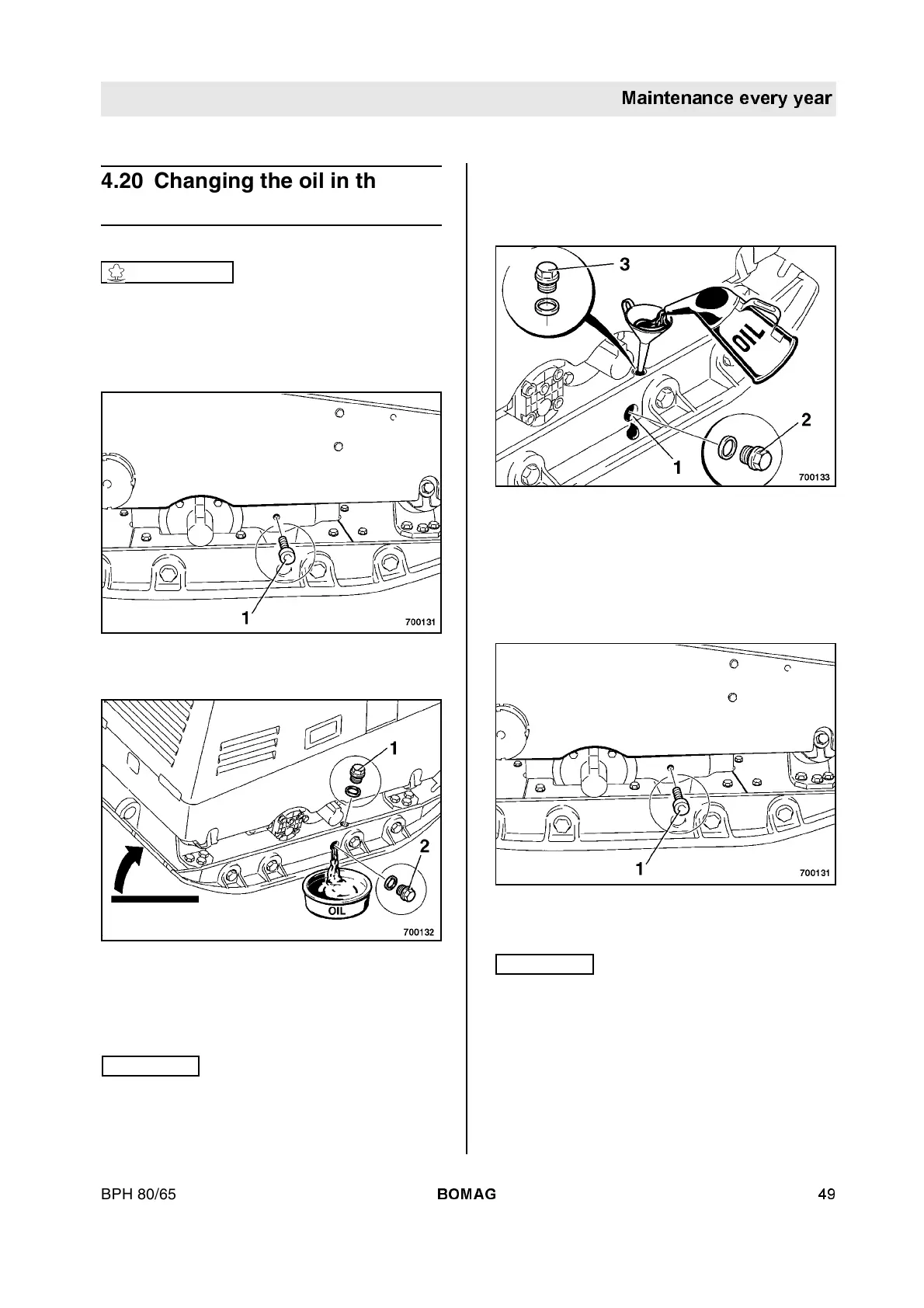

4.20 Changing the oil in the vi-
brator housing
Environment
Catch running out old oil, do not let it seep into
the ground and dispose off environmentally.
l Tilt the machine towards the drain side and
support it securely.
Fig. 60
l Unscrew bleeding screw 1 (Fig. 60).
Fig. 61
l Unscrew filler plug 1 (Fig. 61) as well as level
and drain plug (2).
l Drain off and catch old oil.
i
Note
Leave the machine in this position until all oil has
run out of the drain bore.
For quality and quantity of oil refer to the table
of fuels and lubricants.
l Stand the machine horizontally.
Fig. 62
l Fill in oil, until oil starts to run out through in-
spection bore 1 (Fig. 62).
l Clean inspection and drain plug (2) and screw
it back in with a new seal ring.
l Screw in filler plug (3).
Fig. 63
l Turn in bleeding screw 1 (Fig. 63).
i
Note
If the seal ring on the bleeding screw is worn use
a new bleeding screw with seal ring.
