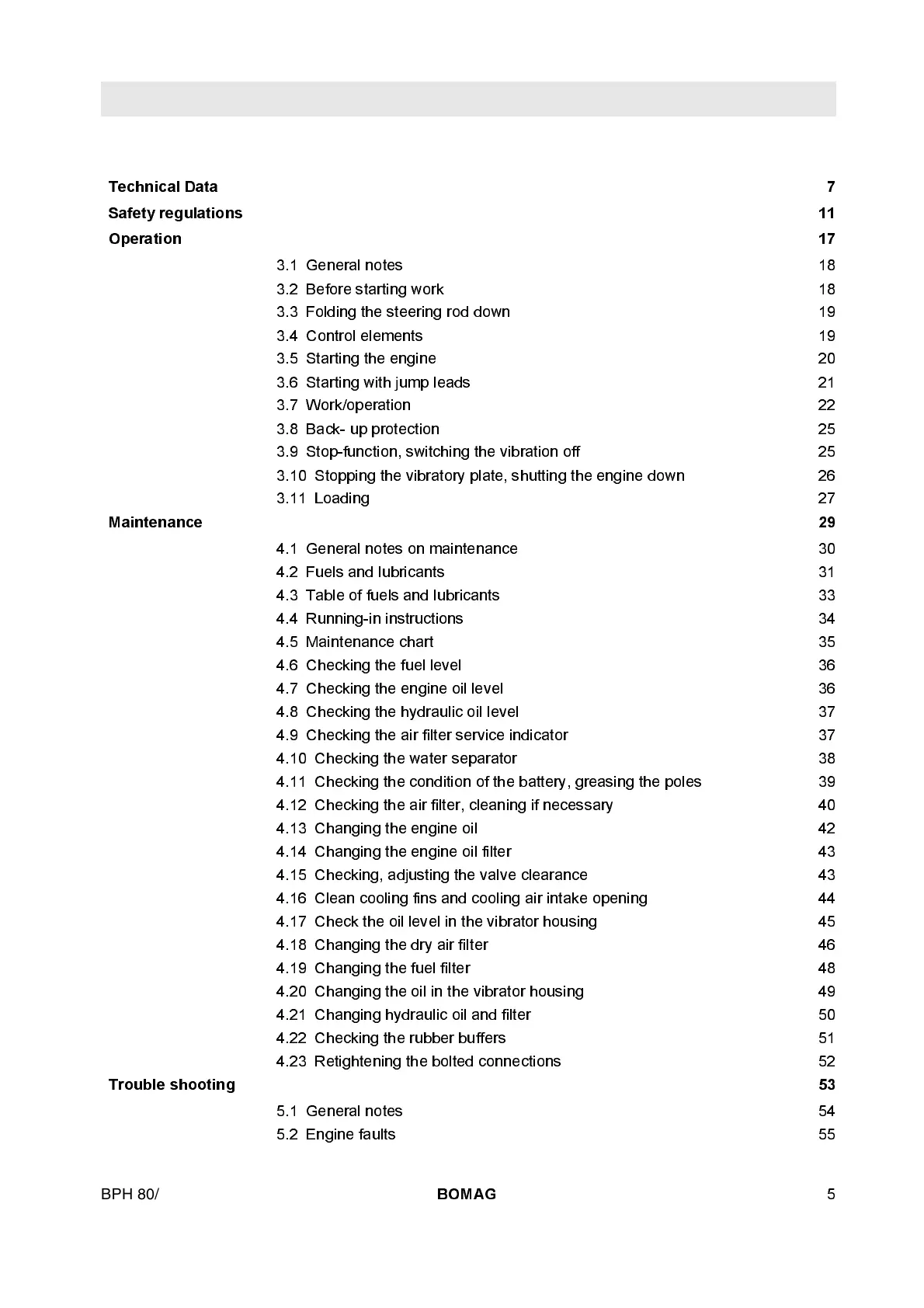

Table of Contents
BOMAG 5 BPH 80/65
Technic al Data 7
Safety reg ul atio ns 11
Operation 17
3.1 General notes 18
3.2 Be fore start i ng w ork 18
3.3 Foldi ng the st eeri ng rod dow n 19
3.4 Control elements 19
3.5 St art i ng the engi ne 20
3.6 Starting with jump leads 21
3.7 Work/operation 22
3.8 Ba ck- up protect i on 25
3.9 Stop-function, switching the vibratio n off 25
3.10 Stopp ing the vibratory plate, shutting the engine down 26
3.11 Loading 27
Maintenance 29
4.1 General notes on mai nte nance 30
4.2 Fuels and lubri cants 31
4.3 Table of fuels and lubricants 33
4.4 Runni n g-i n i ns truct i ons 34
4.5 M ainte nance chart 35
4.6 Checki ng the fuel lev el 36
4.7 Checki ng the engi ne oi l level 36
4.8 Checki ng the hy drau lic oi l level 37
4.9 Checki ng the ai r filter servi ce i ndicator 37
4.10 Checki ng th e wa ter s eparat or 38
4.11 Checki ng th e condi tion of the batt ery, greas i ng the poles 39
4.12 Checki ng th e ai r filter, cleani ng i f necess ary 40
4.13 Changing the engine oil 42
4.14 Changing the engine oil filte r 43
4.15 Checking, adjusting the valve clearance 43
4.16 Clean cooli ng fin s and cooli ng ai r i nta ke openi ng 44
4.17 Check the oil level in the vibrator housing 45
4.18 Changing the dry ai r filter 46
4.19 Changing the fuel fi lter 48
4.20 Changing the oi l in the vibrat or housing 49
4.21 Changing hydrauli c oi l and filter 50
4.22 Checking the rubber buffers 51
4.23 Ret i ght eni ng the bolted connections 52
Troubl e sho otin g 53
5.1 General notes 54
5.2 En gi ne faults 55
