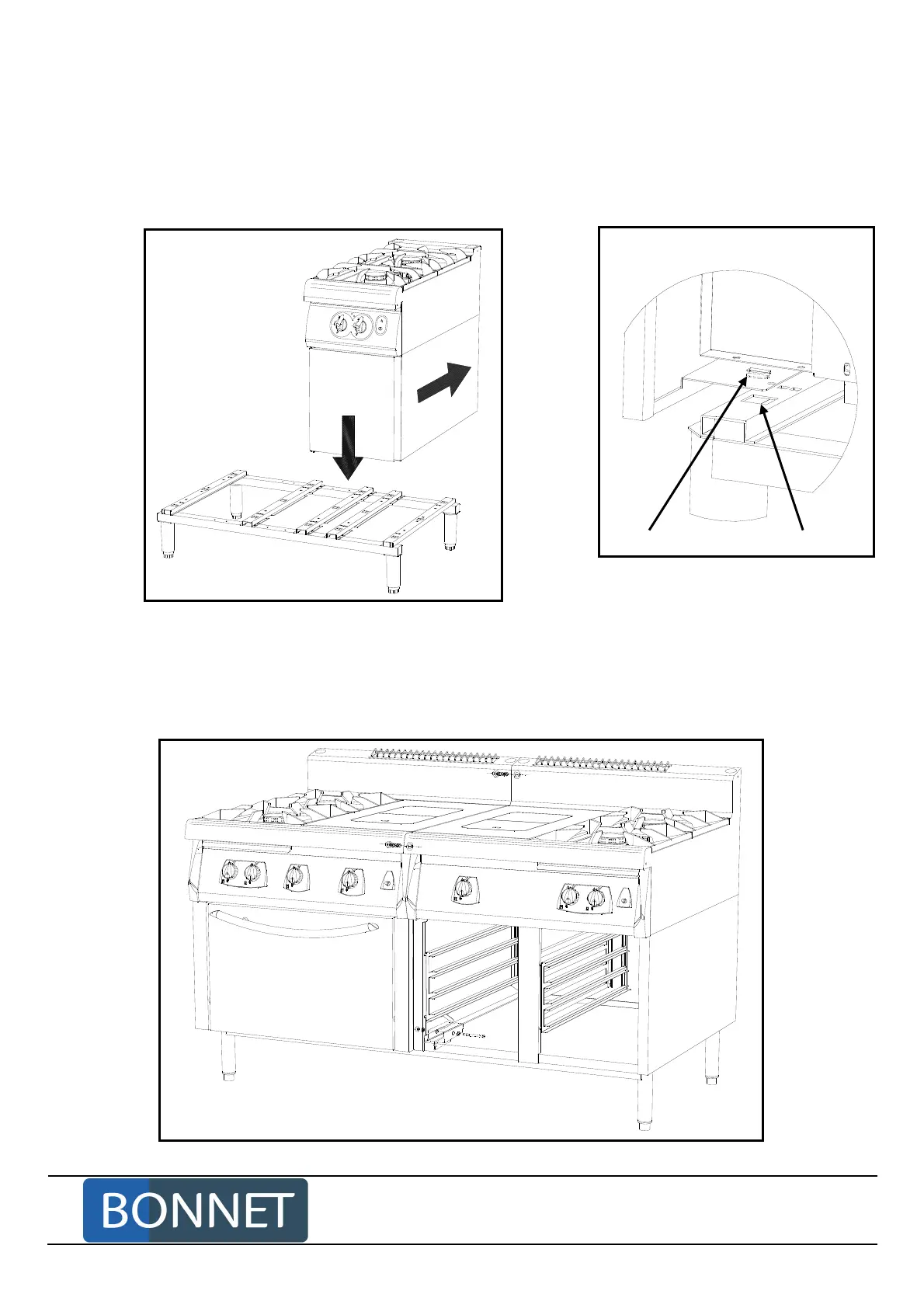

3.2.3 ASSEMBLY OF APPLIANCES ON A COMMON BASE
- Put an appliance on the base, the back part of the appliance and that of the base being approximately in
the same alignment. (The base is symmetrical, its front and back being identical).
- Push the appliance backwards till the hooks made in the bottom are positioned in the square holes sized
25 x 25 foreseen for this purpose.
Hook fixation (detail)
Hook Hole
- Carry out both operations for each appliance installed on the same base.
- At the front, secure the appliances on the base with two HM 5 x 16 screws + 2 ø 5 flat washers underneath.
- Fix the appliances between themselves at the back in the way of collectors with one HM5
X
16
screw
+
Ø
5 flat
washer.
- Fix the appliances between themselves at the front having removed the fascia (see paragraph 2.4) with
two HM5
X
16
screws
+
Ø
5 flat washers.
