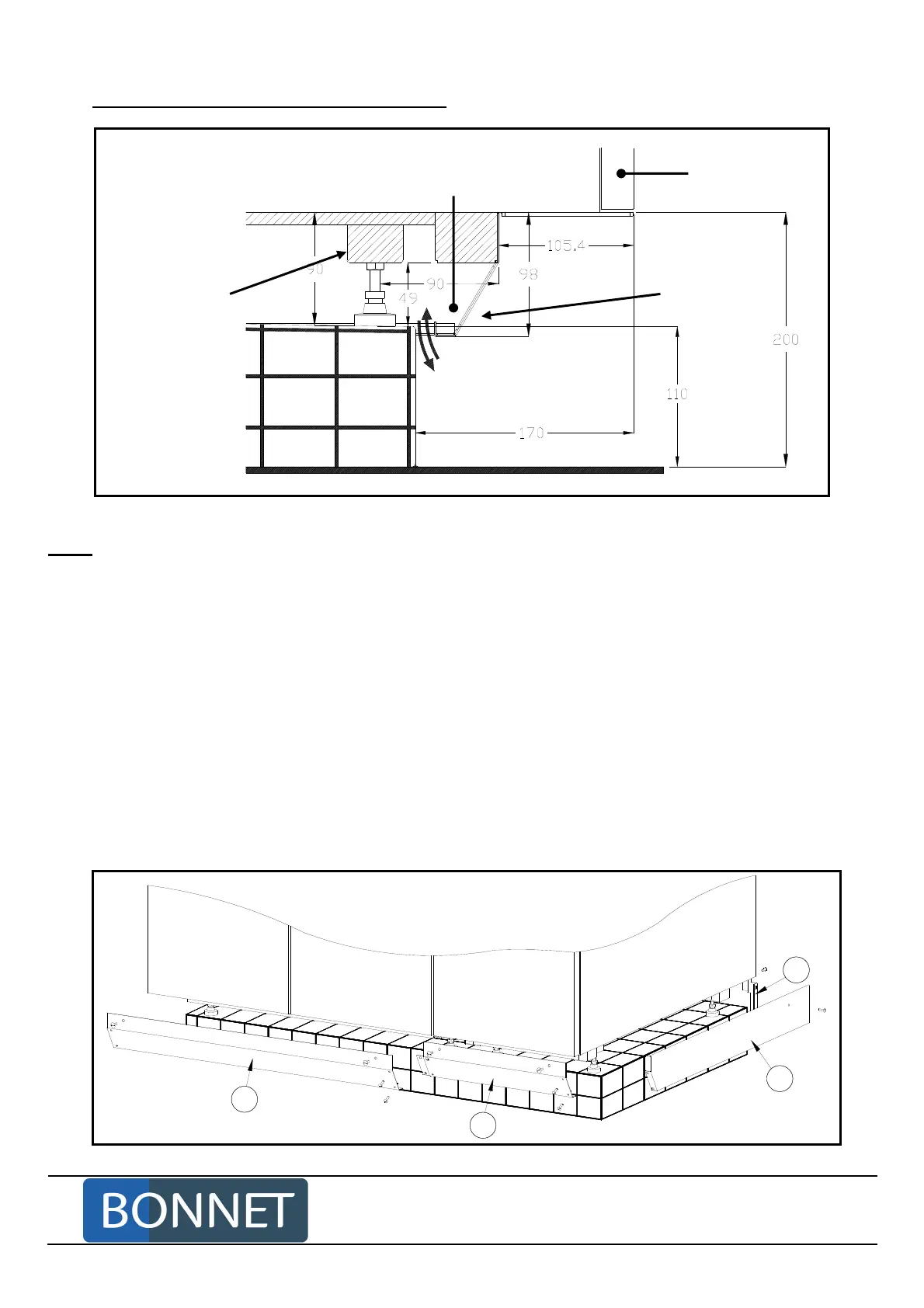

Assembly of appliances on a masonry base
Put the appliances in place on the masonry base.
Note: If the appliances are delivered separately from the base, install the appliances on one or more bases
space 2000.
Connect electrical supply to the appliances (see paragraph 4: Installation: Connections)
Assemble the appliances between themselves.
- Fix the appliances between themselves at the back in the way of collectors with one HM5 X 16 screw + Ø 5
flat washer.
- Fix the appliances between themselves at the front having removed the fascia (see paragraph 2.2.3)
with two HM5 X 16 screws + Ø 5 flat washers.
Connect gas, water and drainage lines to the appliances.
Fit the trimming plinths. One front plinth per space 2000 base and one right and left end trimming plinth per
stove, depending on order.
- Assemble on or more front plinths with junctions (depending on the quantity of bases) (2 screws per plinth).
- Fix one or more front plinths  and ) onto one or more bases (two screws at least per plinth).
- Fix the back part (on the end appliances before their final installation) on the base with the hex
head screw ().
- Fix the right and left end trimming kits () (2 front screws and 1 back screw).
1
2
4
3
Base
height at
the front
Appliance
Ventilation
Trimming
plinth
Base space
2000
Possibility to lay piping
on the front
