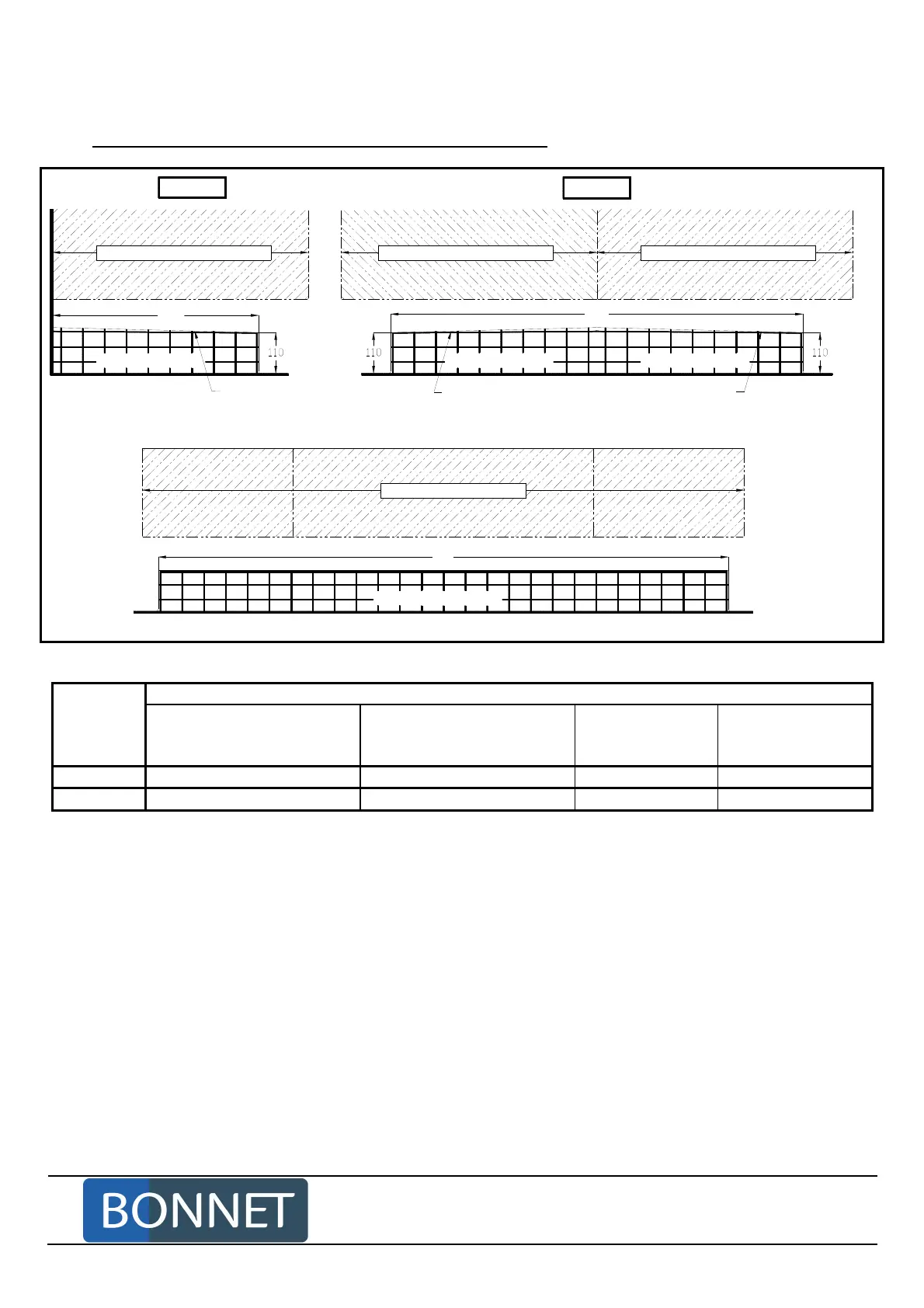

3.2.4 ASSEMBLY OF THE APPLIANCES ON A MASONRY BASE
Dimension of the masonry base for wall or central stove
Am
Ls
Ac
Wall
Centrally
(side view)(side view)
(front view)
Full tiled base
Lf: Stove width
Stove depth Stove depth Stove depth
Full tiled base Full tiled base Full tiled base
1 cm/m maximum slope 1 cm/m maximum slope 1 cm/m maximum slope
Finished
height with
tiled front
Finished
height with
tiled front
Base dimension
Range
Am
Base depth as wall
version
Ac
Base depth as a central
version
Ls
Base length
Finished height,
tiled on the front
700 520 1040 Lf-50 110
900 710 1420 Lf-50 110
The technical compartment is compulsory if, the switch off tap, the shut off valve, or the reducing valve
are in the stove.
There are two possibilities:
1) Neutral top on a 200 or 400 technical compartment.
2) Cupboard foreseen for taps and 400 size with all possibilities of cooking or neutral tops except
induction.
