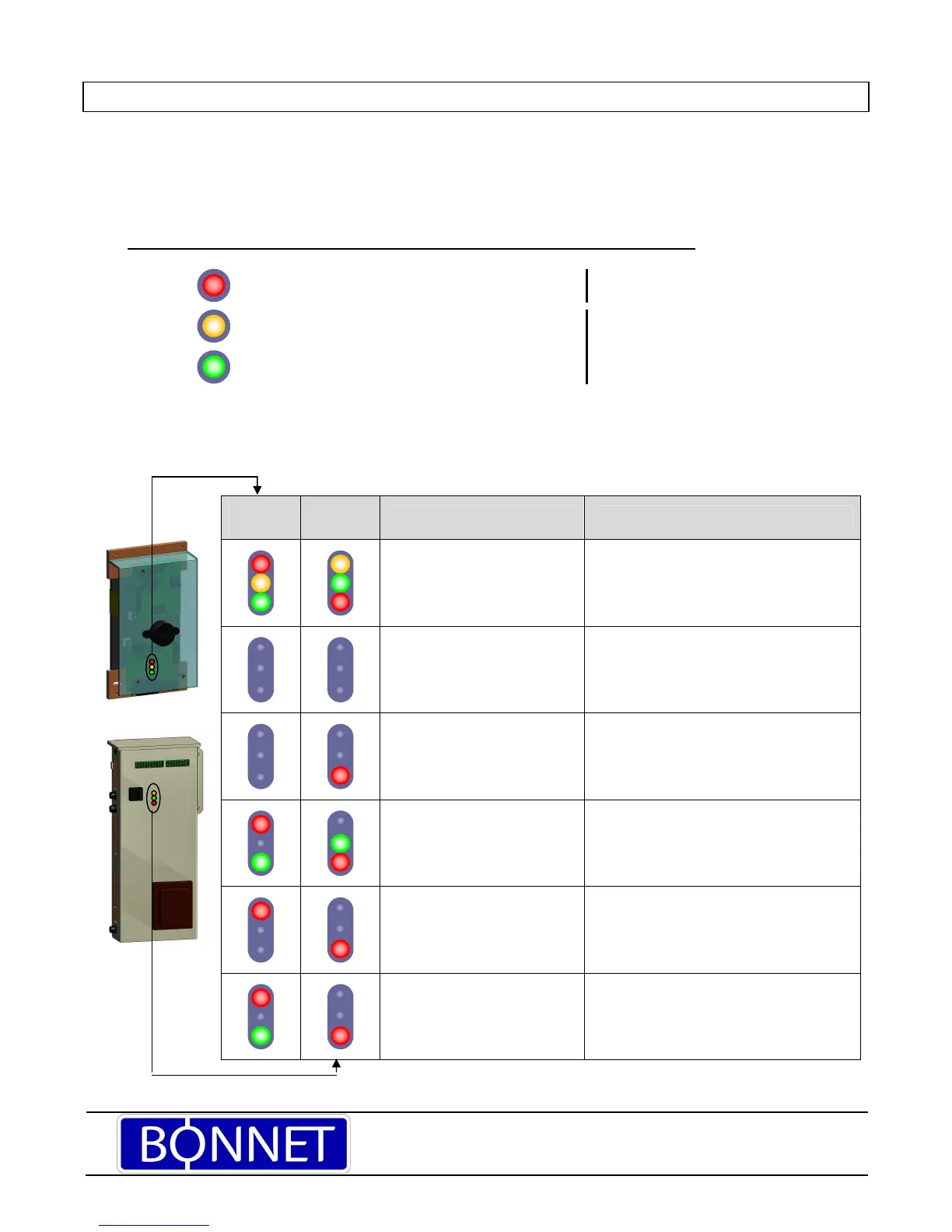

3. MAINTENANCE PROGRAMMES
3.1 ELECTRONIC CARDS
The state of the LEDs represent the communication between the 2 electronic cards and helps with
diagnostics in the event of a breakdown.
Significance of the LEDs on the electronic relay card and the graphic facia card:
LED Red    Power on LED steady
LED yellow/Orange 
Emitting
LED steady or flashing
LED Green   
Receiving
A flashing LED is considered active as is a steady one.
Diagnostic of electronic faults:
Facia
card
Relay
card
Diagnostic Action
- Both cards are OK - Functioning normally
- Supply fault
- Check for 230V~ between
terminals 1 and 3 on the relay card
- Check fuse F4,
- Check the stop start button
- Connection problem with
the graphics card
- Replace the ribbon cable
and or
- Replace the facia card
- Relay card non function - Replace the relay card
- Facia card non function - Replace the facia card
- Ribbon cable non
function
- Replace the cable
R
Y
G
Y
G
R
R
R
G
G
R
R
R
R
R
G
