Installation
15
Air Center Control – 6720892132 (2021/10)
▶ Fit cover of expansion card (cover included in the scope of
delivery of the expansion card) and fasten with screws.

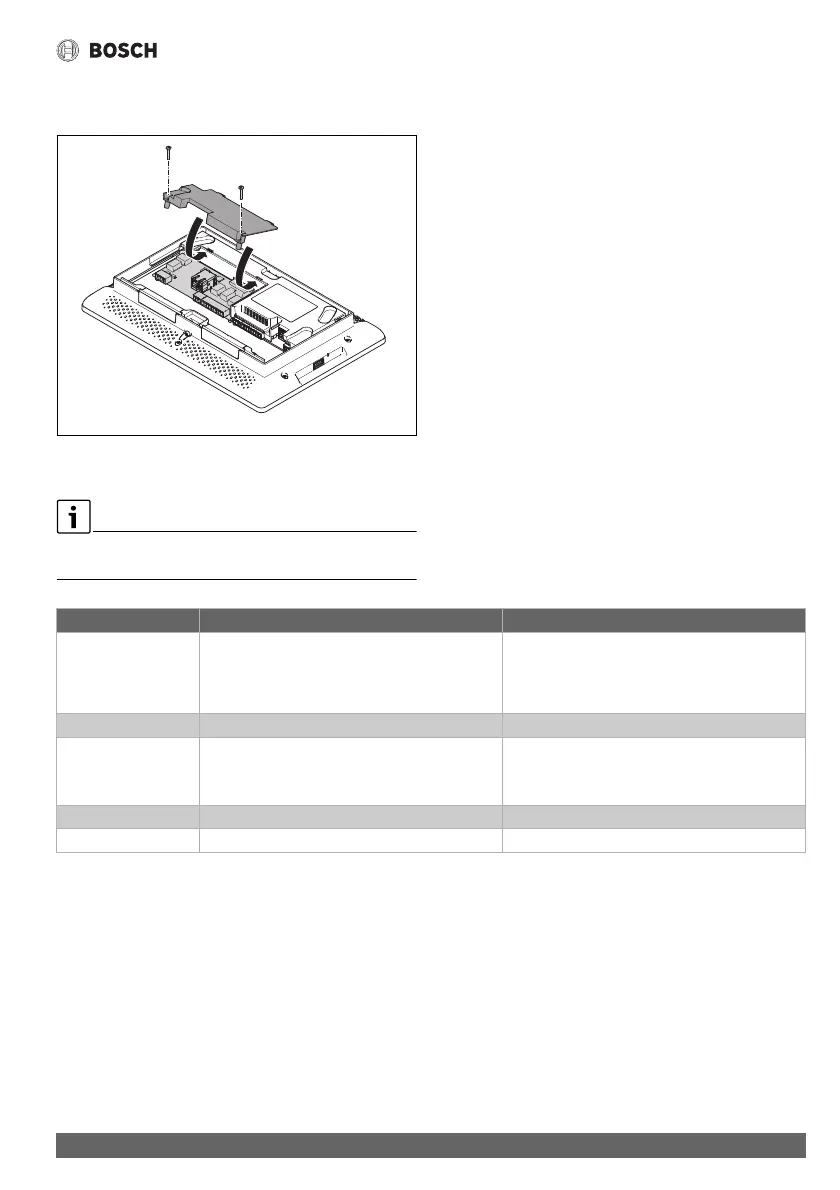

Fig. 12 Fitting the cover
3.1.4 Cable specifications
The PoE+ (Power over Ethernet) function is not available for
devices with the part number 8733502082.
Table 4 Cable specifications
0010023905-001
Connections Specification Precautions
DC
in
power supply Use the power source provided. Use alternative
power source according to IEC 60335-1 (double
insulated, approved for domestic appliances), with
connecting cable 1.5 mm
2
.
Power can also be supplied via network cable
(PoE+).
Ethernet minimum CAT 5e S/UTP Maximum length 100 m
XYE Shielded, 3-wire, flexible cable 0.75 mm²; use
uninsulated wire ferrules.
Maximum length 1200 m
If this length is exceeded, it is not possible to
establish an interference-free connection.
Digital I/O Shielded
1)
, 0.5...0.75 mm²
1) To be evaluated depending on the application; do not connect shield to central controller.
Maximum length 1200 m
Analogue I/O Shielded, 0.5...0.75 mm² Maximum length 1200 m
