Bosch ACC MT User Manual

Installation
17
Air Center Control – 6720892132 (2021/10)
[1] Analogue I/O
[2] LAN2
[3] Modbus/RTU
[4] XYE4
[5] XYE3
[6] XYE2
[7] XYE1
[8] Digital I/O
[9] LAN1
[10] DC
in
▶ Connect cable.
▶ Hook central controller into the wall mounting bracket.
▶ Stow away the excess length of cable in the wall box.
▶ Fold the central controller down.
▶ Fasten central controller with screw.
Hook central controller into the wall mounting bracket and
fasten ( Chapter 3.2.3, page 18).

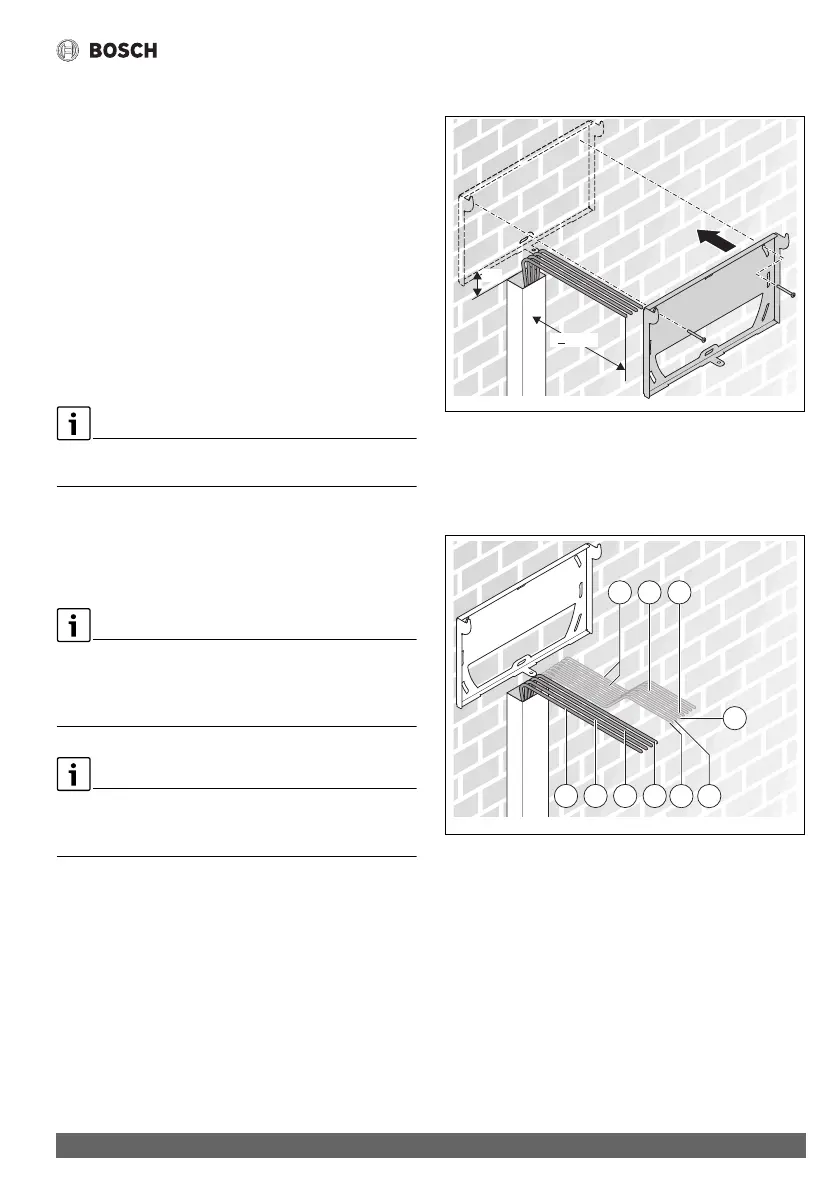

3.2.2 Installation on finished walls with cable conduit
▶ Prepare installation location above the cable conduit for
the installation of the central controller wall mounting
bracket.
To allow the screw that acts as locking device for the central
controller on the wall mounting bracket ( Fig. 4, Item [8],
page 9) to be tightly fastened without problems, we
recommend using cable conduits with detachable front.
To avoid any problems when connecting the central controller,
we recommend that the length of the cable outside the cable
conduit is at least 200 mm.
▶ Install wall mounting bracket 30 mm above the cable conduit.
Fig. 16 Installing the wall mounting bracket
(dimensions in mm)
▶ Position cable.
▶ Connect cable and, if necessary, fasten with cable ties to
the tabs below the cable feeds.
Fig. 17 Connect cable
[1] Analogue I/O
[2] LAN2
[3] Modbus/RTU
[4] XYE4
[5] XYE3
[6] XYE2
[7] XYE1
[8] Digital I/O
[9] LAN1
[10] DC
in
▶ Hook central controller into the wall mounting bracket and
fasten ( Chapter 3.2.3, page 18).
0010024052-001
200
30
>
0010024050-001
10 9 8 7
1 2 3
6 5
4
