Installation
6 720 800 531 (2011/09)
11
4.5 Securing the unit to the wall
4.5.1 Deciding the position
B If being used in a public place, position the unit out of
reach to discourage vandalism.
B Mount the unit onto a flat section of wall, well away
from any potential splashes of water or spray.
B Position the unit as shown (Fig. 4).
Remember to keep the length of hot water pipe to a
minimum in order to save energy.
B If the unit is to supply a sink, you can It it either above
or below the sink.

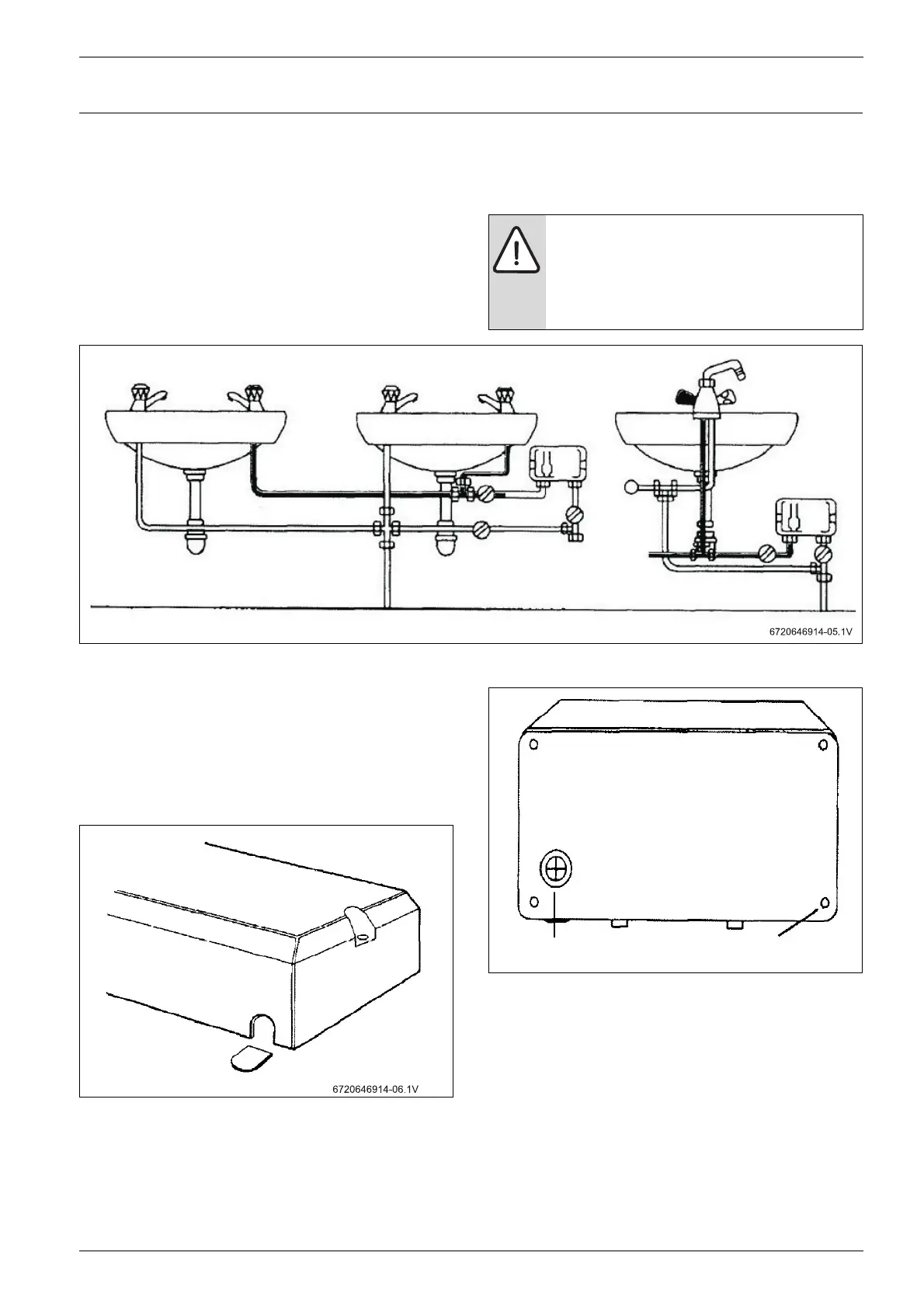

Fig. 4 Examples of installations
4.5.2 Deciding the wiring route
You have a choice of whether to feed the electric cable
through the cover bottom or through the back of the
unit,
B If it is going to be through the cover bottom, cut out
the plastic lug to expose the rubber sleeve (Fig. 5):
Fig. 5 Unit cover
B If it is going through the back of the cover unit, cut
through the grommet on the backplate with a sharp
knife. Make sure that you do not remove the grommet
from the backplate (Fig. 6):
Fig. 6 Back of unit
1 Grommet
2 Fixing holes
B Feed the cable through the grommet before you
mount the unit to the wall. If you are using an
approved cable fitting, remove the grommet.
WARNING:
B Unit must be mounted as shown in Fig. 4
with plumbing connection on the bottom.
Under no circumstances should the unit
be mounted differently.
Cold
Hot
Cold
Hot
Cold
Hot
