Bosch AE 12 - General Description

Information about the heater
6 720 800 531 (2011/09)
5
2.5 General description

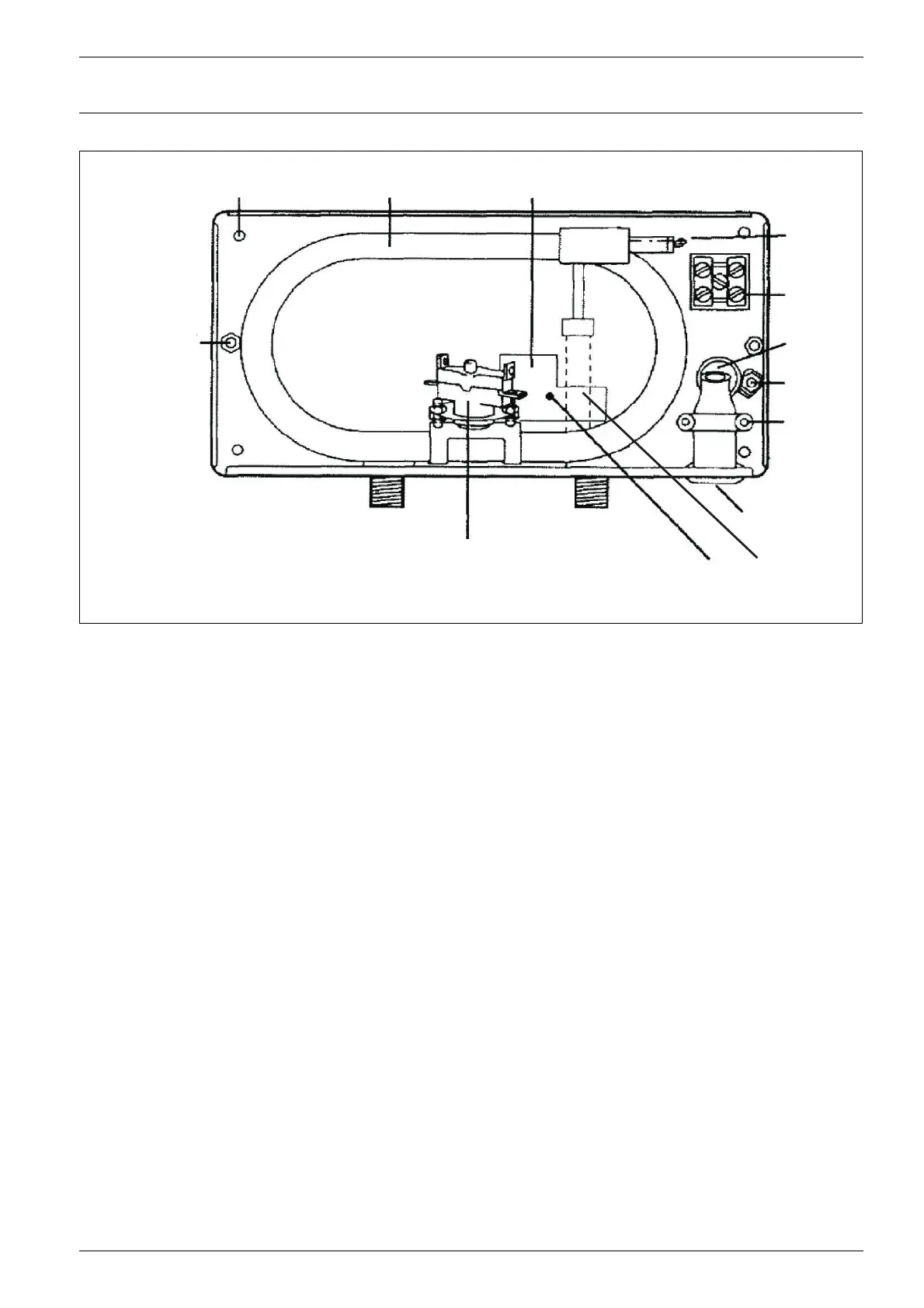

Fig. 1
1 Mouting hole
2 Heat exchanger tube
3 Control P.C.B
4 Heating elements
5 Terminal block
6 Cable rear entry
7 Ground stud
8 Cable clamp
9 Cable side entry
10 Neon light
11 Hi temp thermal cut-out (manual re-set)
12 Cover fixing screw
13 Flow switch
6720646914-01.1V
1 2
3
4
5
6
7
8
9
10
11
12
13
Outlet
Inlet
