4.13 Checking opacimeter
RTM 430

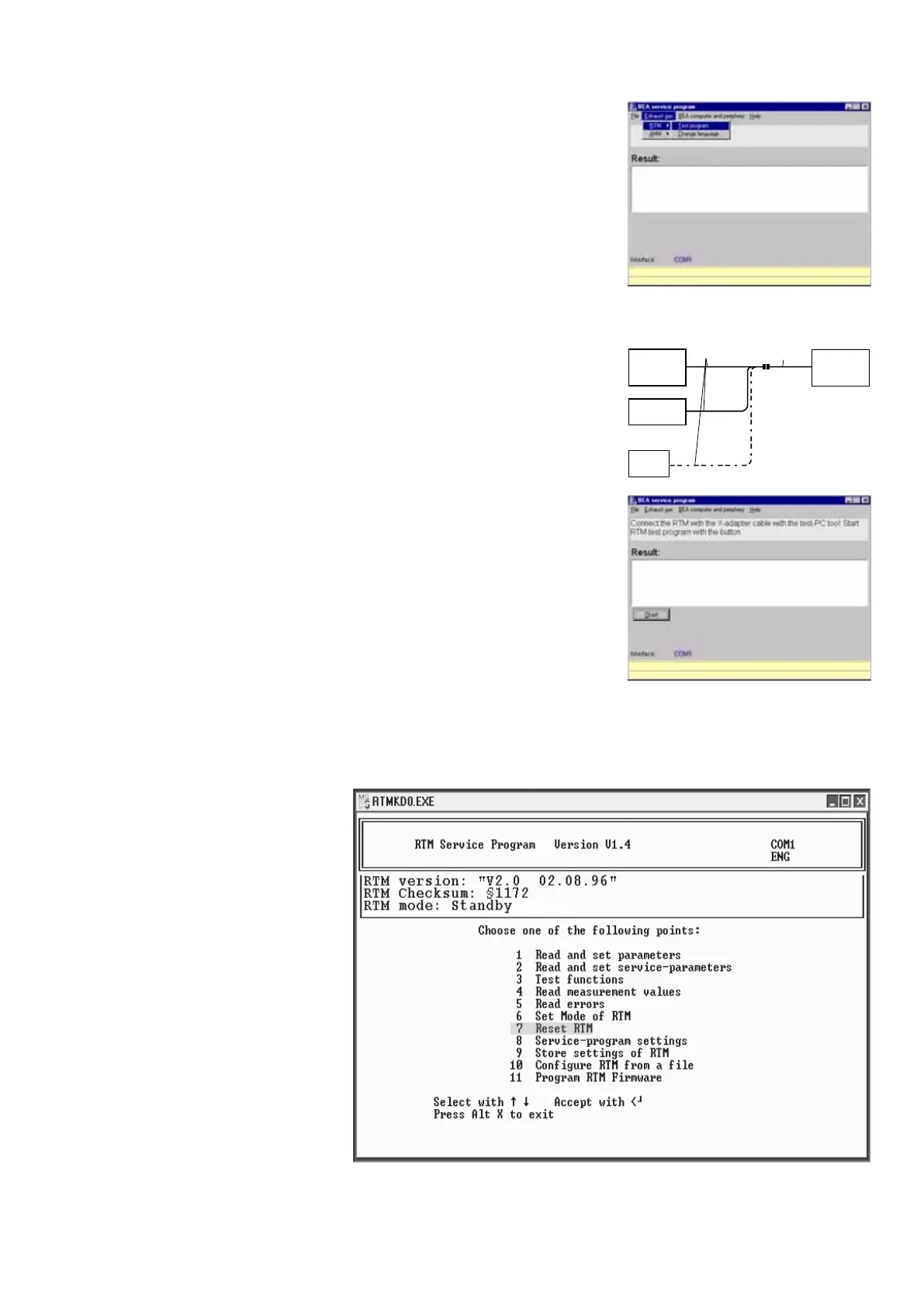

Open the Exhaust gas menu and select
RTM.
Open the Test program menu.
Connect the Y-cable (see illustration)
1 684 463 389 to the UEA input for the
RTM. Connect the RTM 430 to the Y-
cable.
Start the Service program by clicking on
Start.
The Main menu now opens.
PC /
Laptop
BEA
Netzteil
RTM 430
COM1
RTM
RTM
1 684 465 378
1 684 463 389
459601/6Ha
When the Service program starts, you can view the software version, checksum, RTM
mode and dip-switch settings via the different menu items.
For example:
! For more details on working with the Service software and repairing the RTM 430,
please see EDIS 975 135.
Power supply
unit
