Bosch BEA 150 - Terminal Diagram of Timing Light; Terminal Diagram of TD;TN Connection Cable

51

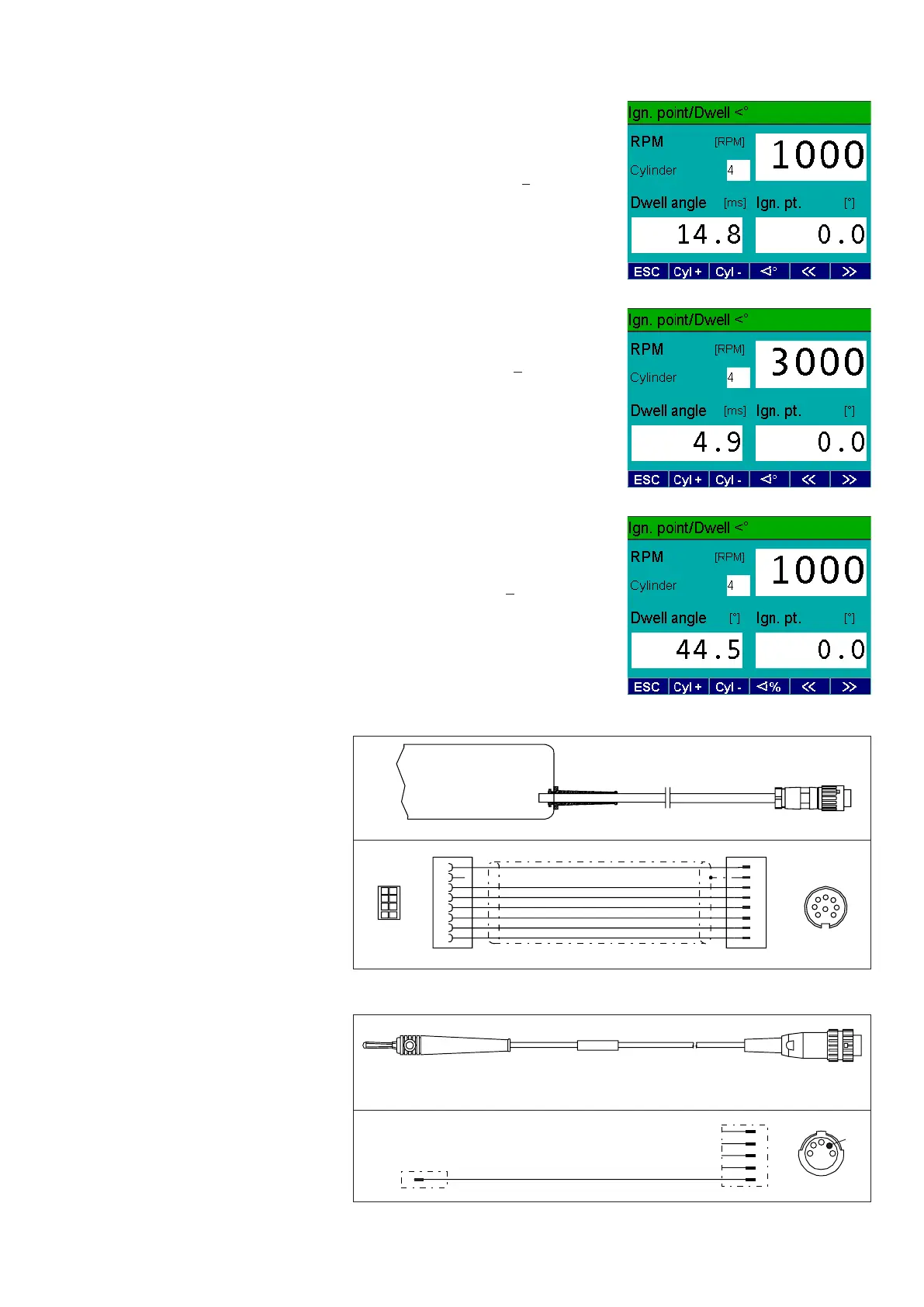

6.5 Checking the dwell angle
6.5.1 Terminal diagram of timing light
6.5.2 Terminal diagram of
TD/TN connection cable
5. Set your P 100 to a dwell angle of 50
% and an engine speed of 1000 rpm.
6. Press F3 on the BEA to view the dwell
angle in ms.
Nominal value: 15ms
+ 0.45ms
7. Repeat this measurement with a dwell
angle of 50 % and an engine speed of
3000 rpm.
Nominal value: 5ms + 0.15ms
8. Set your P 100 to a dwell angle of 50
% and an engine speed of 1000 rpm.
9. Press F3 on the BEA to view the dwell
angle in degrees °.
Nominal value: 45°
+ 0.5°
Lötseite
1
6
4
2
5
3
7
8
1
2
3
4
5
6
7
8
ge
gn
ws
br
gr
rs
bl
ge
gn
ws
br
gr
rs
bl
Cod.
1
2
3
4
5
6
7
8
1
3
5
7
2
4
6
8
ZZP-Stro/Ha
grün
Best. -Nr.
1
2
3
4
5
1
4
2
5
3
460196Ha
Solder side
green
