Operation
Climate 2000 – 6721852026 (2024/05)
26
2.3 Information on refrigerant
This device contains fluorinated greenhouse gases as refrigerant. The
unit is hermetically sealed. The following information on the refrigerant
complies with the requirements of EU Regulation No. 517/2014 on
fluorinated greenhouse gases.
Notice for the user: If your installer adds refrigerant, he enters the added
fill volume and the total amount of the refrigerant in the following table.
Table 22 F-Gas
3Operation
3.1 Indoor unit overview
Key to figure 1:
[1] Top panel
[2] Space for small filter (optional)
[3] Air filter
[4] Back of the display
[5] Button for manual operation
[6] Airflow panel
Indoor unit display
Table 23 Symbols in the display

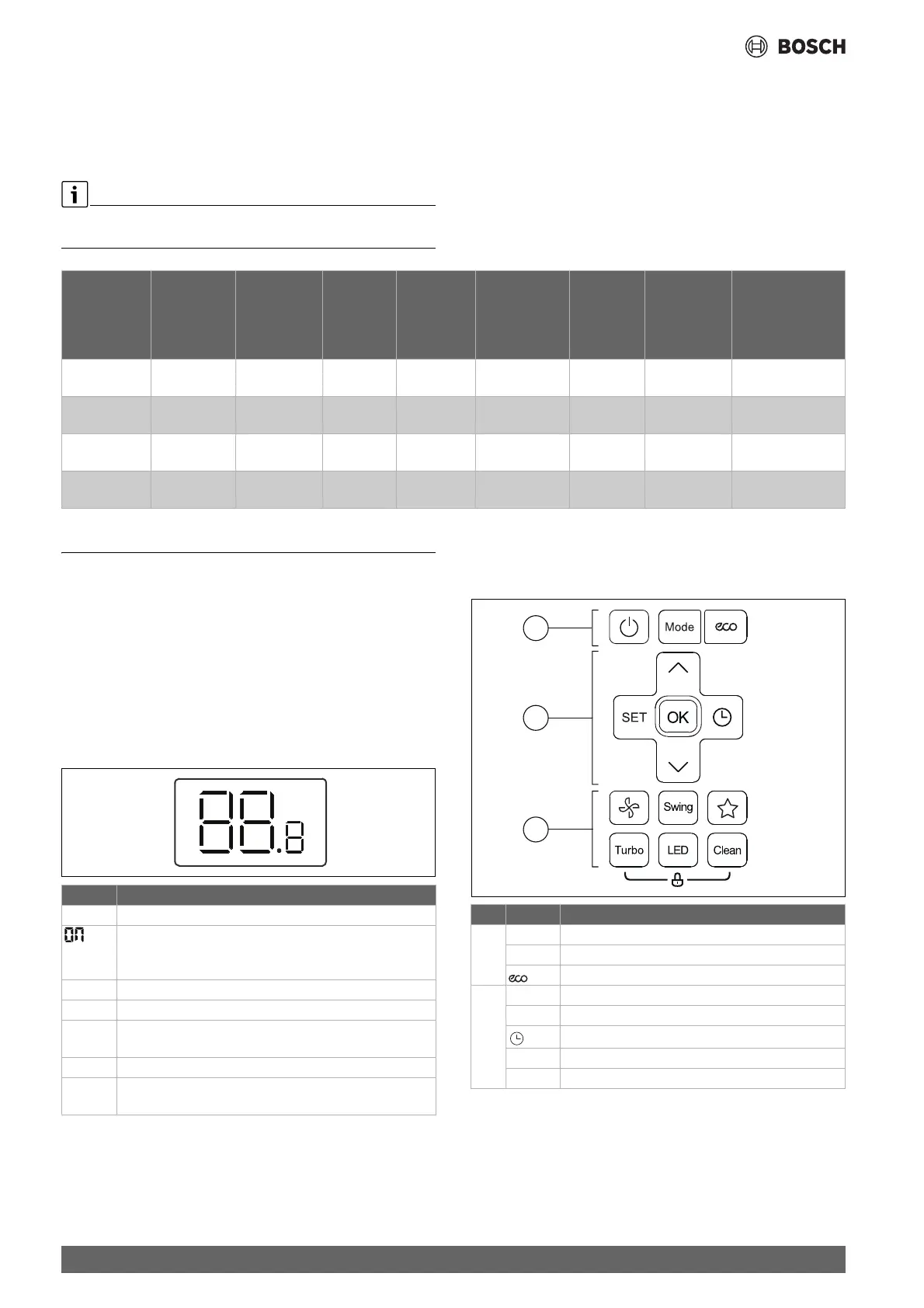

3.2 Remote control overview
Keys on remote control
Product type Rated cooling
output
[kW]
Rated heating
output
[kW]
Refrigerant
Type
Global
Warming
Potential
(GWP)
[kgCo
2
eq.]
CO
2
equivalent
of initial charge
Initial
charge
volume [kg]
Additional fill
volume [kg]
Total charge
volume during
commissioning
[kg]
CL2000 26 E 2.64 2.93 R32 675 0.37 0.55 (Pipe length-5)
*0.012
CL2000 35 E 3.52 3.81 R32 675 0.37 0.55 (Pipe length-5)
*0.012
CL2000 53 E 5.28 5.57 R32 675 0.73 1.08 (Pipe length-5)
*0.012
CL2000 70 E 7.03 7.33 R32 675 0.96 1.42 (Pipe length-5)
*0.024
Symbol Explanation
Number Temperature display
Displayed with some functions, if these are switched on.
Indicates that the ON timer is active when the indoor unit is
switched off.
0F Displayed with some functions, if these are switched off.
dF Automatic defrosting active
FP Frost protection active: the indoor unit keeps the room
temperature at a minimum of 8 °C.
CL The self-cleaning function is active
Ex, Px,
Fx
Fault code (“x” stands for any digit).
0010044707-001
Pos. Key Function
1 K Switch on/off.
Mode Set operating mode.
ECO function
2SET Select advanced operating functions.
OK Confirm choice.
Set timer.
. Increase temperature.
/ Reduce temperature.
0010037628-002
3
2
1
