Installation
13
Condens 7000 WP – 6721842519 (2022/03)
▶ Set up the frame so the marking [4] points forwards.

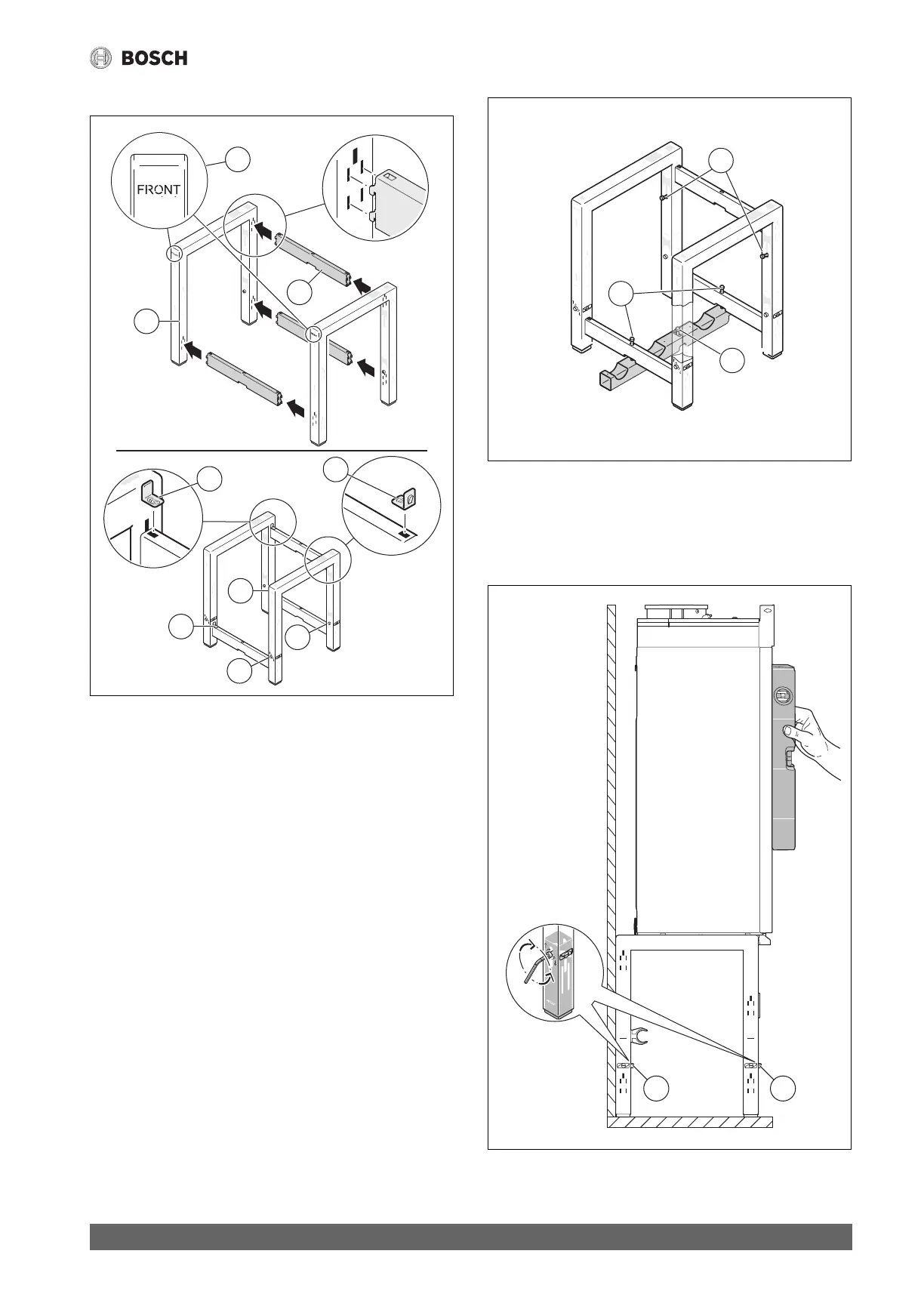

Fig. 8 Installing the frame
[1] Cross bar
[2] Stand
[3] Angle
[4] Marking
▶ Fasten the brackets [1] to the frame.
▶ Fasten the brackets to the floor [3].
-or-
▶ Fasten the frame to the wall [2].
▶ As the boiler subsequently needs to be adjusted, do not fully tighten
the screw.
Fig. 9 Secure the frame to the wall or floor
▶ Push the boiler onto the frame.
The boiler is secured to the frame at the rear. If it has been secured
correctly a "click" will be audible.
▶ Align the boiler in the frame using the adjustment option. [1].
▶ Fully tighten the grub screw in the frame.
Fig. 10 Align the boiler on the frame
0010033904-001
3
3
3
3
3
3
1
2
4
0010039423-001
1
2
3
0010030947-001
1 1
