2.11 Minimum clearance
With a horizontal flue outlet, make sure the electronic components
inside the boiler at the top remain accessible when placing an elbow
directly on the flue outlet adapter.
▶ After fitting the flue bend, check whether the upper panel of the
appliance is easy to remove (§ 7.2, p. 18).
▶ There must be a clearance of at least 100 mm directly above the flue
bend at the boiler.

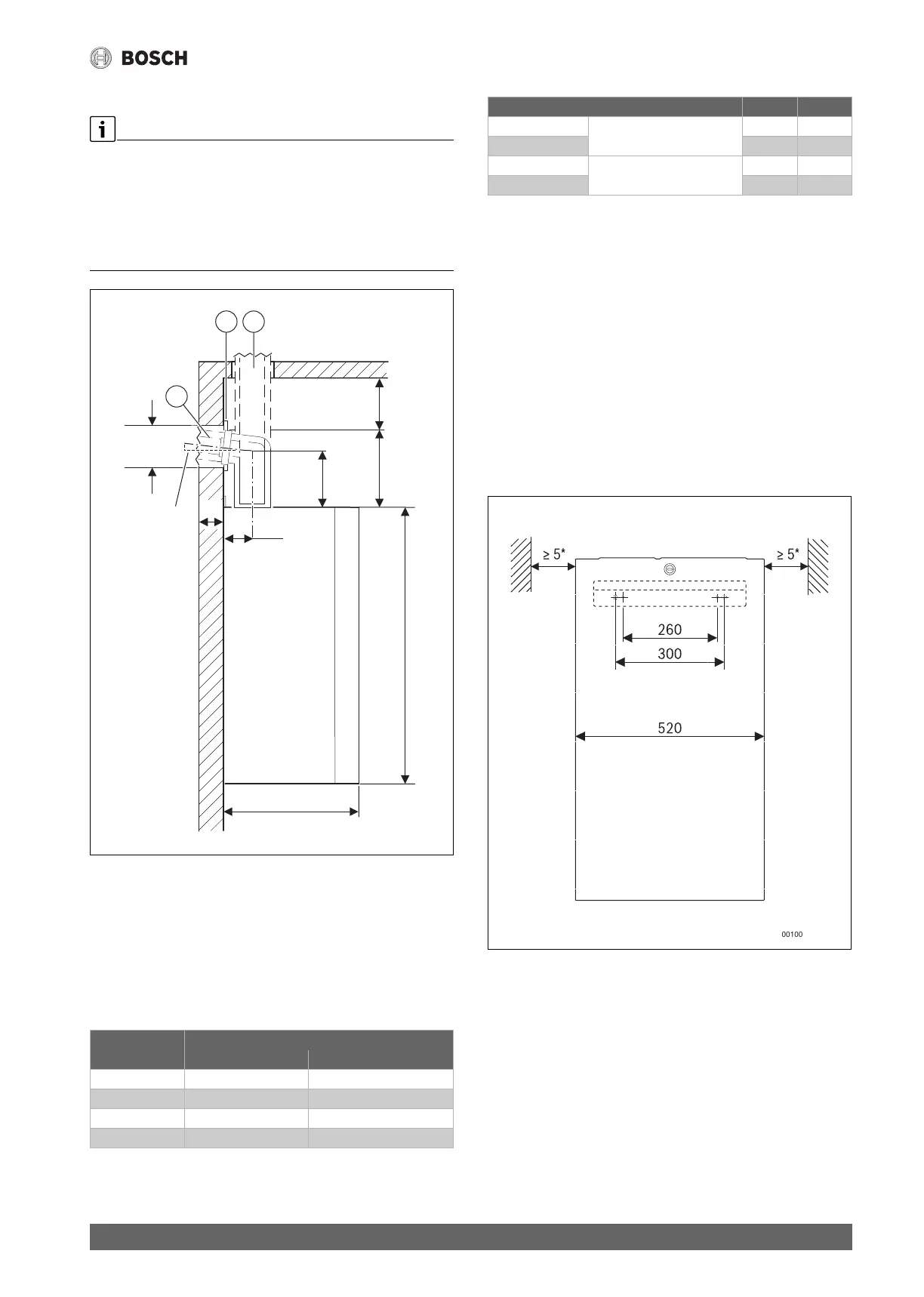

Fig. 4 Side view [mm]
[1] Horizontal flue outlet
[2] Collar
[3] Vertical flue outlet
A Clearance from top of the boiler - center of hole
B Clearance from top of the boiler - upper side of hole
C Depth of the boiler - 587,5 mm
K Diameter of hole
S Wall thickness
Table 2 Diameter of core drilled hole K
Table 3 Clearance A and B depending on flue outlet
Calculate the minimum clearance above the boiler.
▶ Add dimension B from Table 3 to the height of the top of the boiler.
▶ With a horizontal flue outlet:
– Add 52 mm to dimension B for every meter of horizontal flue
outlet.
– In this case also take the diameter of the collar into consideration.
▶ With a vertical flue outlet:
– Maintain a clearance of at least 100 mm above the boiler to allow
the electronic components to be accessed and worked on.
Minimum space required for the boiler.
▶ Provide an unobstructed space of at least 100 cm for the boiler to
allow maintenance and other work to be carried out.
Minimum space required next to the boiler.
▶ Maintain an area of at least 5 mm on the either side of the boiler.
Fig. 5 Front view [mm]
2.12 Flue gas temperature sensor
The boiler is manufactured with a flue outlet sensor as standard ( Fig.
1, p. 6).
The flue gas temperature sensor protects the boiler and flue system from
high flue gas temperatures by reducing the boiler load (downward
modulation).
Wall thickness S K [mm] for Ø flue outlet [mm]
Ø 110/160 Ø110
15 - 24 cm 190 140
24 - 33 cm 195 145
33 - 42 cm 200 150
42 - 50 cm 205 155
0010040879-001
3
2
1
≥100
A
B
1120
C
S
K
(52 mm/1 m)
5,2 %
136
Flue exhaust A [mm] B [mm]
Ø 110 mm Connection adapter with
elbow, horizontal flue outlet.
165 A + 0.5*K
Ø 110/160 mm 179 A + 0.5*K
Ø 110 mm Connection adapter, vertical
flue outlet
-0
Ø 110/160 mm - 0
0010033512-001
≥ 5* ≥ 5*
520
260
300
