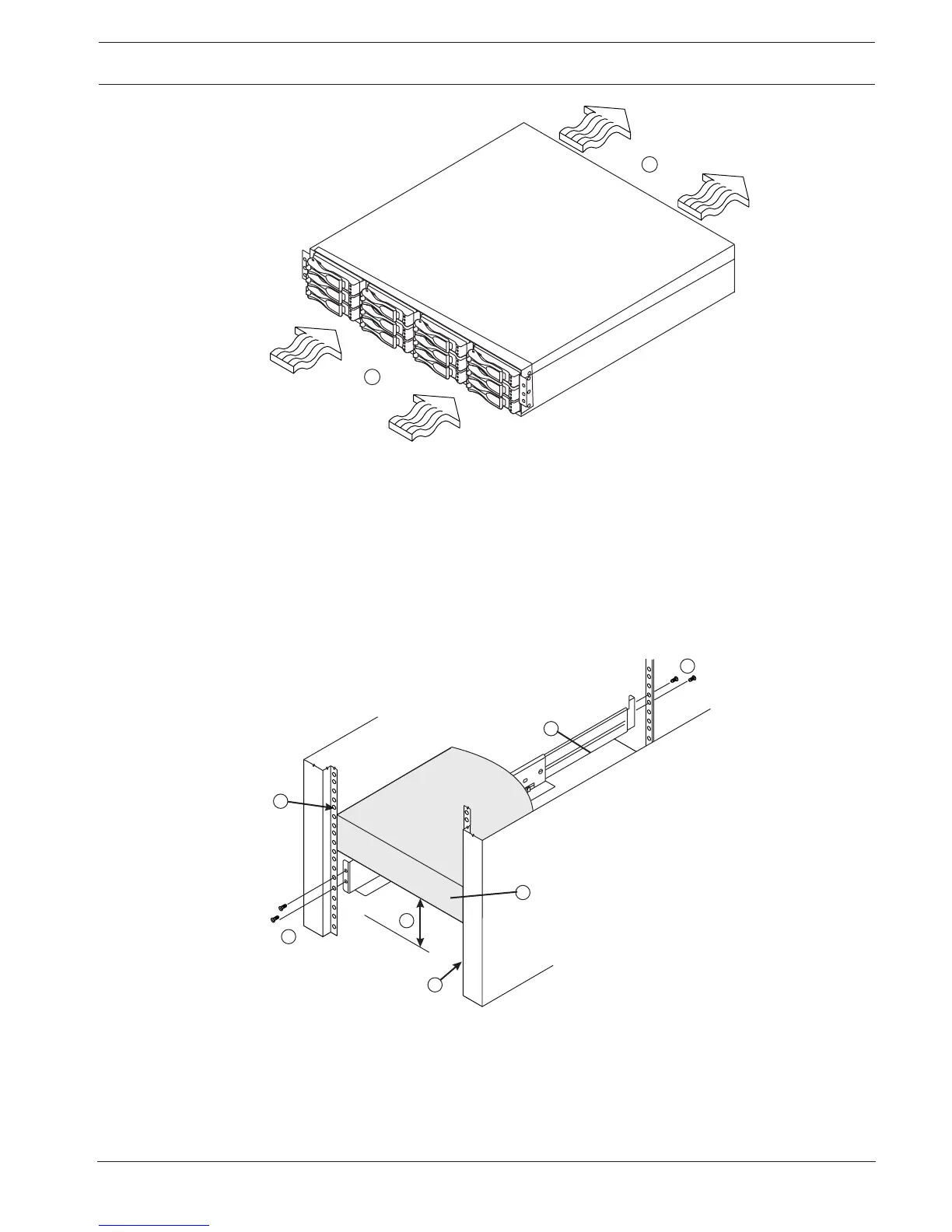

1 - 76 cm (30 in.) clearance in front of the cabinet
2 - 61 cm (24 in.) clearance behind the cabinet
2. Lower the feet on the cabinet, if required, to keep it from moving.
3. Remove the controller-drive tray and all contents from the shipping carton.
4. Install the mounting rails in the cabinet. For more information, refer to the installation
instructions that are included with your mounting rails.
– If you are installing the mounting rails above an existing tray, position the mounting
rails directly above the existing tray.
– If you are installing the mounting rails below an existing tray, allow 8.7-cm (3.4-in.)
vertical clearance.
1.
2.
1.
2.
2
3
4
5
78039-02
1
4
3
1 - Mounting rail
2 - Existing tray
3 - Clearance above and below the existing tray
4 - Screws for securing the mounting rail to the cabinet (front and rear)
5 - Industry standard cabinet
