7.4 Procedure – connecting the controller-drive tray to the
expansion drive trays
The DSAE‑Series expansion drive trays are shipped with the appropriate number of SAS
cables.

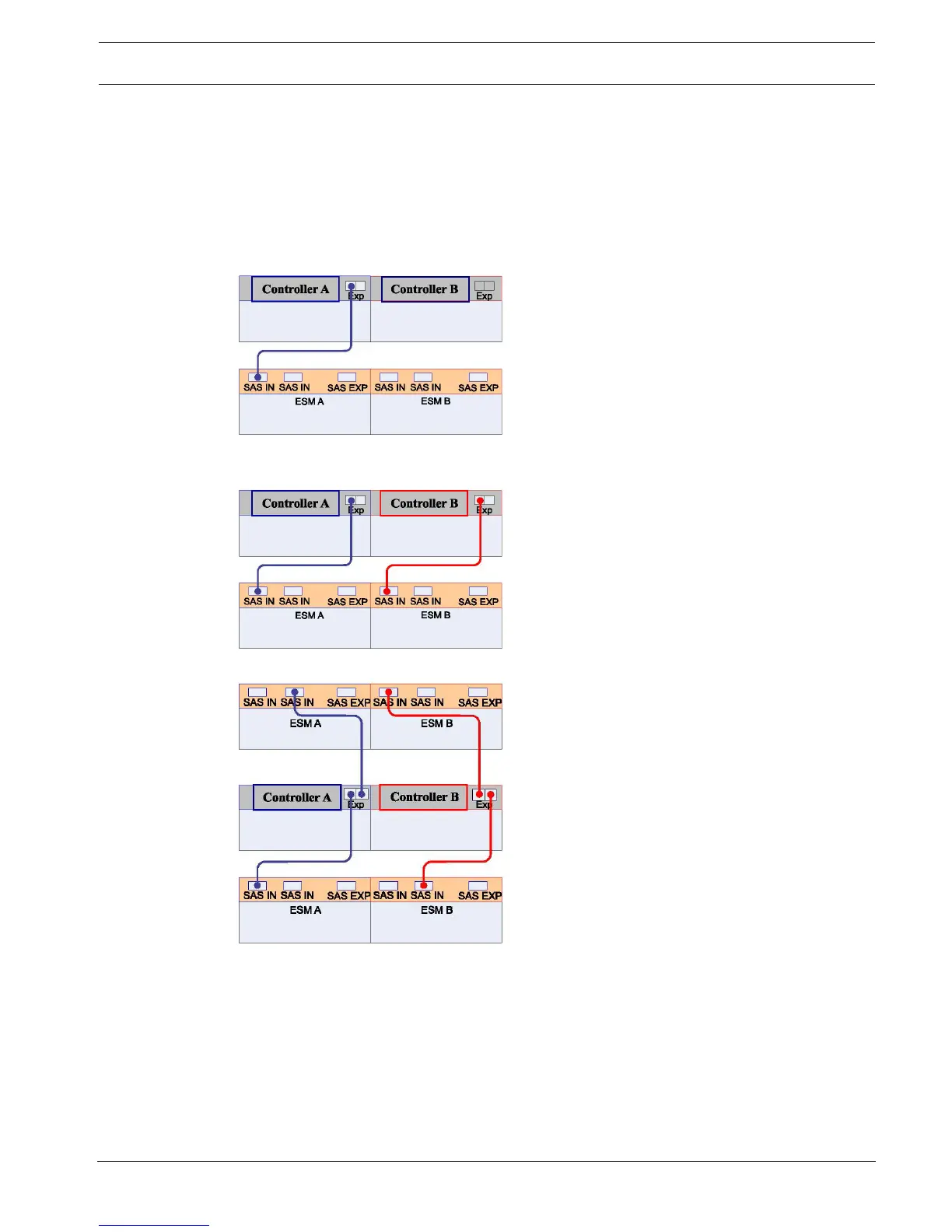

The following figures show valid host-to--controller-drive tray configurations when using an
E2700 controller- drive tray.
One expansion drive tray (simplex controller configuration)
One expansion drive tray (dual simplex controller configuration)
(recommended cabling for maximum throughput)
Two expansion drive trays (dual simplex controller configuration)
