30 en | Connecting the E2700 controller-drive tray to the hosts DSA E-Series (E2700)
2015.10 | V2 | DOC Installation manual Bosch Sicherheitssysteme GmbH

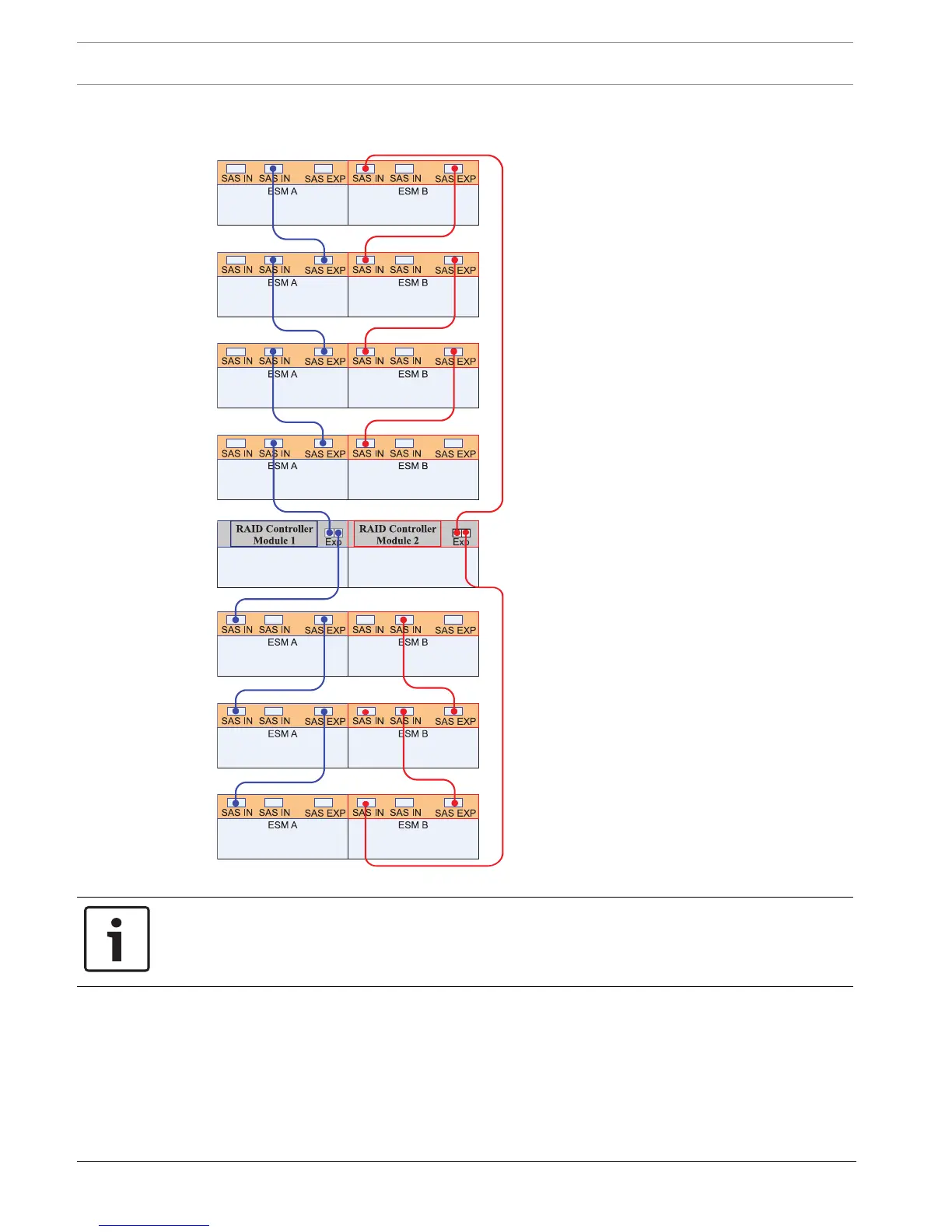

Maximum expansion (dual simplex controller configuration)
Example: for DE1600 (only 3expansions for DE6600)
Notice!
You can connect the E2700 controller-drive tray to a maximum of 7DE1600 expansion drive
trays or to a maximum of 3DE6600 expansion drive trays. No mixed configurations expansion
drive trays are allowed.
To connect the components:
1. Plug either the SAS cable or copper cables into the controller.
2. Plug the cable either into an HBA in the host (direct topology) or into a switch (fabric
topology).
3. Affix a label to each end of the cable with the relevant information. A label is very
important if you need to disconnect cables to service a controller. Include this
information on the labels:
To Next Page
