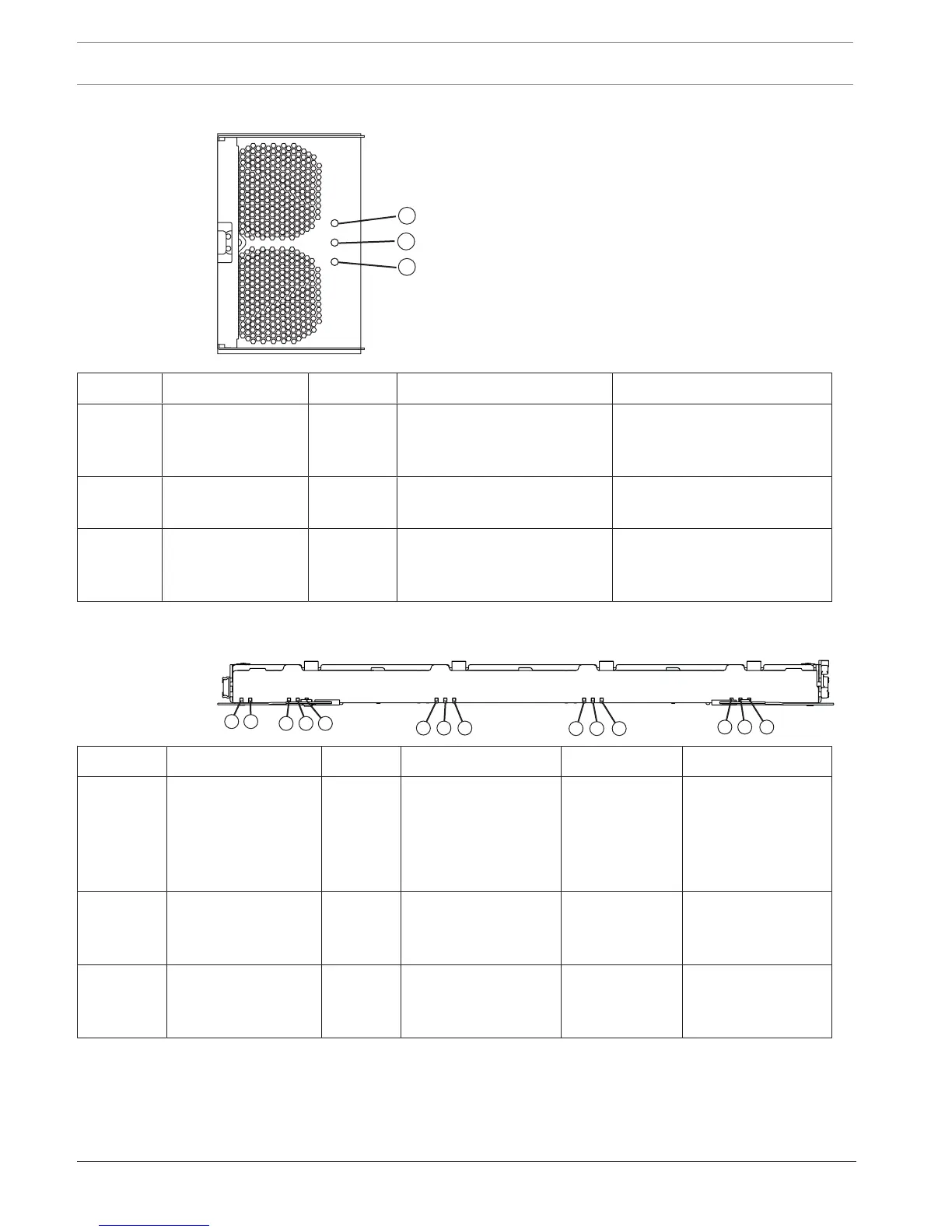

LEDs on the fan canister
92006-00
1
2
3
Location LED Color On Off
1 Fan power Green Power from the fan canister is
available.
Power to the fan customer-
replaceable unit (CRU) is not
available.
2 Fan service action
required
Amber A fault exists within the fan
canister.
Normal status.
3 Fan service action
allowed
Blue The fan canister can be
removed safely from the drive
tray.
The fan canister cannot be
removed safely from the drive
tray.
12.6 LEDs on the DE6600 drive drawers
92034-03
2
5
1
3 4
11
12 13 14
87
9 10
6
Location LED Color On Blinking Off
1 Drive or drawer
service action
allowed
Blue The drive canister can
be removed safely
from the drive drawer
in the drive tray.
The drive canister
cannot be removed
safely from the drive
drawer in the drive
tray.
2 Drive or drawer
service action
required
Amber An error has occurred. Normal status.
3–14 Drive activity for
drives1 through 12
in the drive drawer
Green The power is turned
on, and the drive is
operating normally.
Drive I/O
activity is taking
place.
The power is turned
off.
