DSA E-Series (E2700) Turning on the power and checking for problems in an E2700 controller-drive tray configuration | en 65
Bosch Sicherheitssysteme GmbH Installation manual 2015.10 | V2 | DOC
9 ESM service action
allowed
Blue The ESM can be removed
safely from the drive tray.
The ESM cannot be removed
safely from the drive tray.
10 ESM service action
required
Amber A fault exists within the ESM.
(This LED defaults on at
power up. This LED turns off
after the software has
completed its power up self-
test sequence.)
Normal status.
11 ESM power Green 12V power to the ESM is
present.
Power is not present to the
ESM.
12 Seven-segment tray
ID
Green See Things to know – seven-
segment display for the ESMs
on the drive trays, page 74.
Not applicable.

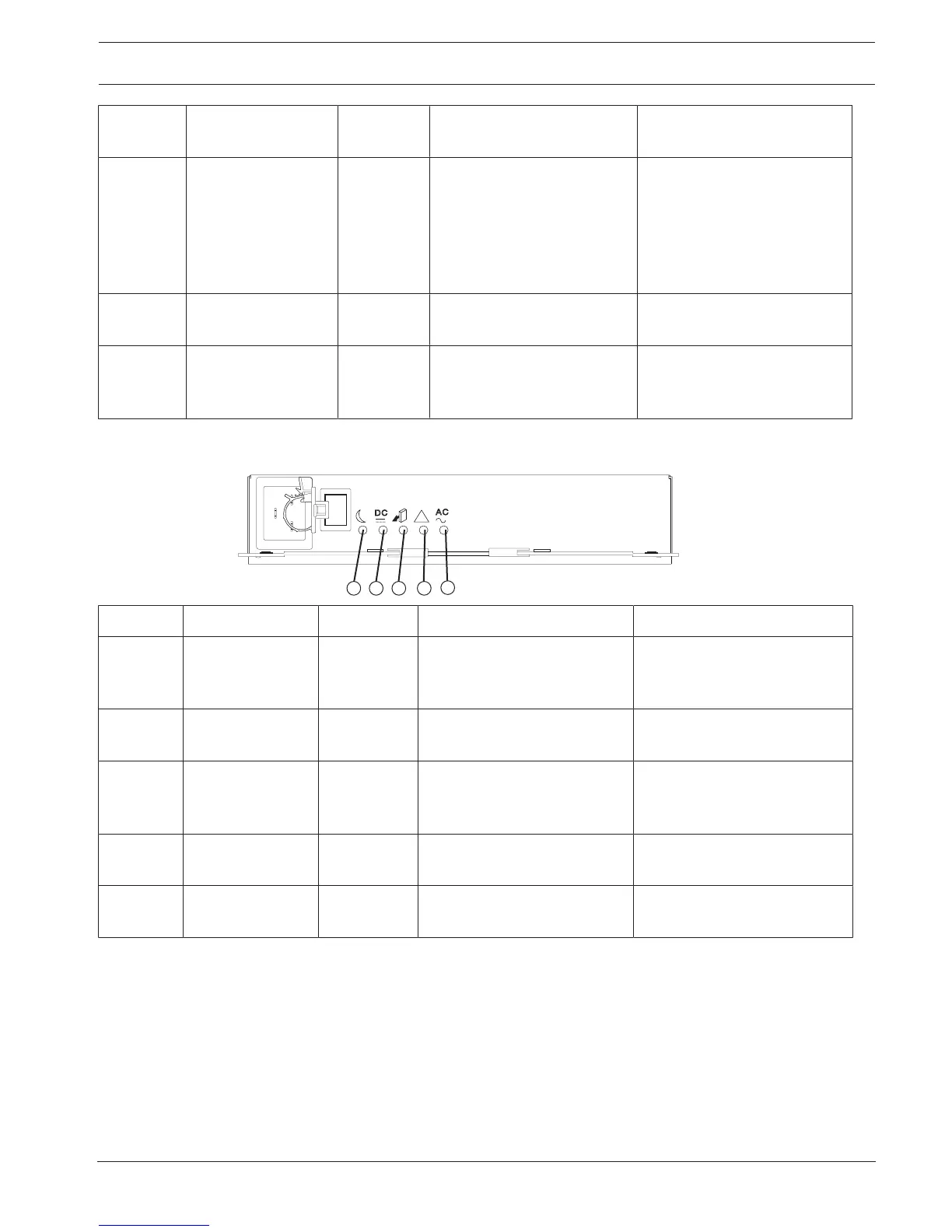

LEDs on the AC power canister
92025-01
AC
DC
!
1 2 3 4
5
Location LED Color On Off
1 Power standby
power
Green The drive tray is in Standby
mode and DC power is not
available.
The drive tray is not in Standby
mode and DC power is
available.
2 Power DC power Green DC power from the power
canister is available.
DC power from the power
canister is not available.
3 Power service
action allowed
Blue The power canister can be
removed safely from the drive
tray.
The power canister cannot be
removed safely from the drive
tray.
4 Power service
action required
Amber A fault exists within the power
canister.
Normal status.
5 Power AC power Green AC power to the power
canister is present.
AC power to the power
canisteris not present.
