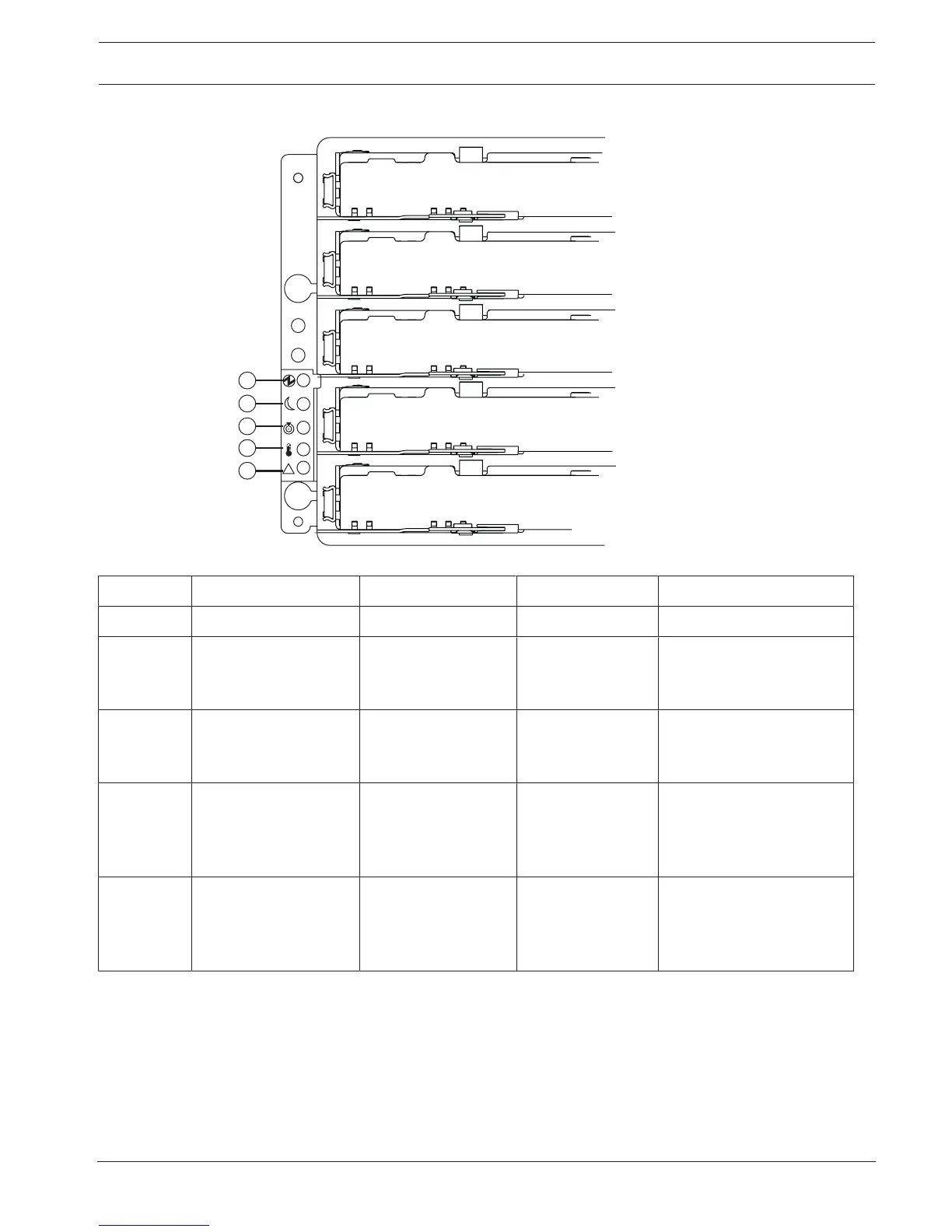

12.5 Things to know –LEDs on the DE6600 drive tray
92034-09
!
1
2
3
4
5
Location LED Color On Off
1 Drive tray power Green Power is present. Power is not present.
2 Drive tray standby
power
Green The drive tray is in
Standby Power
mode.
The drive tray is not in
Standby Power mode.
3 Drive tray locate White Identifies a drive
tray that you are
trying to find.
Normal status.
4 Drive tray over-
temperature
Amber The temperature of
the drive tray has
reached an unsafe
level.
Normal status.
5 Drive tray service
action required
Amber A component
within the drive
tray needs
attention.
Normal status.
