32 en | Connecting the E2700 controller-drive tray to the hosts DSA E-Series (E2700)
2015.10 | V2 | DOC Installation manual Bosch Sicherheitssysteme GmbH
1
5
2
6
3
7
4

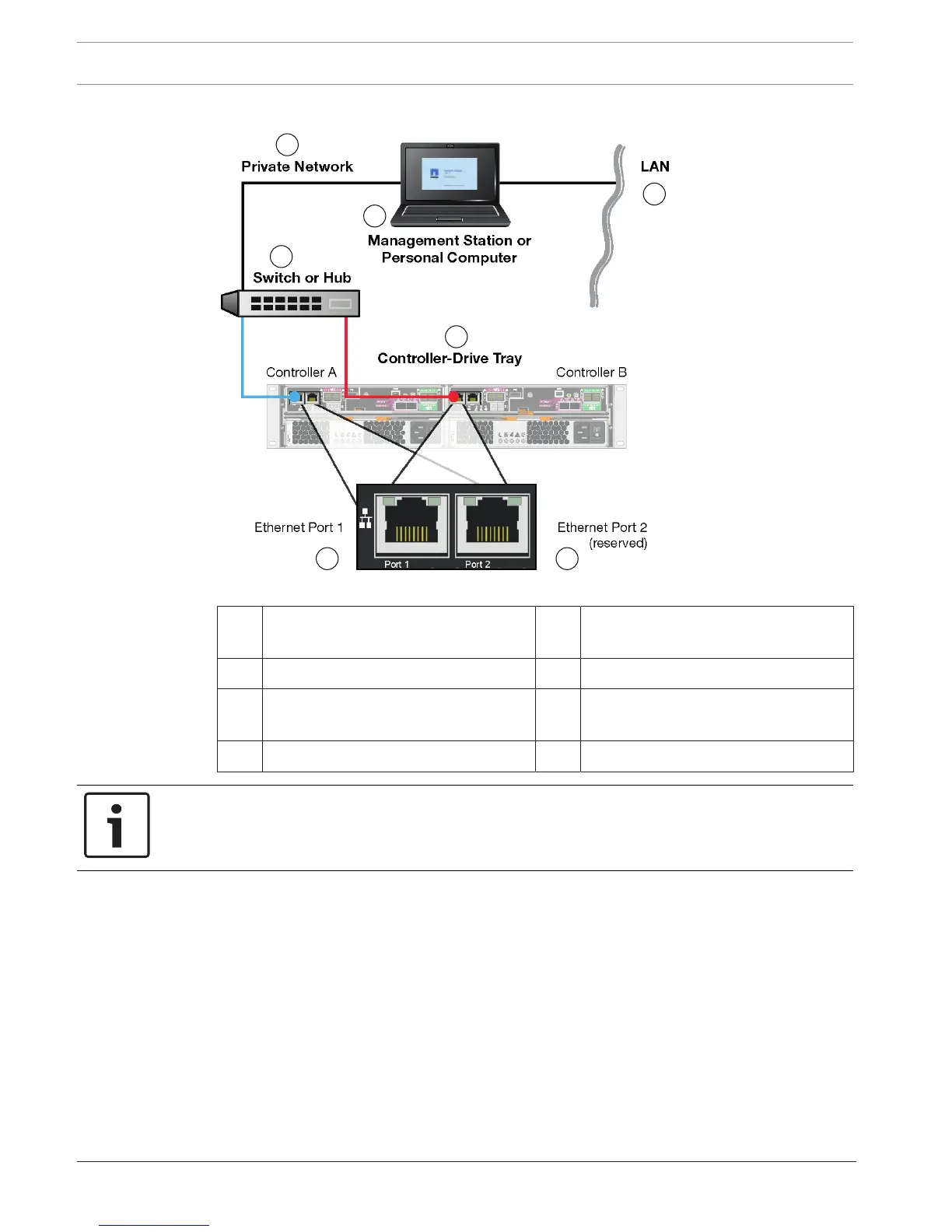

Figure7.1: Connect to management host
1 Private network 2 Management station or personal
computer
3 Local Area Network (LAN) 4 Switch or hub
5 Controller-drive tray with ControllerA
and ControllerB
6 Ethernet Port 1
7 Ethernet Port 2 (reserved)
Notice!
Ethernet port 2 should be reserved for maintenance operations if your hardware contains a
second Ethernet port.
